2
3
4-10
11-17
:
€
till
I
18-24
25
26
.
'Towo
S82304

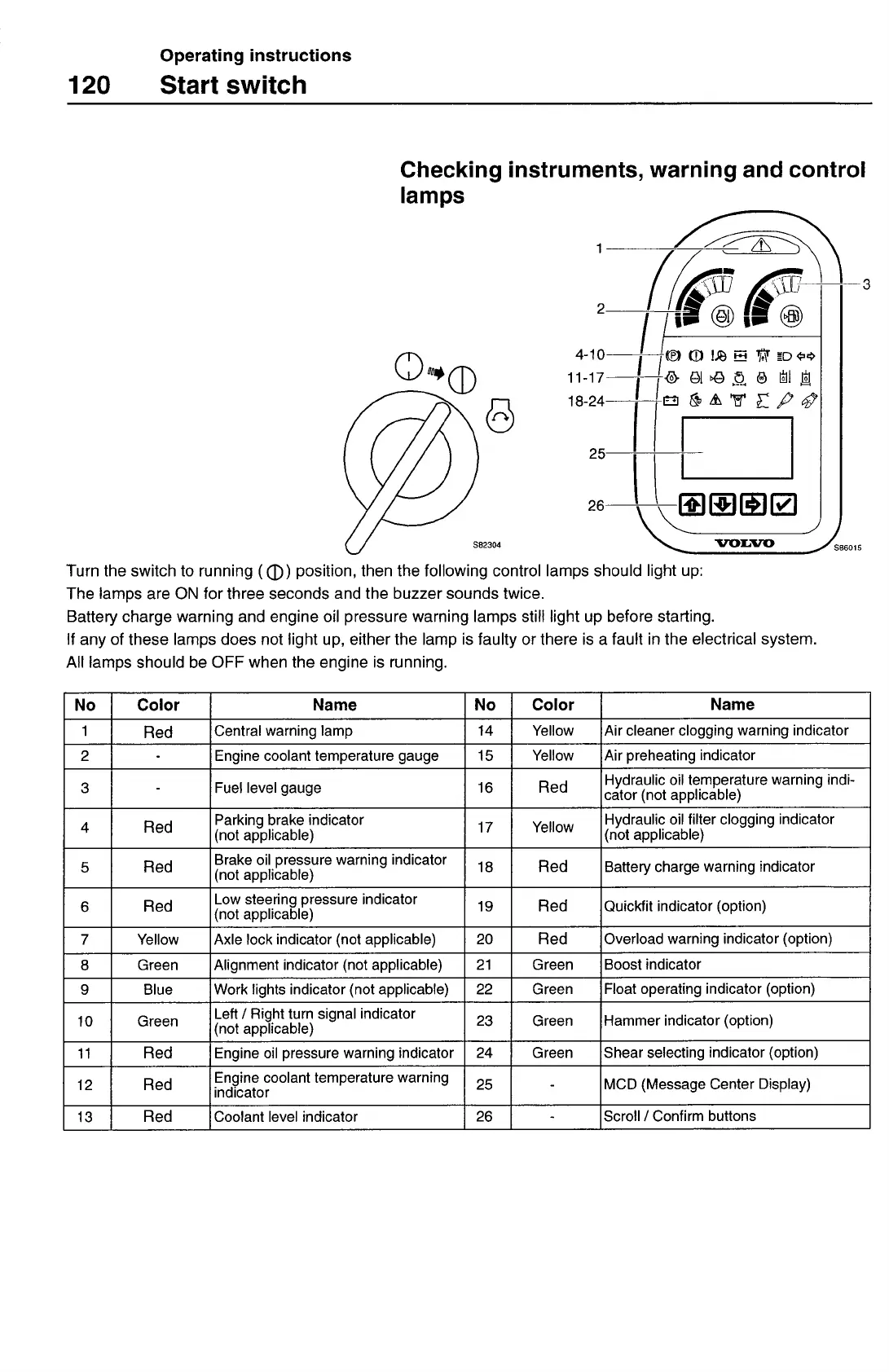

Operating instructions
120
Start switch
Checking instruments, warning and control
lamps
Turn the switch to running (Q) position, then the following control lamps should light up:
The lamps are ON for three seconds and the buzzer sounds twice.
Battery charge warning and engine oil pressure warning lamps still light up before starting.
If any of these lamps does not light up, either the lamp is faulty or there is a fault in the electrical system.
All lamps should be OFF when the engine is running.
No
Color
Name
No
Color
Name
1
Red
Central warning lamp
14
Yellow
Air cleaner clogging warning indicator
2
-
Engine coolant temperature gauge
15
Yellow
Air preheating indicator
3
-
Fuel level gauge
16
Red
Hydraulic oil temperature warning indi-
cator (not applicable)
4
Red
Parking brake indicator
(not applicable)
17
Yellow
Hydraulic oil filter clogging indicator
(not applicable)
5
Red
Brake oil pressure warning indicator
(not applicable)
18
Red
Battery charge warning indicator
6
Red
Low steering pressure indicator
(not applicable)
19
Red
Quickfit indicator (option)
7
Yellow
Axle lock indicator (not applicable)
20
Red
Overload warning indicator (option)
8
Green
Alignment indicator (not applicable)
21
Green
Boost indicator
9
Blue
Work lights indicator (not applicable)
22
Green
Float operating indicator (option)
10
Green
Left! Right turn signal indicator
(not applicable)
23
Green
Hammer indicator (option)
11
Red
Engine oil pressure warning indicator
24
Green
Shear selecting indicator (option)
12
Red
Engine coolant temperature warning
indicator
25
-
MCD (Message Center Display)
13
Red
Coolant level indicator
26
-
Scroll ! Confirm buttons
