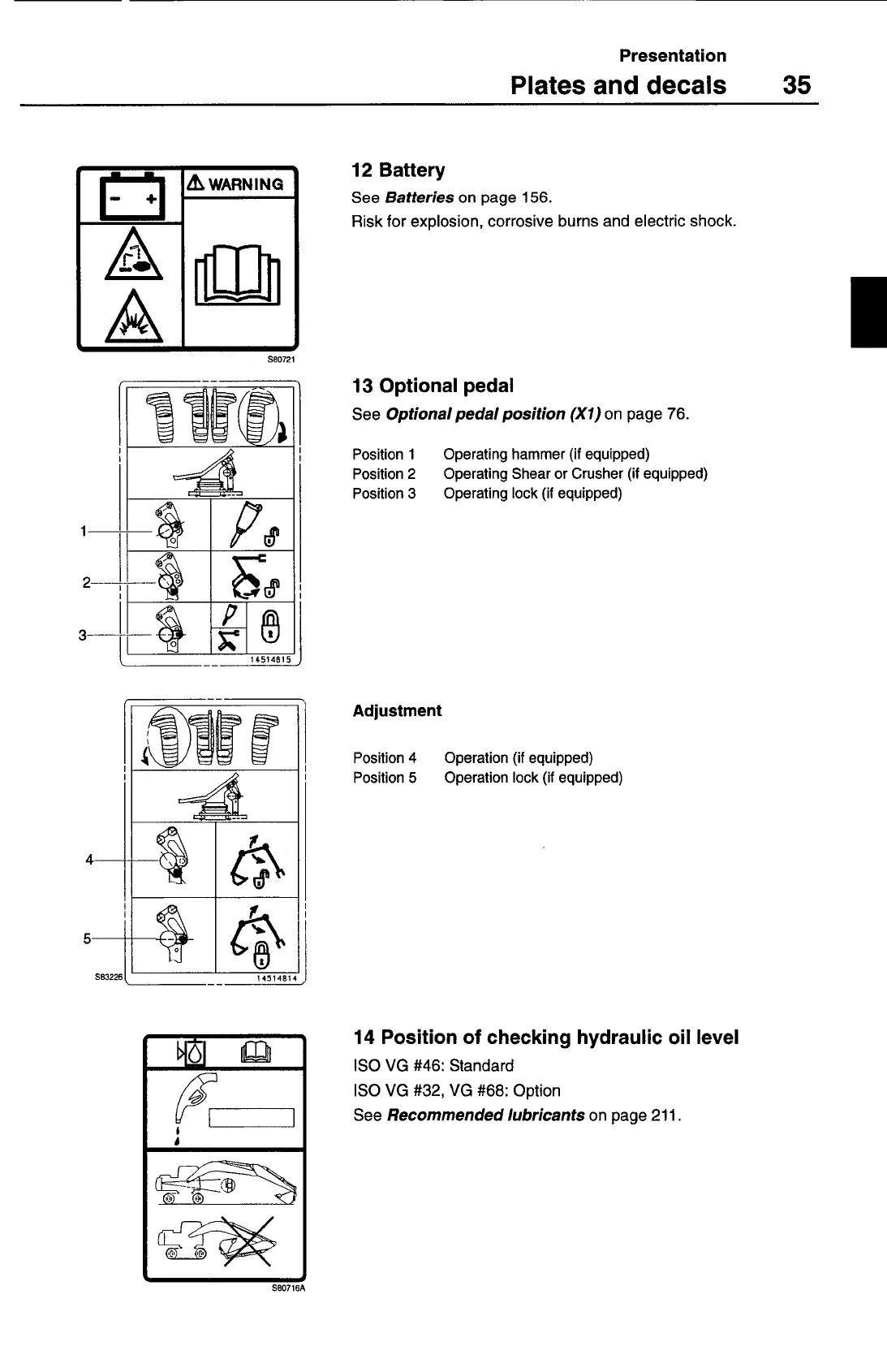

Presentation
Plates and decals
35
-
+
Lt
WARNING
£
I'
S80716A
12 Battery
See
Batteries
on
page 156.
Risk for explosion, corrosive burns and electric shock.
13 Optional pedal
See
Optional pedal position (Xl)
on page 76.
Position 1
Operating hammer (if equipped)
Position 2
Operating Shear or Crusher (if equipped)
Position 3
Operating lock (if equipped)
Adjustment
Position 4
Operation (if equipped)
Position 5
Operation lock (if equipped)
14 Position of checking hydraulic oil level
ISO VG #46:
Standard
ISO VG #32, VG #68:
Option
See
Recommended lubricants
on
page
211.
