S83360
S83362

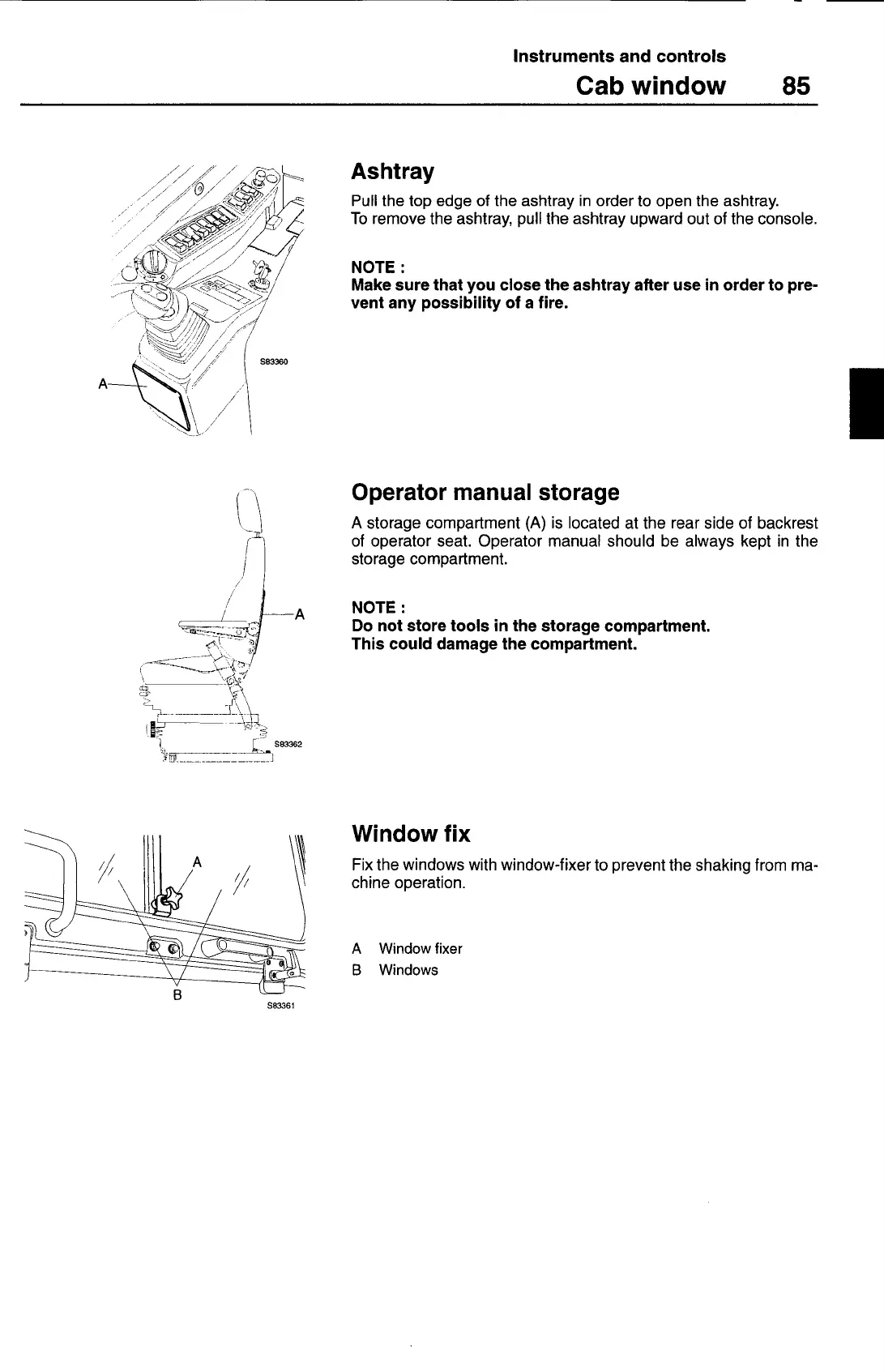

Instruments
and controls
Cab window
85
Ashtray
Pull the top edge of the ashtray in order to open the ashtray.
To remove the ashtray, pull the ashtray upward out of the console.
NOTE:
Make sure that you close the ashtray after use in order to pre-
vent any possibility of a fire.
Operator manual storage
A storage compartment (A) is located at the rear side of backrest
of operator seat. Operator manual should be always kept in the
storage compartment.
NOTE:
Do not store tools in the storage compartment.
This could damage the compartment.
Window fix
Fix the windows with window-fixer to prevent the shaking from ma-
chine operation.
A
Window fixer
B Windows
S83361
