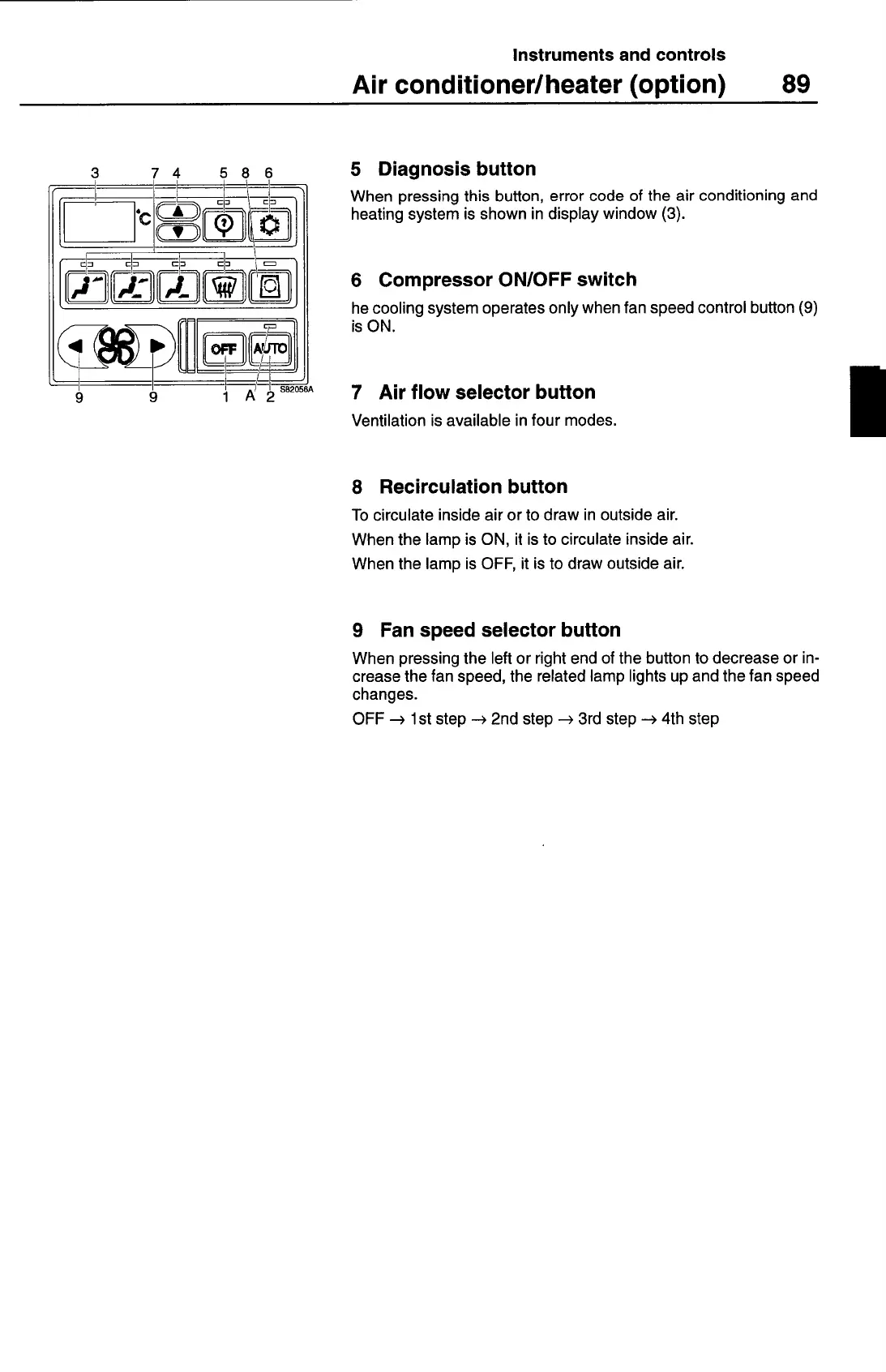

Instruments
and controls
Air conditioner/heater (option)
89
5 Diagnosis button
When pressing this button, error code of the air conditioning and
heating system is shown in display window (3).
6 Compressor ON/OFF switch
he cooling system operates only when fan speed control button (9)
is ON.
7 Air flow selector button
Ventilation is available in four modes.
8 Recirculation button
To circulate inside air or to draw in outside air.
When the lamp is ON, it is to circulate inside air.
When the lamp is OFF, it is to draw outside air.
9 Fan speed selector button
When pressing the left or right end of the button to decrease or in-
crease the fan speed, the related lamp lights up and the fan speed
changes.
OFF —* 1st step — 2nd step — 3rd step - 4th step
