Operating machine
Operating attachment
Left operating lever
This lever controls swing and arm.
Right operating lever
This lever controls boom and bucket.
WARNING!
While auto idling, if an operating lever is operated, the
engine speed returns to its original speed.

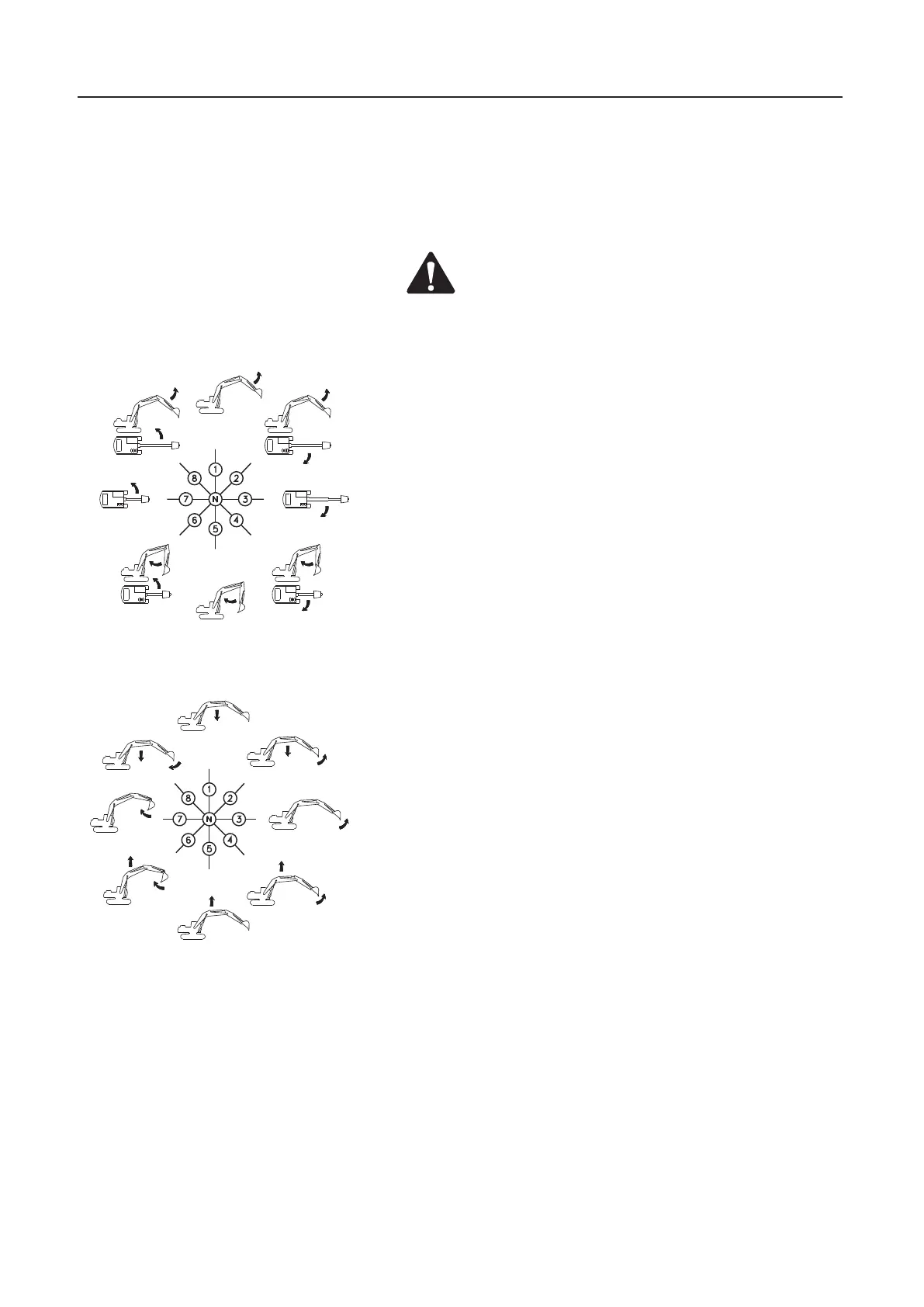

N
1
2
3
4
5
6
7
8
Neutral (upper frame and arm are maintained at rest position.)
Arm out
Arm out and right swing
Right swing
Arm in and right swing
Arm in
Arm in and left swing
Left swing
Arm out and left swing
N
1
2
3
4
5
6
7
8
Neutral (boom and bucket are maintained at rest position.)
Boom lower
Boom lower and bucket out
Bucket out
Boom raise and bucket out
Boom raise
Boom raise and bucket in
Bucket in
Boom lower and bucket in
S80232
S80233
