Volvo EC330B - Hydraulic Quickfit (S1) (Option); Adjustment Attachment

Operating instructions
Hydraulic quickfit (s1) (option) 89
VOE 2134355130
Adjustment attachment
1 Remove any shims between screw holder (D) and the mating
plates.
2 Hook the bucket on and lock it in accordance with the instruc-
tions for installing a bucket.
IMPORTANT
Check whether spacer and shim are fitted correctly.
3 Check locking wedge (C) position and the way the quickfit
butts up against the mating plates.
4 Calculate any adjustment to the plate shims as follows:
– Remove the bucket in accordance with the instructions for
removing a bucket.
– Fit the requisite number of shims beneath the mating
plates.
Fit thicker shims, if the locking wedge goes too far into the
hook.
Fit thinner shims, if the locking wedge does not go far
enough into the hook.
– Install the bucket.
– Check that the locking wedge position is in accordance
with the specified tolerances.
– Measure, and install the requisite number of shims be-
tween the screw holder and the mating plates.

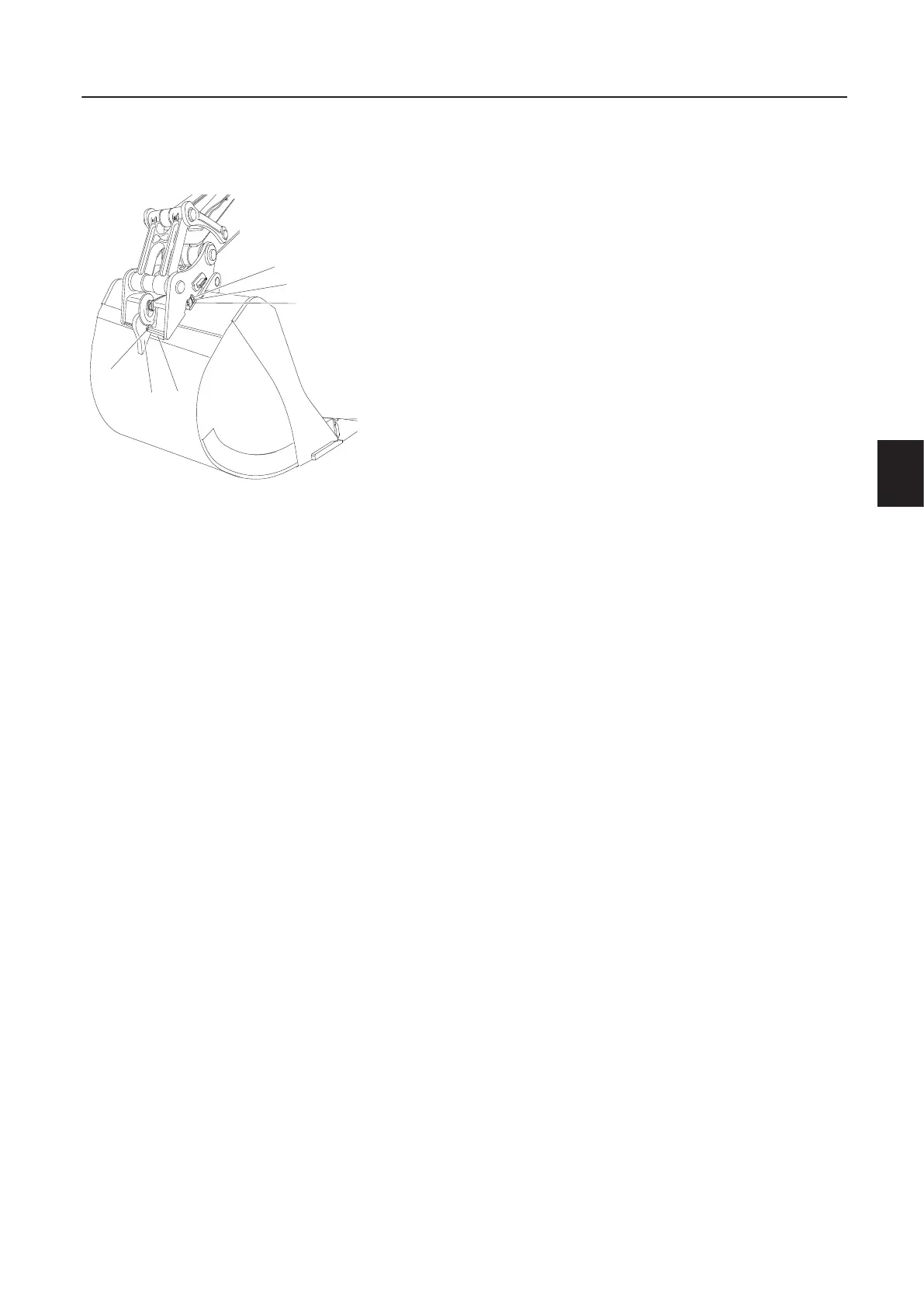

A: Shims
B: Bucket hook
C: Locking wedge
D: Screw holder
E: Spacer
F: Attachment bracket
S82329
A
C
B
F
D
E
