Operating instructions
Operating machine 99
VOE 2134355130

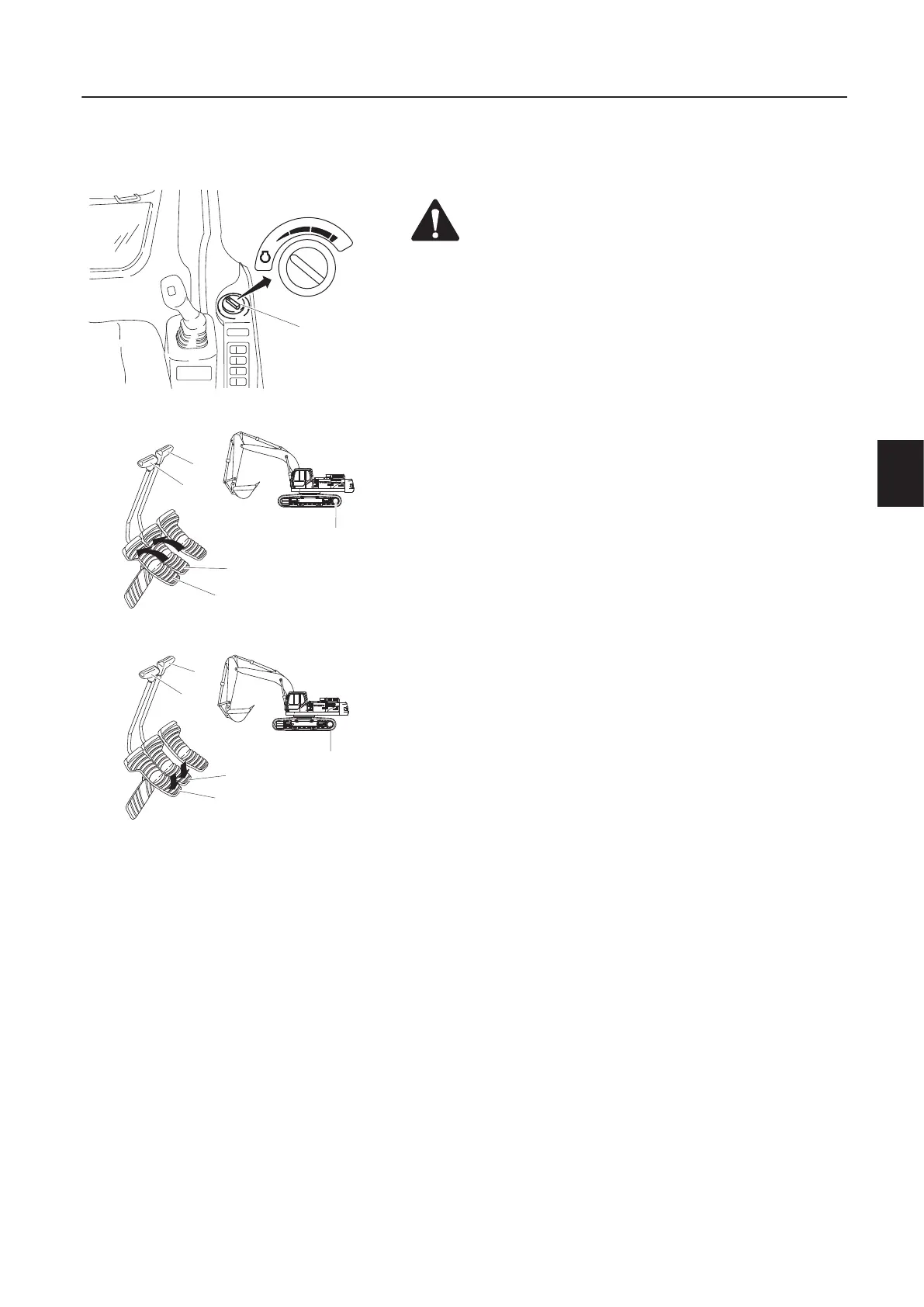

Travel direction control
Forward travel
1 Turn engine speed selection switch (A) to the high position to
increase engine speed.
2 When sprocket (B) is at the rear of the machine, push lever (C
and D) forward slowly or press the front of pedal (E and F)
slowly.
When sprocket (B) is at the front of the machine, pull lever (C
and D) backward slowly or press the rear of pedal (E and F)
slowly.
Reverse travel
1 Turn engine speed selection switch (A) to the high position to
increase engine speed.
2 When sprocket (B) is at the rear of the machine, pull lever (C
and D) backward slowly or press the rear of pedal (E and F)
slowly.
When sprocket (B) is at the front of the machine, push lever (C
and D) forward slowly or press the front of pedal (E and F)
slowly.
WARNING!
Check the track direction before operating travel levers or
pedals. If the sprocket is at the front of the machine, travel
levers (pedals) must be operated in the opposite direction.
Do not change the travel direction rapidly. Especially, in
case of stationary direction change, stop the machine.
S80510A
H
G
F
I
rpm
A
S82128
B
D
C
E
F
S82129
B
D
C
F
E
