Instruments and controls
42 Description of instrument panel
VOE 2134355130

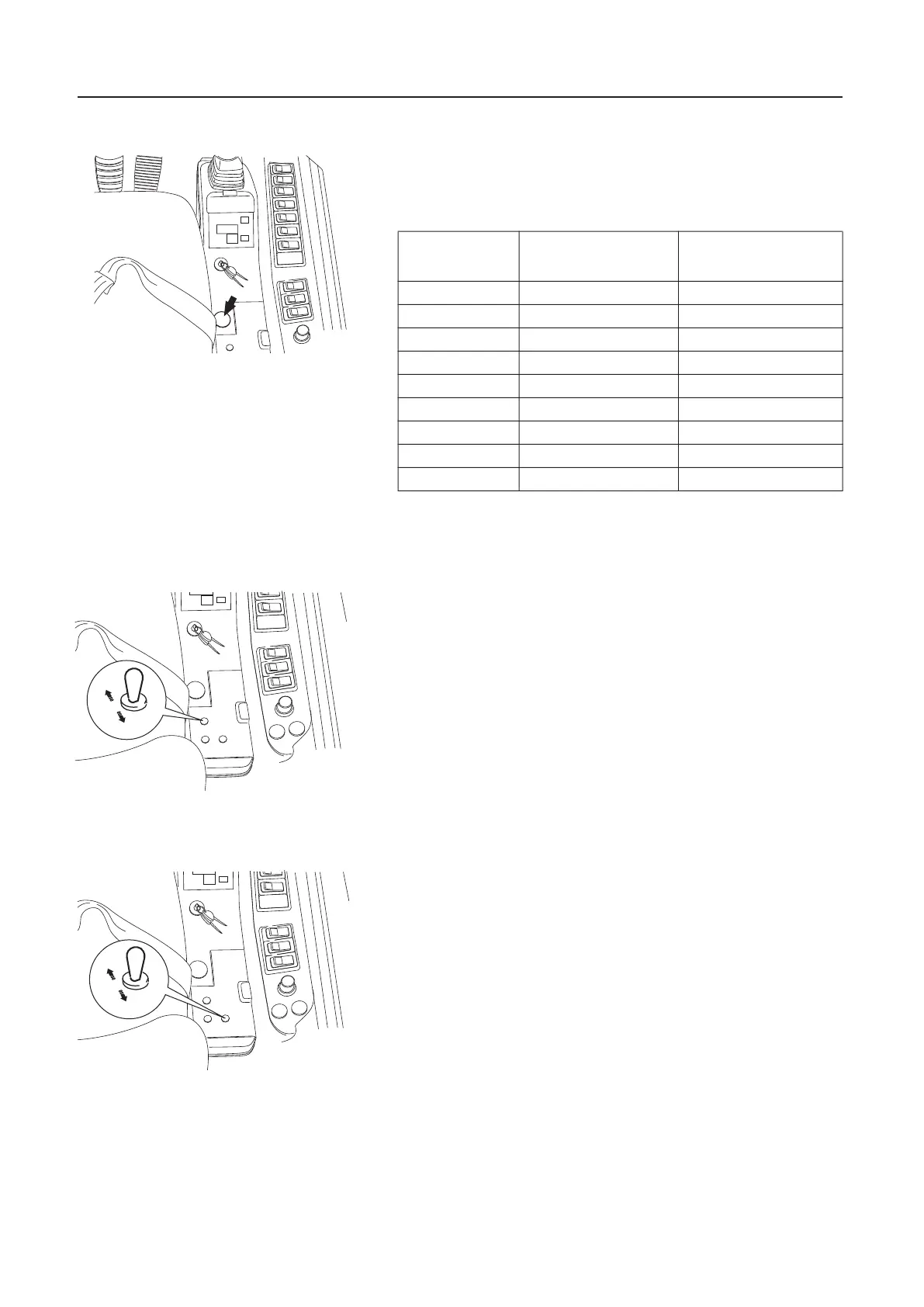

16 Flow control switch (option)
This switch is used to set pump flow while optional equipment like
a hammer or shear is operating (if equipped).
• Pump flow setting is at rated e ngine speed, one pump flow
control.
• This is changed in accordance with engine rpm.
17 One/two pump selecting switch (option)
This switch can be selected when the boost/hammer/shear switch
is set to hammer or shear.
Position 1 One pump activated
Position 2 Two pump activated
18 Emergency engine speed control switch
If the engine speed control switch on page 37 does not work, set
“Auto/Manual select switch” to Manual position and use this emer-
gency switch.
Position 0 Engine stop
(When the starting is not OFF, even though the start switch
is turned to OFF position)
If the switch is at this position for more than three seconds,
the engine will shut down.
Position 1 Idle speed
Engages idle I2 mode (no load)
Position 2 High speed
Engages H mode (no load) of engine speed,
Exception: G1 mode for North America.
Flow control
switch step
Pump flow setting
lpm (gallon)
Flow control
current (±10 mA)
9 275 (73) 300
8 250 (66) 360
7 220 (58) 390
6 190 (50) 420
5 160 (42) 450
4 130 (34) 480
3 100 (26) 510
2 70 (19) 545
1 40 (11) 600
S82059
S82063
2
1
S82064
2
0
1
