Service and maintenance
Electrical system 151
VOE 2134355130
Electrical distributio n box
General

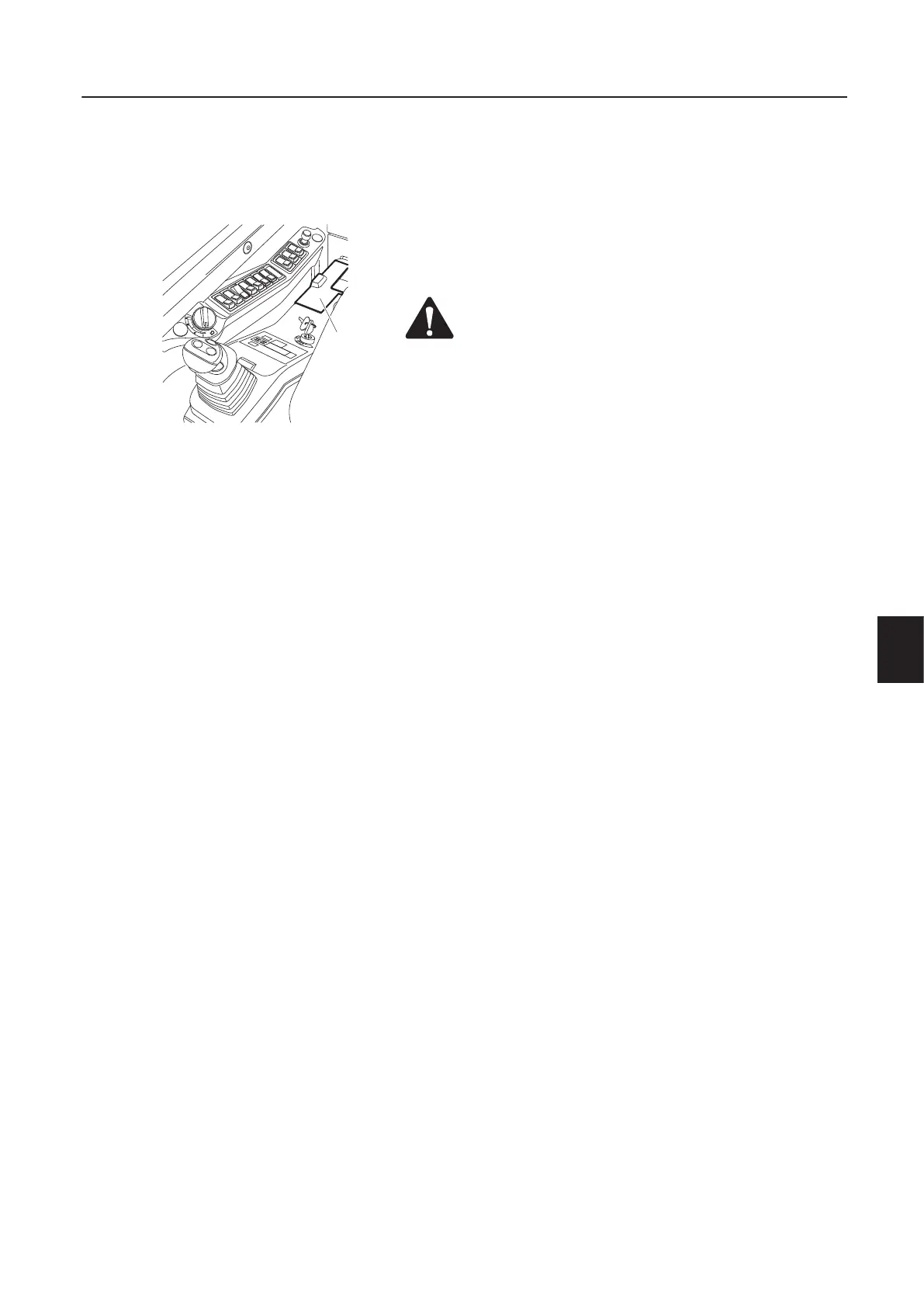

The machine has an electrical distribution box (A) installed to the
right of the operator seat. The electrical distribution box contains
most of the fuses and relays of the machine.
Fuses and relays positioned in the electrical distribution box are
easily accessible after the cover on the electrical distribution box
has been opened. The inside of the cover is provided with a decal
showing which appliance is connected to the respective fuses.
This is also shown in the figure below.
WARNING!
Never install a fuse w ith a higher ampere rating than that
stated on the decal (risk of damage or fire on the circuit
board).
If a fuse blows repeatedly in the same position, the cause of
the fault has to be investigated.
S82098
A
