Volvo EC330B - Page 154

Service and maintenance
152 Electrical system
VOE 2134355130

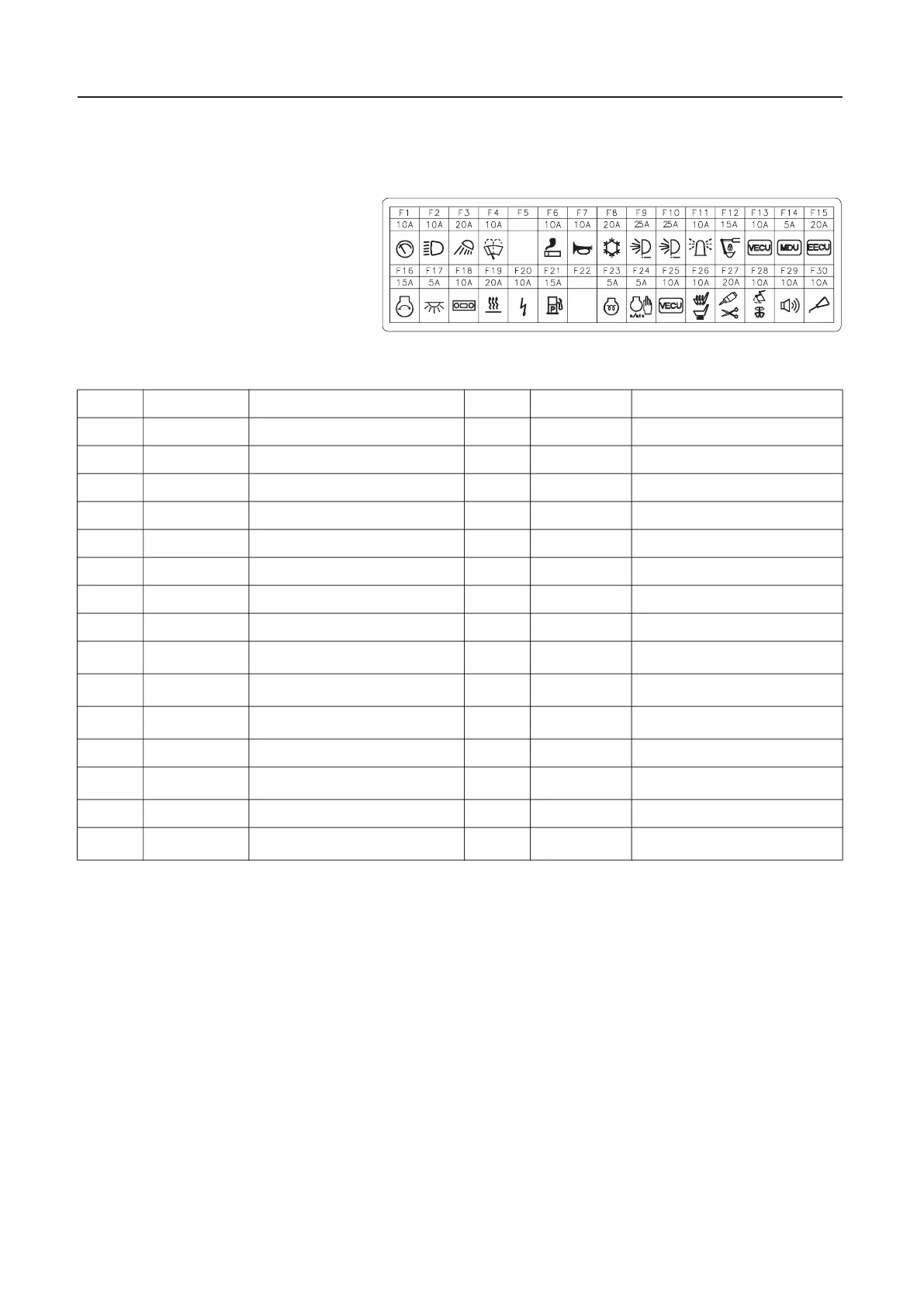

Fuse capacity and symbol related circuits
No. Capacity Appliance / circuit N o. Capacity Appliance / circuit
F1
10A Instrument panel
F16
15A Start switch
F2
10A Working lights (deck)
F17
5A Cab light
F3
20A Working lights (boom)
F18
10A Radio and cassette
F4
10A Wiper & washer
F19
20A Auxiliary heater
F5
--
F20
10A Power outlet
F6
10A Cigarette lighter
F21
15A Fuel filler pump
F7
10A Horn
F22
--
F8
20A Air conditioner
F23
--
F9
25A
Extra working lights
(rear, counterweight)
F24
5A Engine RPM manual control
F10
25A Extra working lights (front)
F25
10A
V-ECU (vehicle electronic
control unit)
F11
10A Rotating warning beacon
F26
10A
Seat heater &
Air suspension seat
F12
15A Safety solenoid
F27
20A Hammer, Booster, Shear
F13
10A
V-ECU (vehicle electronic con-
trol unit)
F28
10A
Quickfit,
Rotator solenoid valve
F14
5A Machine display unit
F29
10A Travel alarm
F15
20A
E-ECU(engine electronic con-
trol unit)
F30
10A Auto greasing
S82029
