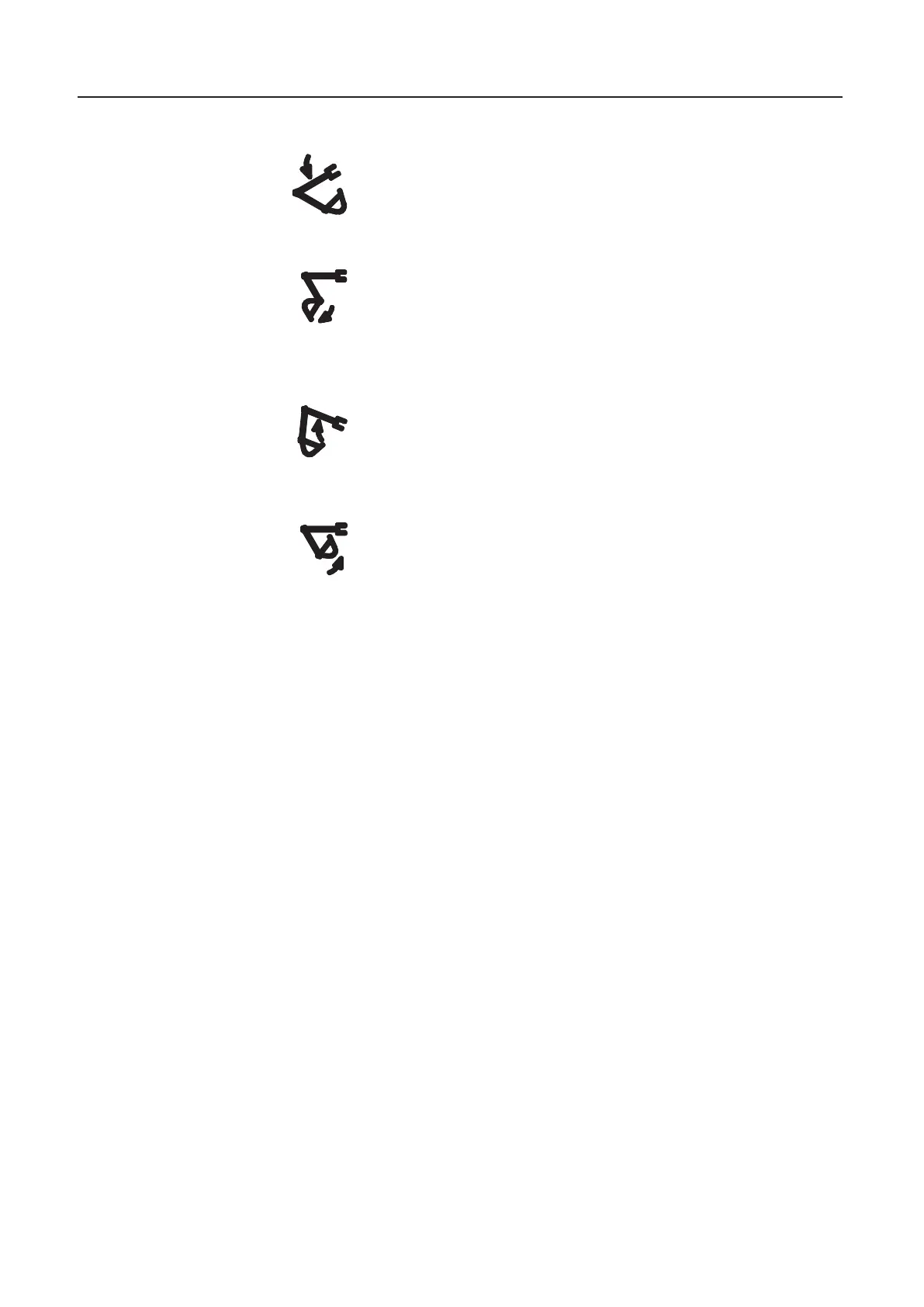

Boom Lower (5): Move the control lever to this position in order to
lower the boom.
Bucket Dump (6): Move the control lever to this position in order to
dump the bucket.
Boom Raise (7): Move the control lever to this position in order to
raise the boom.
Bucket Close (8): Move the control lever to this position in order to
close the bucket.
HOLD (9): When the control lever is released from any position,
the control lever will return to the HOLD position. Movement of the
superstructure will stop
Two functions may be performed at the same time by moving a
control lever diagonally.
