Operating instructions

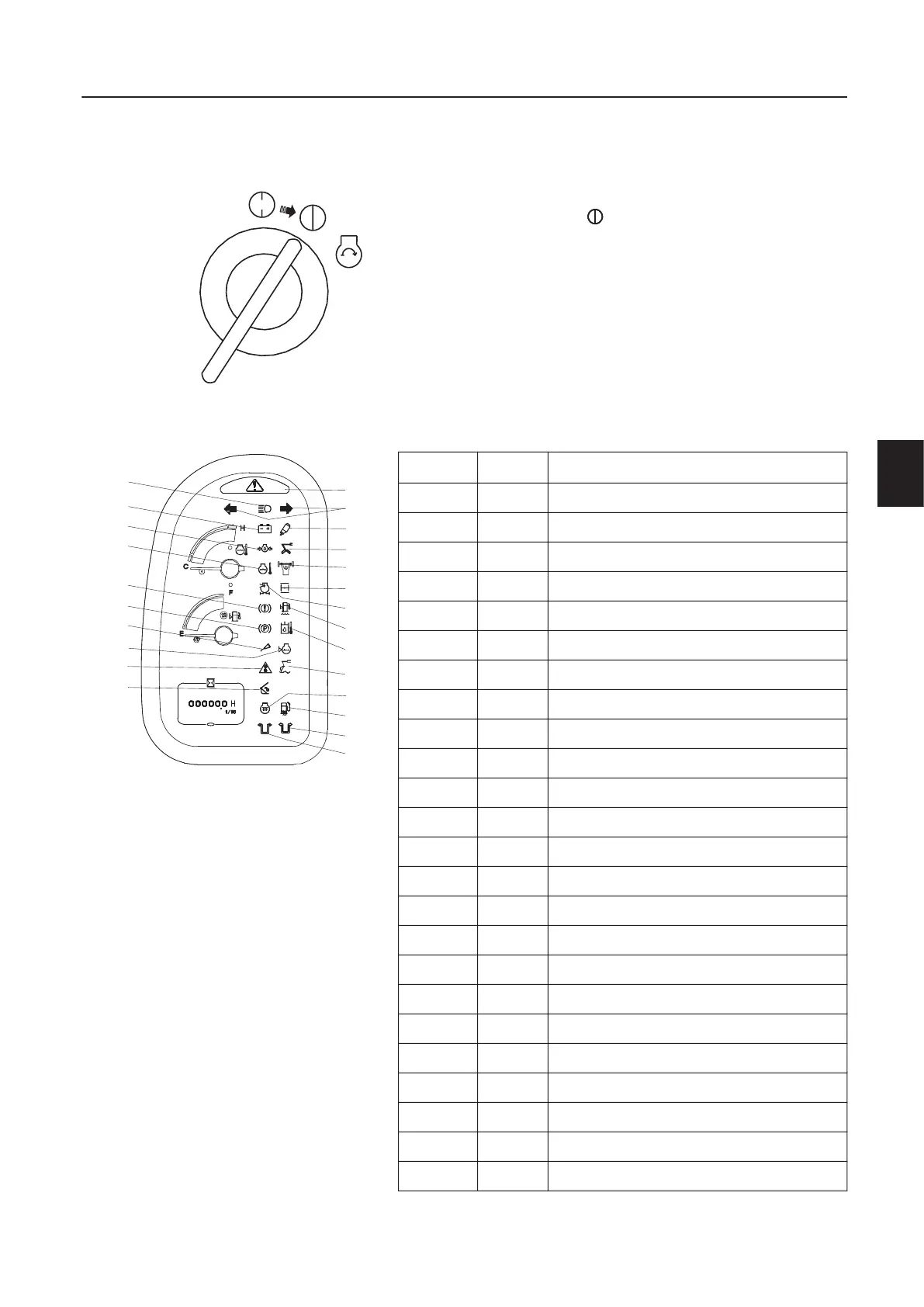

Start switch 95
VOE 2134355130
Checking instruments, warning and control
lamps
Turn the switch to running ( ) position, then the following control
lamps should light up:
The lamps are ON for three seconds and the buzzer sounds twice.
Battery charge warning and engine oil pressure warning lamps still
light up before starting.
If any of these lamps does not light up, either the lamp is faulty or
there is a fault in the electrical system.
All lamps should be OFF when the engine is running
If any of these lamps are not ON, either the lamp is faulty or there
is a fault in the electrical system.
All lamps should be OFF when the engine is running.
Number Color Name
1
Blue
Work lights lamp
2 Red Battery charge warning lamp
3 Red Engine oil pressure warning lamp
4 Red Engine coolant temperature warning lamp
5 Red Brake oil pressure warning lamp
6 Red Parking brake lamp
7 Red Automatic lubricating pilot lamp
8 Red Coolant level lamp
9 Red Overload warning lamp
10 Red Quickfit lamp
11 Red Central warning lamp
12 Green Left/Right turn signal lamp
13 Green Hammer selecting indicator lamp
14 Green Shear selecting indicator lamp
15 Green Power boost lamp
16 Amber Oscillation lock lamp
17 Amber Air cleaner clogging warning lamp
18 Amber Water separator indicator lamp
19 Amber Hydraulic oil temperature warning lamp
20 Green Float operating indicator lamp
21 Amber Air preheating lamp
22 Green Fuel heater lamp
23 Green Emergency steer readiness lamp
24 Amber Emergency steer operating lamp
S82304
S82343
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
20
23
24
