Working on a slope
Caution on a slope
If the engine shuts down on a slope, do not operate the swing func-
tion, since the superstructure may be swung under its own weight
and cause tipping or side slipping.
Be careful when opening or closing the doors on a slope, opera-
tional force may be changed rapidly.
Make sure to keep the doors closed.

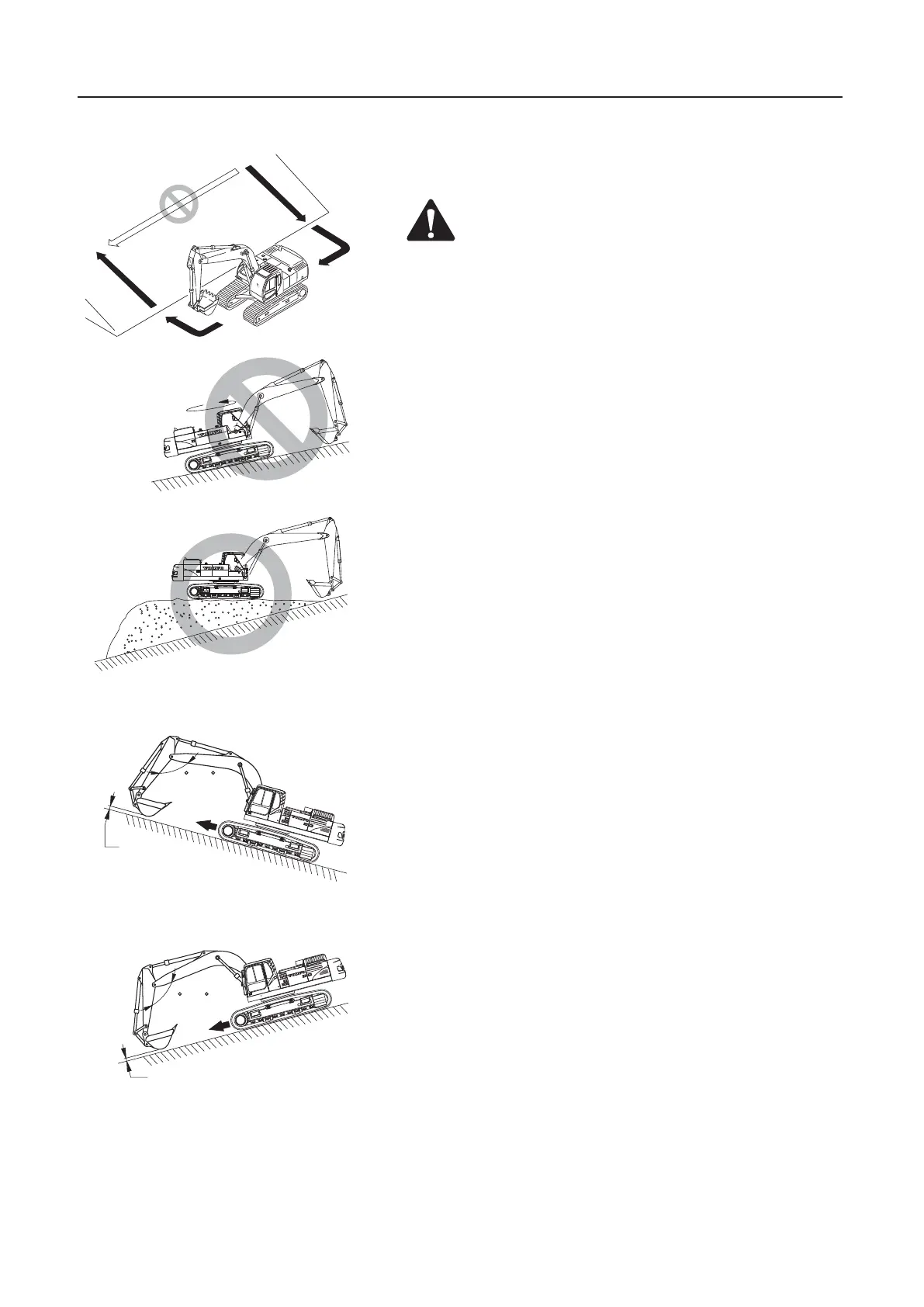

When operating up on a slope of 15 º or more, position the ma-
chine as illustrated.
If the track shoes slip on a slope, thrust the bucket into the ground,
and pull the arm in to assist the track drive to move the machine
up the slope.
When operating down on a slope of 15 º or more, position the ma-
chine as illustrated and travel at low speed.
WARNING!
While travelling on a slope, keep the angle between boom
and arm at 90 - 110 °, and raise the bucket 20 - 30 cm from
the ground.
Do not descend backward on a slope.
Do not change direction or travel a cross on a slope.
Change direction on level ground, if necessary first come
down to level ground and make a detour.
If the machine slides, immediately lower the bucket to the
ground.
Do not perform swing work o r operation of attachments.
The machine can turn over due to unbalance.
Especially, do not swing a loaded bucket. In unavoidable
case, pile up earth on the slope, and make the machine
level and stable.
Do not t ravel on a slope of 30 ° or more.
S80032
S83373
S83374
S82159
20~30cm
90 ~110
S82158
20~30cm
90 ~110
