Instruments and controls
Description of instrum ent panel 33
VOE 2134355130

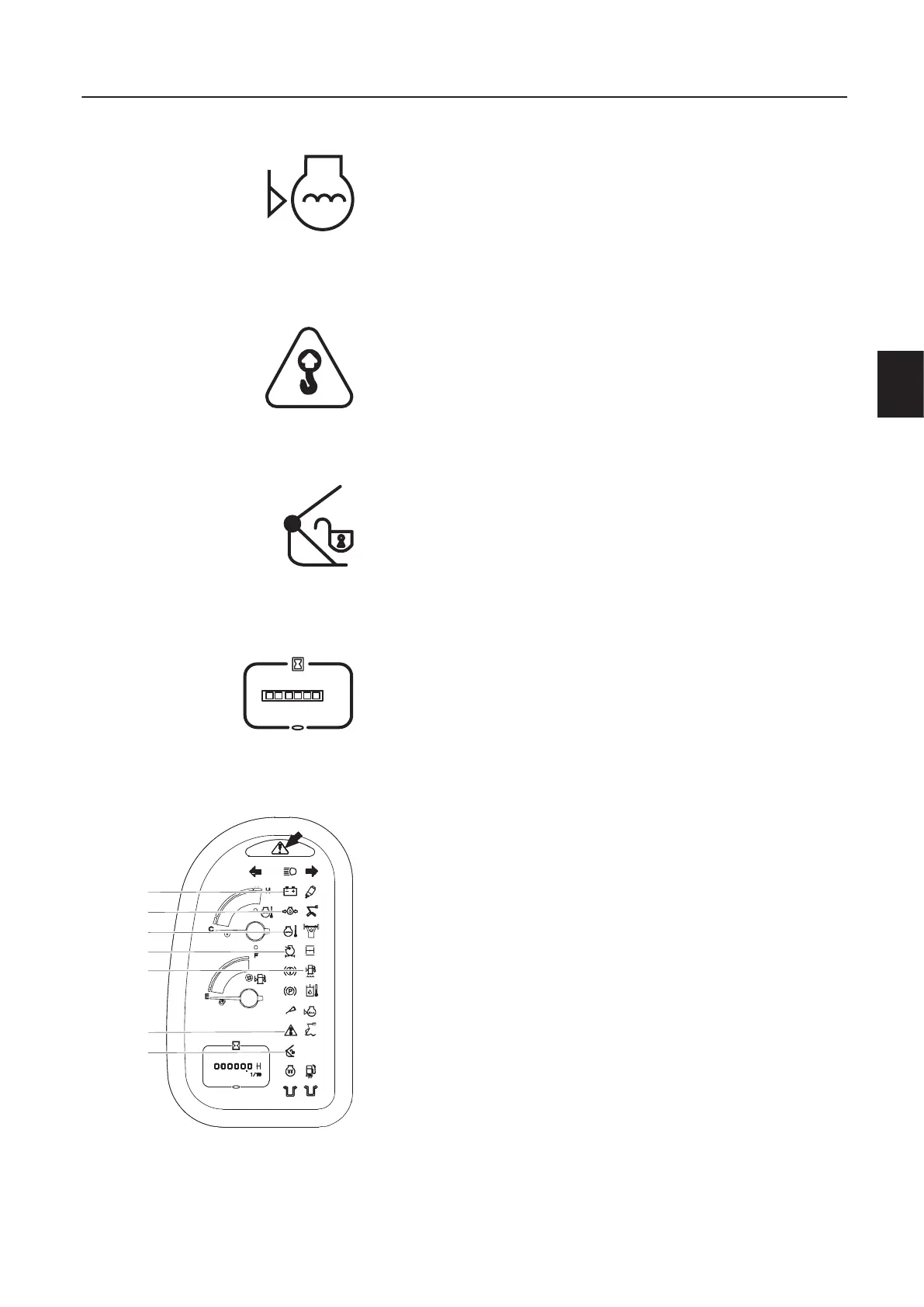

10 Coolant level lamp
Control lamp (red)
The lamp is ON if the coolant level becomes too low. If this hap-
pens, check and add coolant.
See Checking coolant level
11 Overload warning lamp (option)
Control lamp (red)
Included in the central warning system
The lamp is ON and the buzzer sounds, if there is overload condi-
tion while operating with attachment.
12 Quickfit lamp (option)
Control lamp (red)
Included in the central warning system
The lamp is ON and the buzzer sounds, if the two quickfit switches
on the right and left panel are pressed simultaneously.
See Quickfit switch (option) on page 40.
13 Hour meter indicator
The hour recorder shows the total number of hours the engine has
operated. It records only when the engine is running.
14 Central warning lamp
Control lamp (red)
The central warning lamp flashes when a fault occurs in either of
the following functions.
Buzzer sound at the same time as the central warning lamp flash,
if any of 3, 5, 11, 12 faults are indicated.
NOTE :
If the lamp flashe s while operating - imme di ately stop the ma-
chine and investigate the cause.
2 Battery charge warning lamp
3 Engine oil pressure warning lamp
5 Engine coolant temperature warning lamp
11 Overload warning lamp (option)
12 Quickfit lamp (option)
20 Air cleaner clogging warning lamp
21 Water separation indicator lamp (option)
S80099A
S80490A
S80491A
1/10
H
00 0000
S80481A
S82341
12
11
21
5
20
3
2
