80 Disassembling for transportation
VOE 2134355130
Disassembling for transportation
NOTE :
If any country (state) has its own regulation for machine
weight limitation of transportation, disassemble the relate d
parts for transportation.

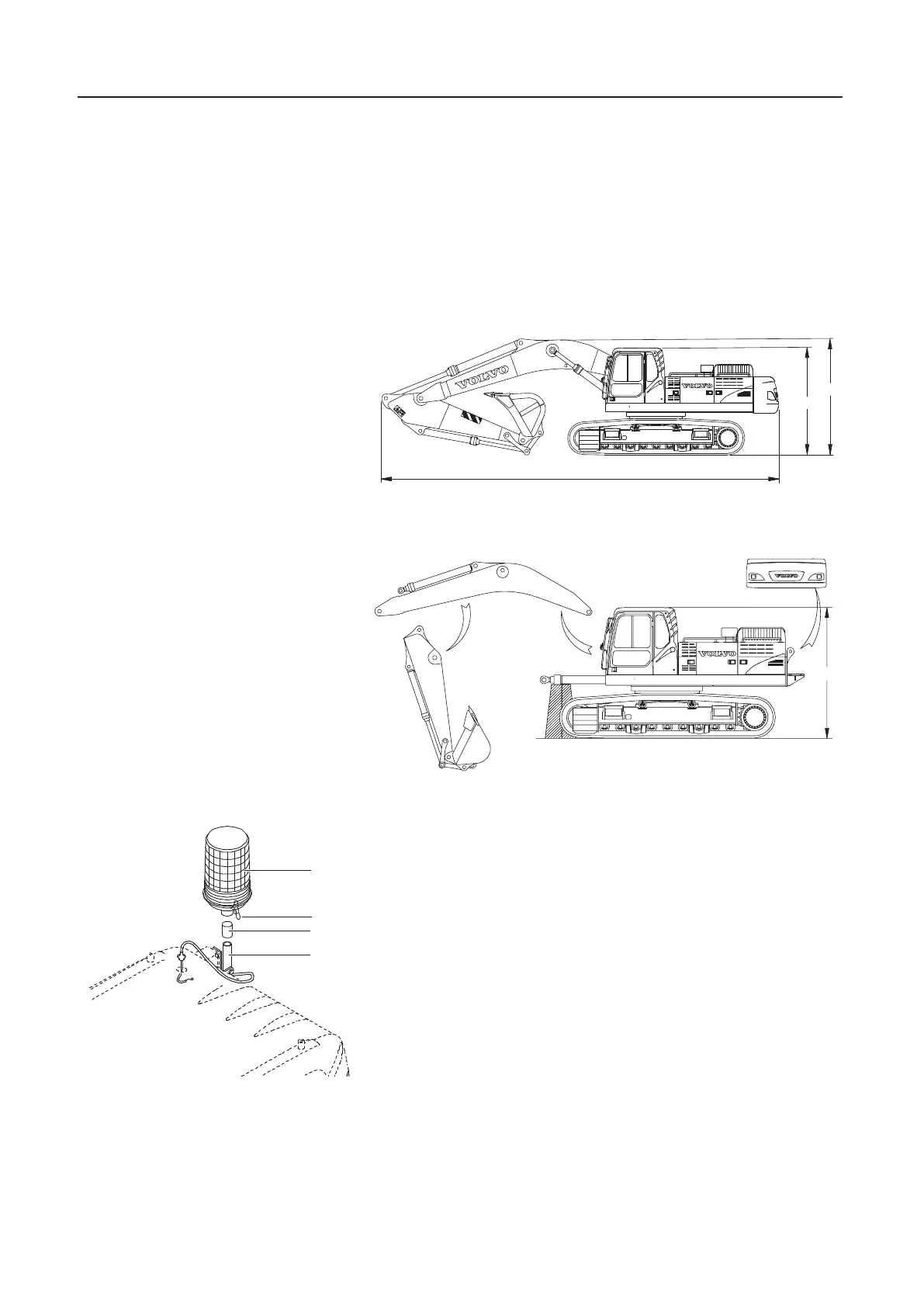

Complete dimensions.
Parts t o be disassembled for transportation.
Rotating beacon lamp (option)
When transportating the machine, dismantle rotating beacon lamp
(A) not to be damaged.
1 Looesn the wing nut (B) and dismantle the rotating beacon
lamp (A).
2 Keep the rotating beacon lamp (A) in the cab during transpor-
tation.
3 Put the rubber cover (C) on the bracket (D).
3650
3190
10910
S83011
S83012
3190
S83367
A
B
C
D
