Operating instructions
Disassembling for transportation 81
VOE 2134355130

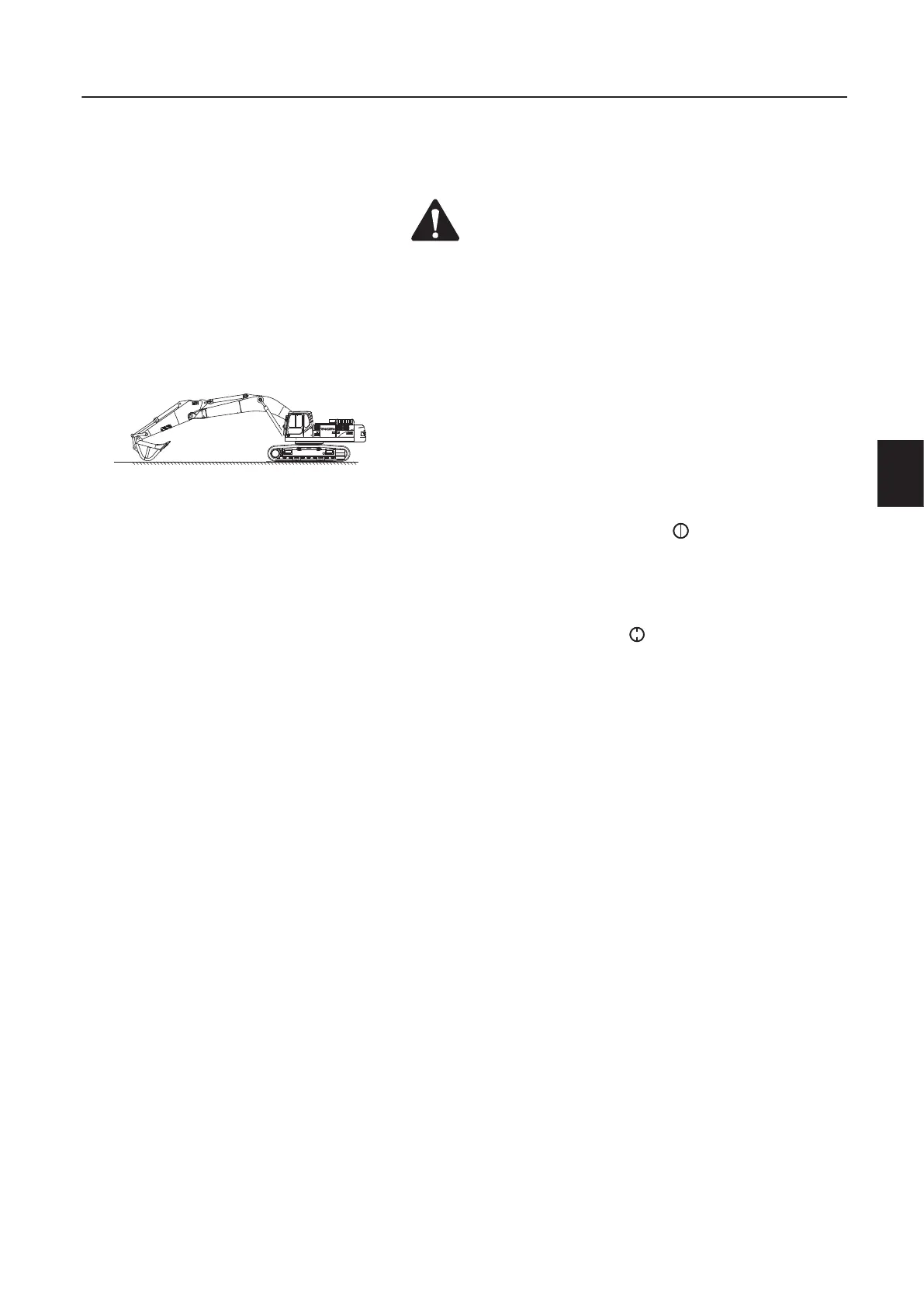

Disconnecting hydraulic hoses and lines
1 Position the machine on even, firm and level ground.
2 Retract the bucket cylinder and arm cylinder completely.
3 Lower the boom to the ground as shown.
4 Stop the engine.
5 Move the safety bar down to lock the system securely, See
Safety locking system on page 60.
6 Turn the engine start switch to ON position.
Do not start the engine.
7 Pull up the safety bar, Move the left and right operating levers,
respectively to the full extension in all directions to remove in-
ternal pressure from the hydraulic circuits.
8 Turn the start switch to OFF position.
9 Release internal pressure in the hydraulic tank through the air
breather of the hydraulic tank.
10 Disconnect hoses and lines.
Treat oil in an environmentally safe way!
11 Dismantle the components (boom, arm, counterweight etc.)
WARNING!
Immediately a fter operating the machine, the hot hydraulic
oil can cause severe burns on unprotected s kin.
Hydraulic pressure can remain in the hydraulic system.
Serious injury can result if this remaining pressure is not
released before any service is done on the hydraulic
system.
S82227
