Operating instructions
82 Disassembling for transportation
VOE 2134355130
Disassembling components for transporta-
tion
IMPORTANT
Follow the disconnecting hydraulic hoses and lines’ proce-
dure before dis assemble the components.

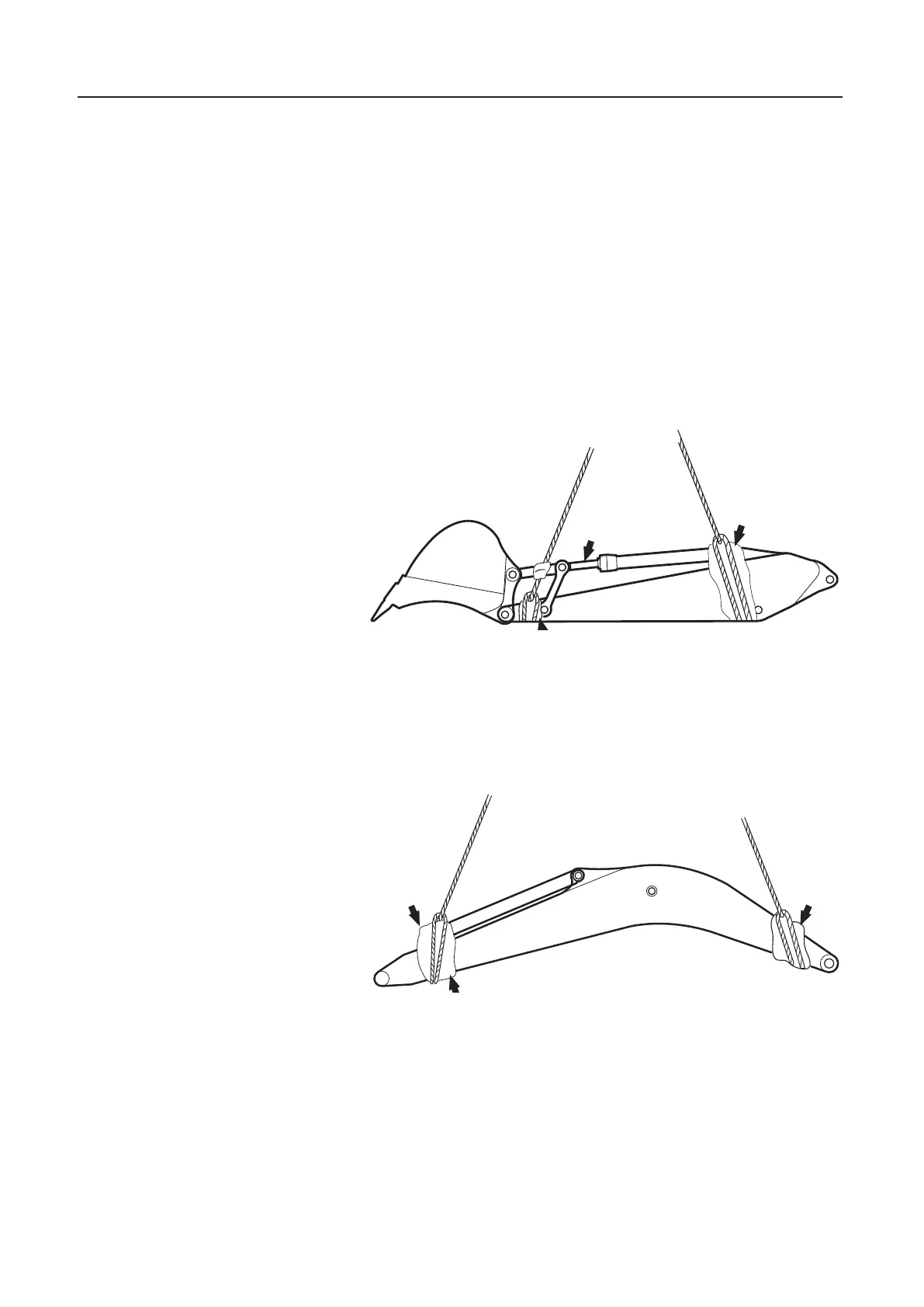

Bucket and Arm with bucket cylinder
Use cable sheaths (A) to protect the lifting cable from being dam-
aged by the edges of the arm.
Protect the piston rod (B) and the cylinder tube.
Boom with Arm cylinder
Use cable sheaths to protect the lifting cable from being damaged
by the edges of the boom.
Secure piston rod (B) of the arm cylinder to the cylinder tube.
Counterweight
See Counterweight removal and installation on page 84.
S82326
A
B
S82327
B
A
