Instruments and controls
36 Description of instrument panel
VOE 2134355130

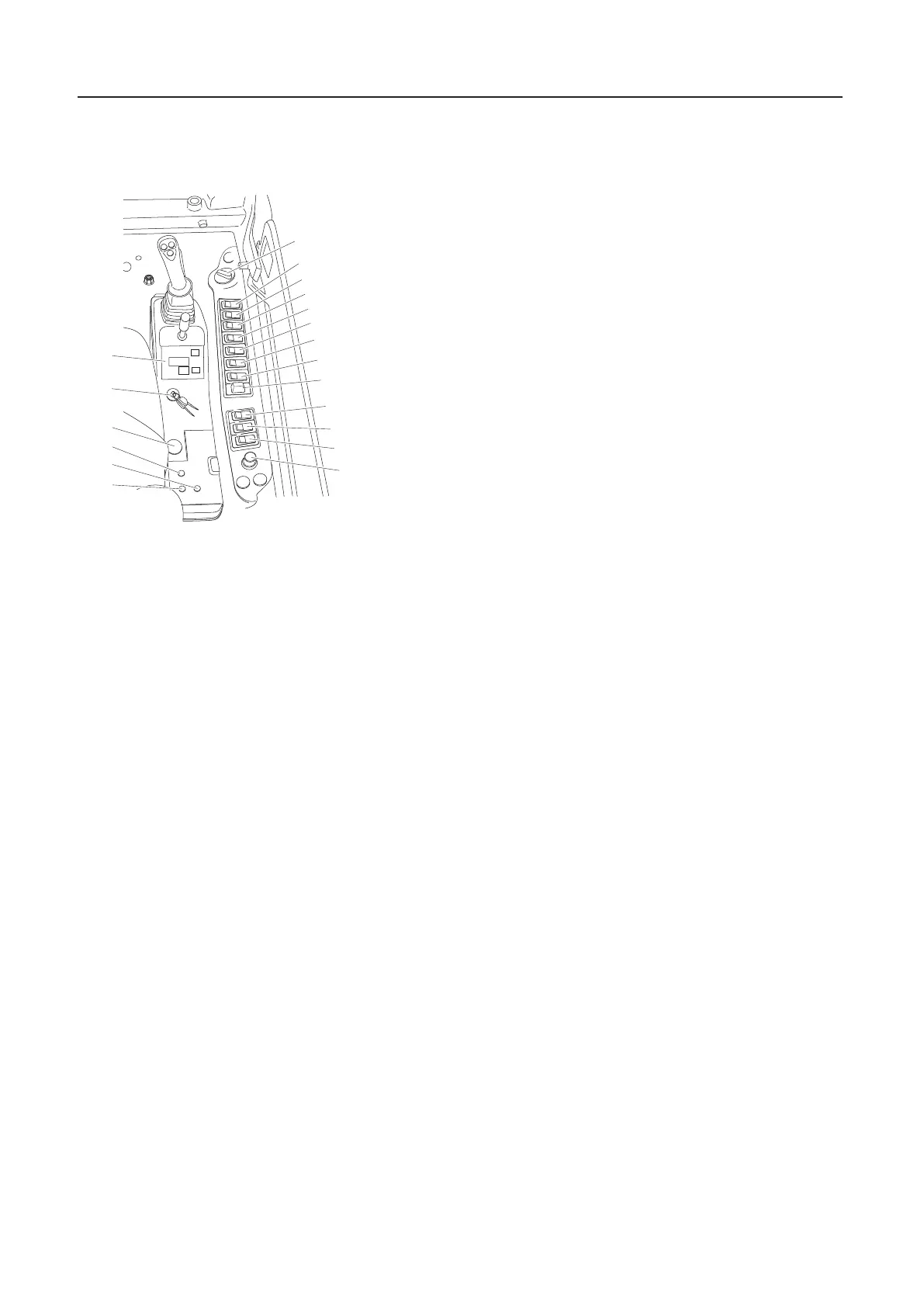

Rightinstrumentpanel
1 Engine speed control switch
2 Working lights switch
3 Power maximum mode selector switch
4 Auto idle selector
5 Travel speed selector switch
6 Boost/hammer/shear selector switch
7 Quickfit switch (option)
8 Quickfit audible warning switch (option)
9 Recirculation air sensor (option)
10 Upper wiper switch
11 Washer switch
12 Lower wiper switch (option)
13 Cigarette lighter
14 Machine display unit
15 Start switch
16 Flow control switch (option)
17 One/two pump select switch (option)
18 Emergency engine speed control switch
19 Automatic / manual selector switch
S82276
1
2
3
4
5
6
7
8
11
10
12
13
16
17
18
19
9
15
14
