Instruments and controls
Description of instrum ent panel 35
VOE 2134355130

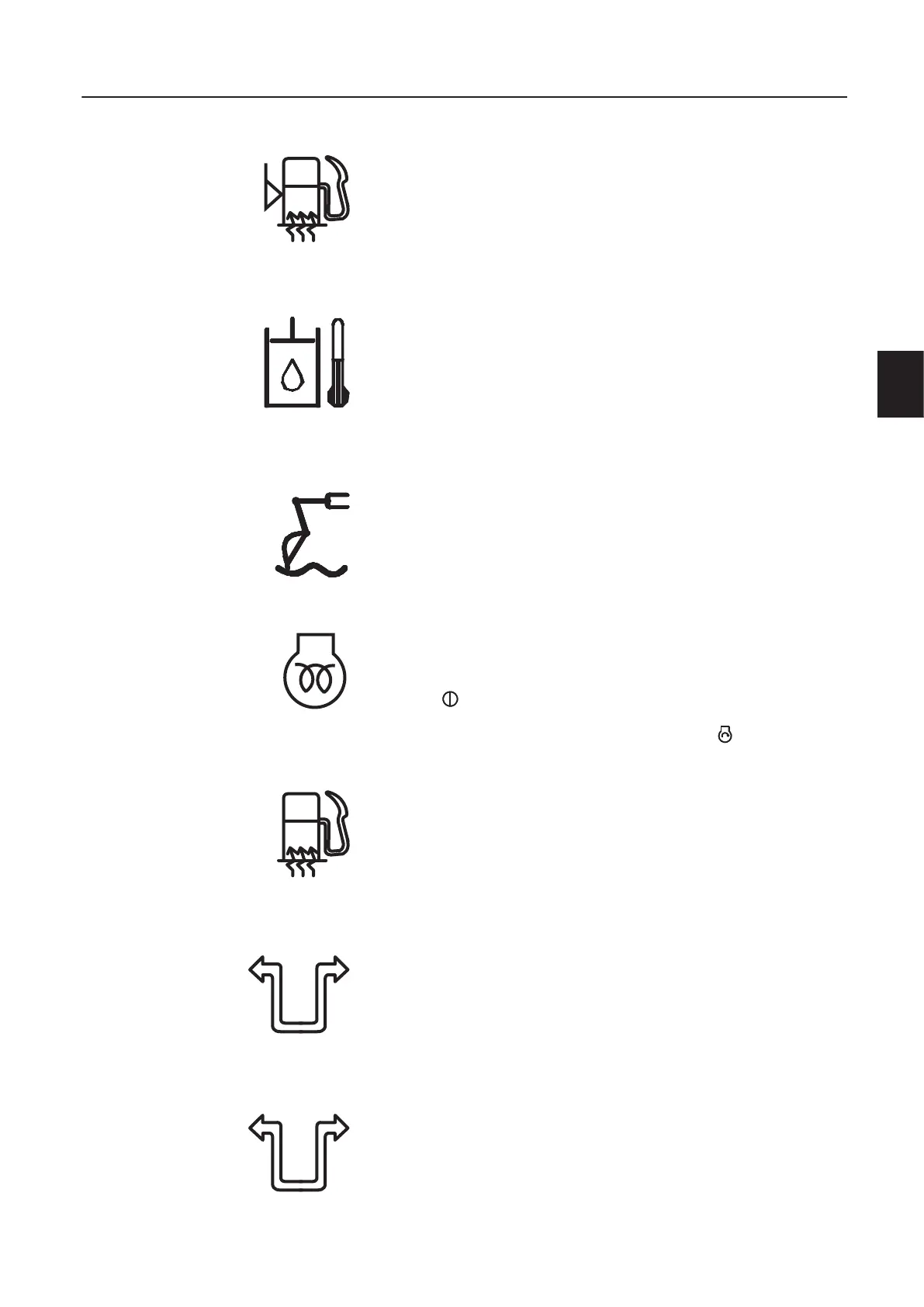

21 Water separation indicator lamp not applicable
on EC330B)
22 Hydraulic oil temperature warning lamp
Control lamp (amber)
The lamp is ON, if the hydraulic oil temperature is abnormally high.
If this happens, stop the working immediately and investigate
the cause.
When required, contact an authorized dealer workshop.
23 Float position control lamp (option)
Control lamp (green)
See Floa t with three button lever on page 54.
See Float position (option) on page 106.
24 Air preheating lamp
Control lamp (amber)
In cold weather, the lamp is ON when the start switch is turned to
"ON" position for preheating. The lamp is OFF if preheating
is completed when the start switch is "ON". This lamp is always
OFF when the start switch is turned to START( ) position.
25 Fuel heater lamp (not functional)
Control lamp (green)
26 Emergency steering readiness lamp Not appli-
cable on EC330B)
Control lamp (green)
27 Emergency steering operating lamp Not appli-
cable on EC330B)
Control lamp (amber )
S80489B
S82252
S83062
S80487A
S80489A
S80965
S80965
