Operating instructions
Disassembling for transportation 83
VOE 2134355130
Lifting machine
Lift the machine on flat, firm and level ground.
1 start the engine, and set the attachment as illustrated. Position
the upper structure boom forward over the idlers.
2 Move the safety locking lever down to lock the system se-
curely, See Safety locking system on page 60.
3 Stop the engine, check the safety around the machine, then
close and lock the front window cab door, and engine hood se-
curely.

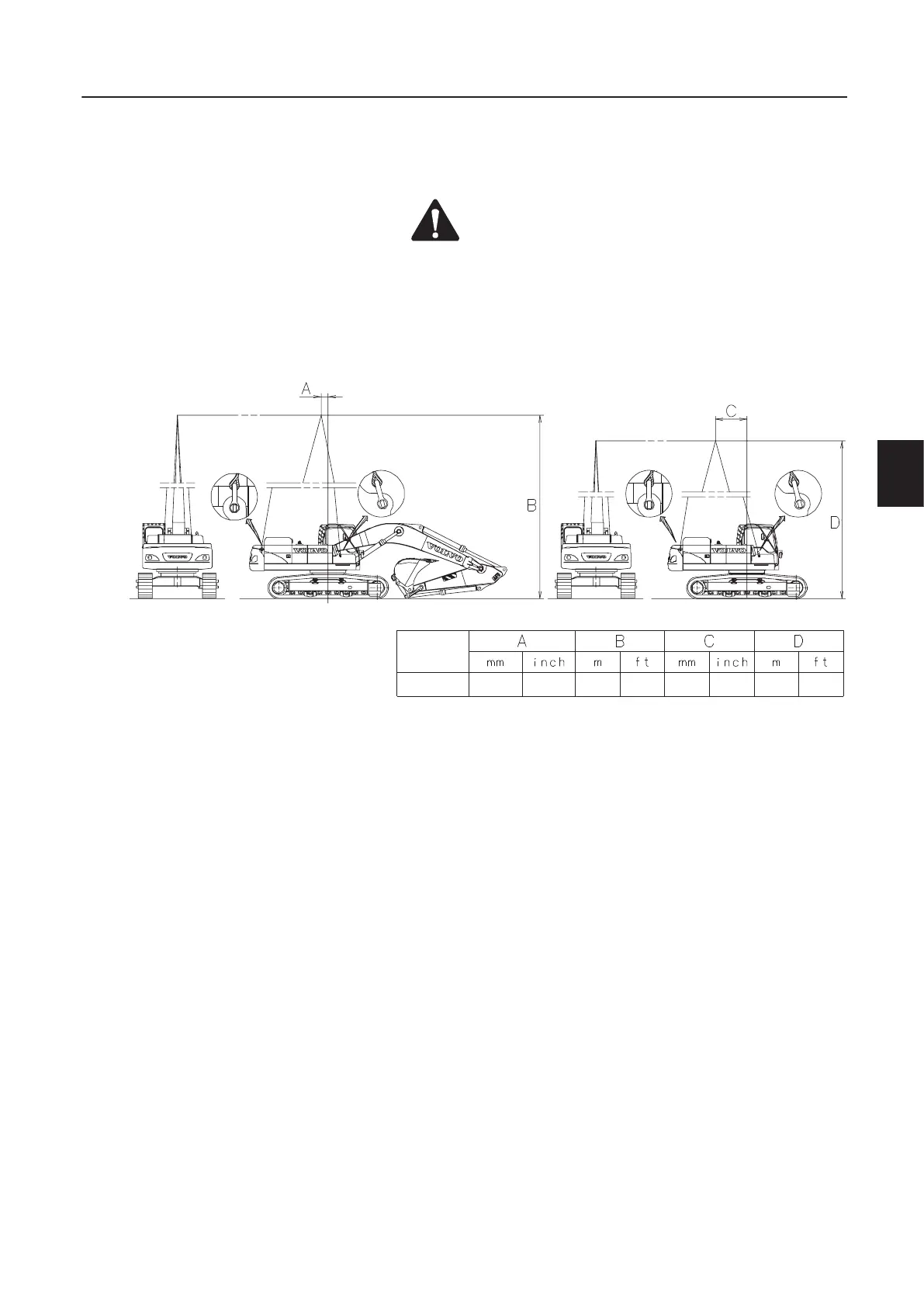

4 As shown in the illustration, connect lifting cables or slings with
sufficient strength for the machine weight at the lifting points
correctly.
5 After installation of all hoisting equipment, lift the machine a lit-
tle to check its balance, if satisfactory, lift it slowly and evenly.
WARNING!
Do not lift the machine with a person in the c ab or on the
machine.
Use certified cables, slings, shackles and hooks of
adequate load rating.
Always lift the machine as shown below. Improper rigging
can allow the load to shift and cause injury or damage.
S82003E
-40~60 -1.6~2.4
14 45.9
1050
41.3
8.5
27.9
EC330B
