Instruments and controls
32 Description of instrument panel
VOE 2134355130

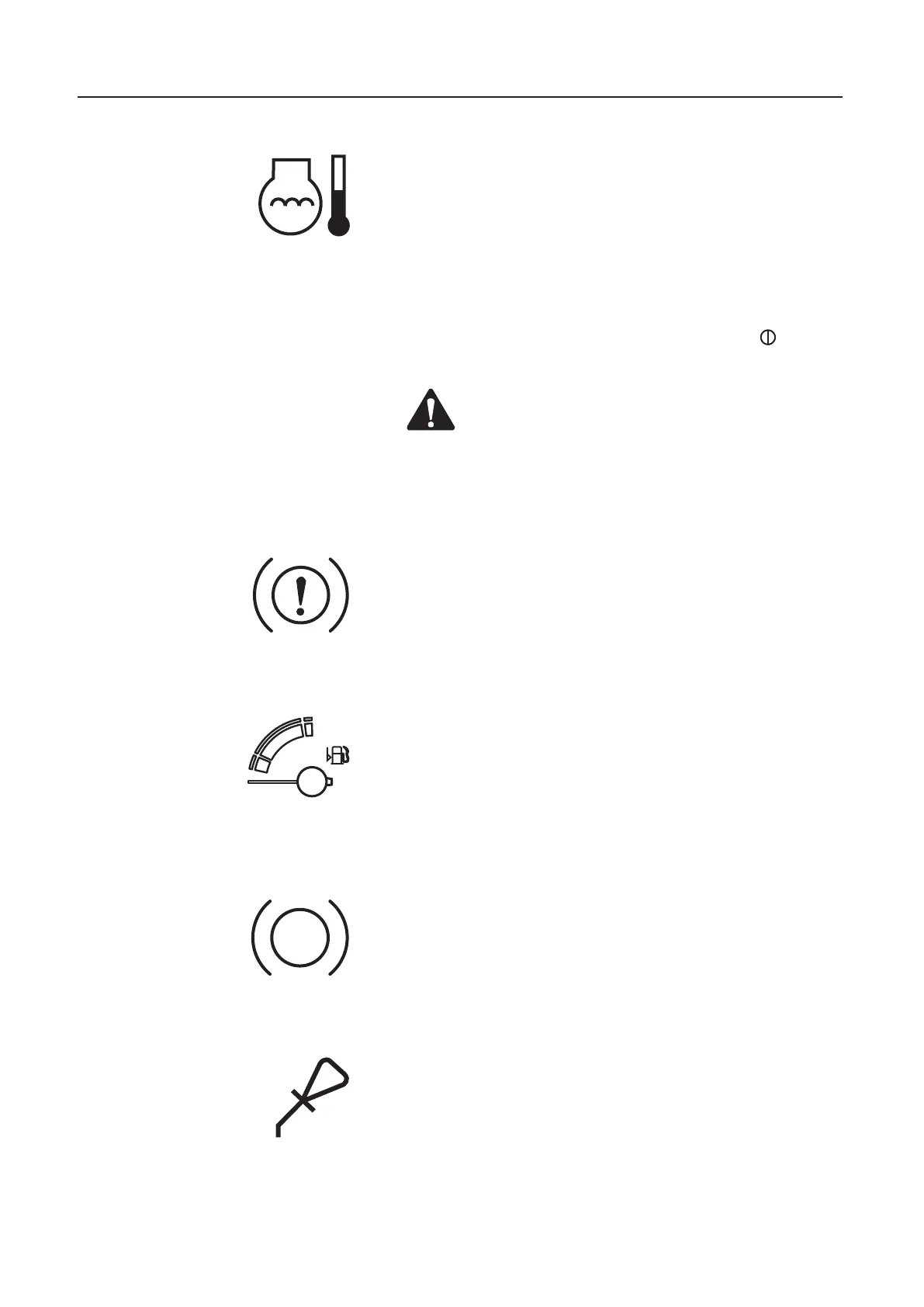

5 Engine coolant temperature warning lamp
Control la mp (red)
Included in the central warning system
The lamp is ON and the buzzer sound, if the engine coolant tem-
perature is abnormally high.
If this happens, stop working immediately and investigate the
cause.
When required, contact an authorized dealer workshop.
The lamp is ON when the start key is turned to “ON” position
before the engine is started.
6 Brake oil pressure temperature warning lamp
not applicable on EC330B)
Control l amp (red)
7 Fuel level gauge
The gauge shows the level in the fuel tank. If the gauge moves
down into the red area and the warning lamp on the right of the
gauge lights up, the machine should be refuelled in order to avoid
air entering the system.
If the tank has been run empty, See Bleeding fuel system of air
on page 138.
For the capacity of the fuel tank, See Specifications on page 180.
8 Parking brake lamp No function on EC330B)
Control lamp (red)
9 Automatic lubricating pilot lamp (option)
Control lamp (red)
The lamp is ON, if the grease tank is empty or the high pressure
system is abnormal. (If needed, automatic lubricating system
should be installed by Volvo dealers or distributors at local site)
WARNING!
Engine coolant is dangerously hot immediately after the
engine stops. Wait until the engine coolant has cooled
down, before opening the radiator cap. Release internal
pressure by opening the cap slowly.
S80484B
S80848A
E
F
S80480A
P
S80849A
S80488A
