Volvo EC330B - Instruments and Controls 30 Overview Overview; Overview

Instruments and controls
30 Overview
VOE 2134355130

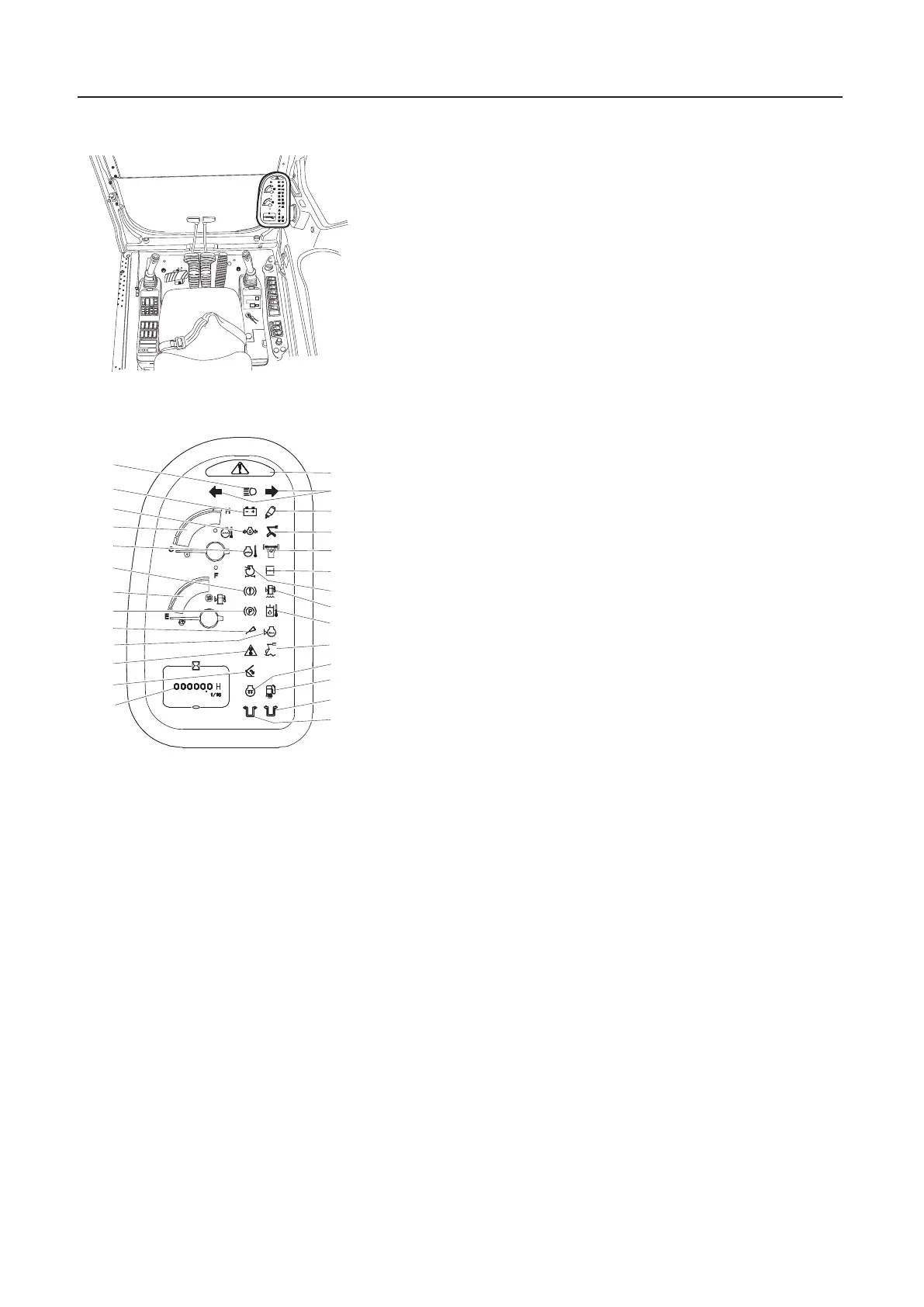

Overview
1 Work lights lamp (not applicable on EC330B)
2 Battery charge warning lamp
3 Engine oil pressure warning lamp
4 Engine coolant temperature gauge
5 Engine coolant temperature warning lamp
6 Brake oil pressure temperature warning lamp
(not applicable on E C330B)
7 Fuel level gauge
8 Parking brake lamp (not applicable on EC330B)
9 Automatic lubricating pilot lamp (option)
10 Coolant level lamp
11 Overload warning lamp (option)
12 Quickfit lamp (option)
13 Hour meter indicator
14 Central warning lamp
15 Left/Right turn signal lamp (not applicable on EC330B)
16 Hammer selecting indicator lamp (option)
17 Shear selecting indicator lamp (option)
18 Power booster lamp
19 Oscillation lock lamp (not applicable on EC330B)
20 Air cleaner clogging warning lamp
21 Water separation indicator lamp (not applicable on EC330B)
22 Hydraulic oil temperature warming lamp
23 Float position control lamp (option)
24 Air preheating lamp
25 Fuel heater lamp (not applicable on EC330B)
26 Emergency steering readiness lamp (not applicable on EC330B)
27 Emergency steering operating lamp (not applicable on EC330B)
