Instruments and controls
Description of instrum ent panel 31
VOE 2134355130

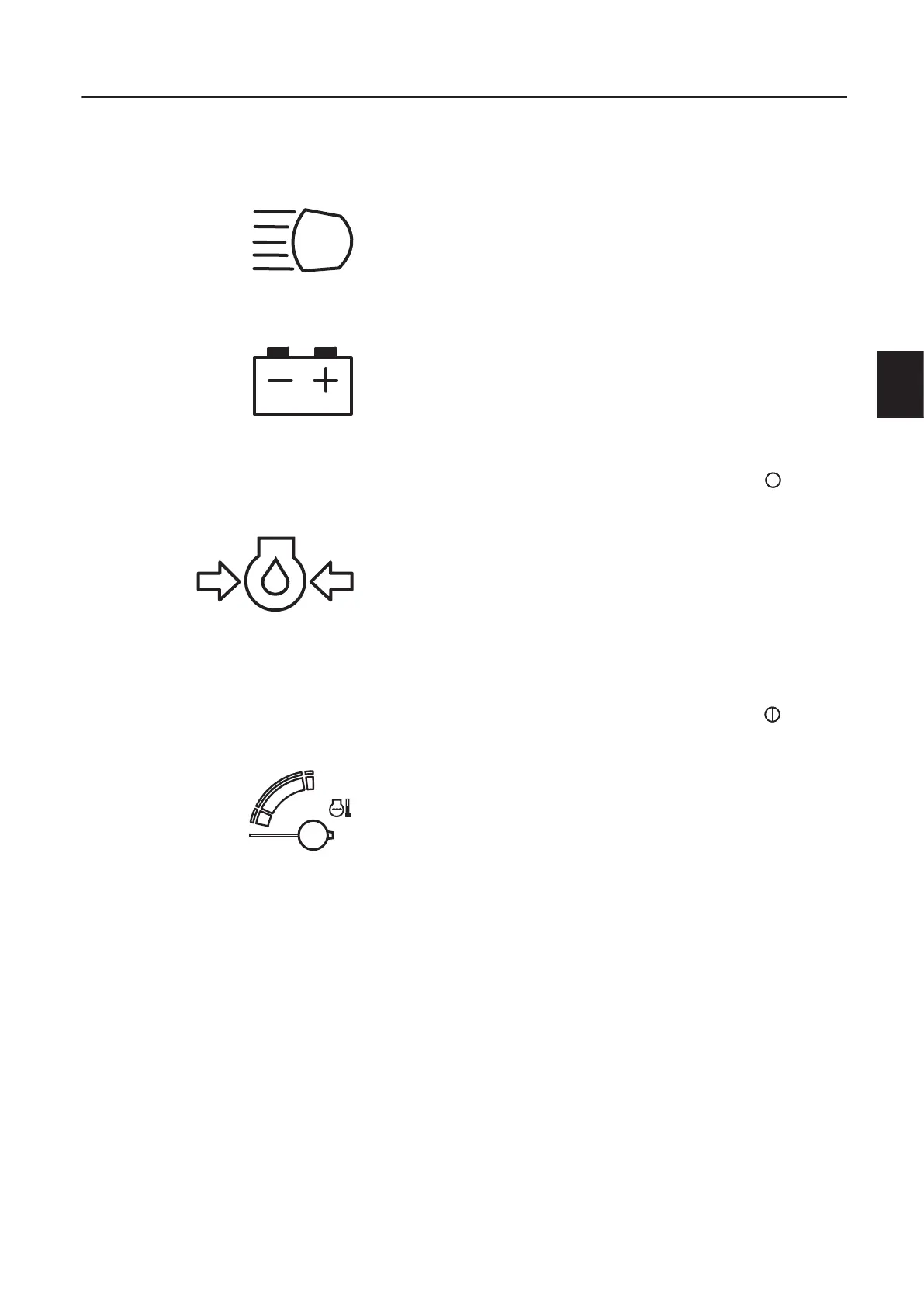

Description of instrument panel
1 Work lights lamp not applicable on EC330B)
Control lamp (blue)
2 Battery charge warning lamp
Control lamp (red)
Included in the central warning system
The lamp should be ON when the engine is running, indicating that
the batteries are being charged. If the lamp lights up when the en-
gine is running, this shows that the charging system is faulty.
The lamp is ON when the start key is turned to “ON” position
before the engine is started.
3 Engine oil pressure warning lamp
Control lamp (red)
Included in the central warning system
The lamp is ON and the buzzer sounds, if the oil pressure in the
engine is too low.
If this happens, stop the engine immediately and investigate
the cause.
When required, contact an authorized dealer workshop.
The lamp is ON when the start key is turned to “ON” position
before the engine is started.
4 Engine coolant temperature gauge
If the pointer enters the red sector, the indicator lamp on the right
of the gauge (5) is ON and the central warning lamp flashes. If this
happens, run the engine at low idling for a few minutes.
If the pointer remains in the red sector, stop the engine and inves-
tigate the cause.
