Operating instructions
86 Changing bucket
VOE 2134355130

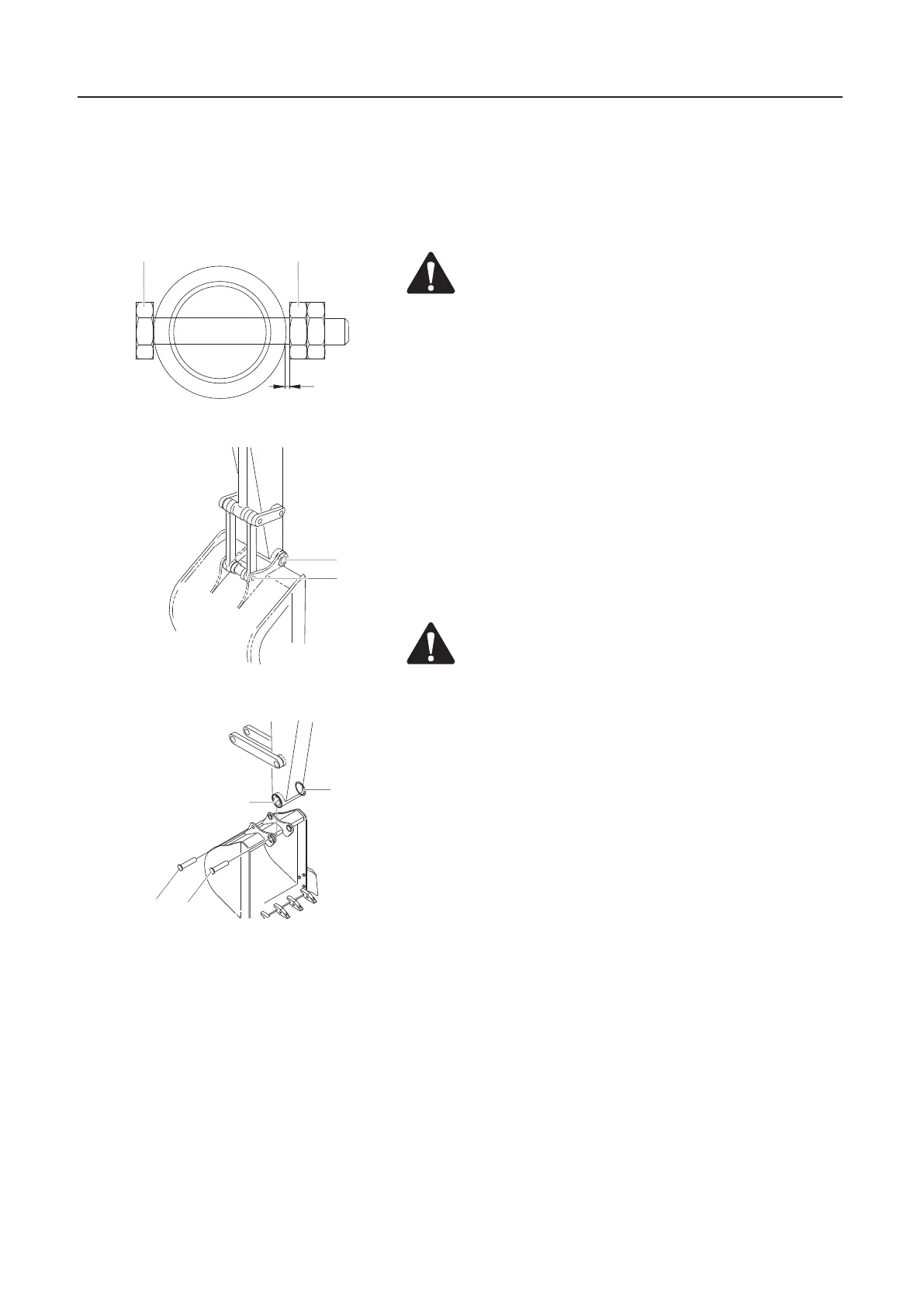

Changing bucket
Remove bucket
1 Lower the bucket lightly onto the ground.
2 Remove lock bolt (A) and nut (B) of each pin
3 Remove pin (C and D), then remove the bucket.
IMPORTANT
Keep the pins clean and do not damage O-ring (E).
Install bucket
1 Align the arm to the bucket holes and link holes.
2 Apply grease to the holes.
3 Put O-rings (E) at the holes for the arm.
4 Insert pins (C and D).
5 Install lock bolt (A) and nut (B) of each pin.
IMPORTANT
Leave a clearance of minimum 2 mm between pin and nut,
and grease the pin.
WARNING!
While striking the bucket pin with a hammer, metal chips
may fly into your eyes.
Always wear goggles, s afety helmet and gloves while
working.
Support the removed bucket to stabilize it.
WARNING!
Do not insert y our fingers into the pin bores to check
alignment, a serious accident could occur.
S80250A
2mm
BA
S80248A
D
C
S80249D
E
E
D
C
