Cab window
Move the safety locking lever down to lock the hydraulic system
securely, See Safety locking system on page 60. before opening
or closing the window.

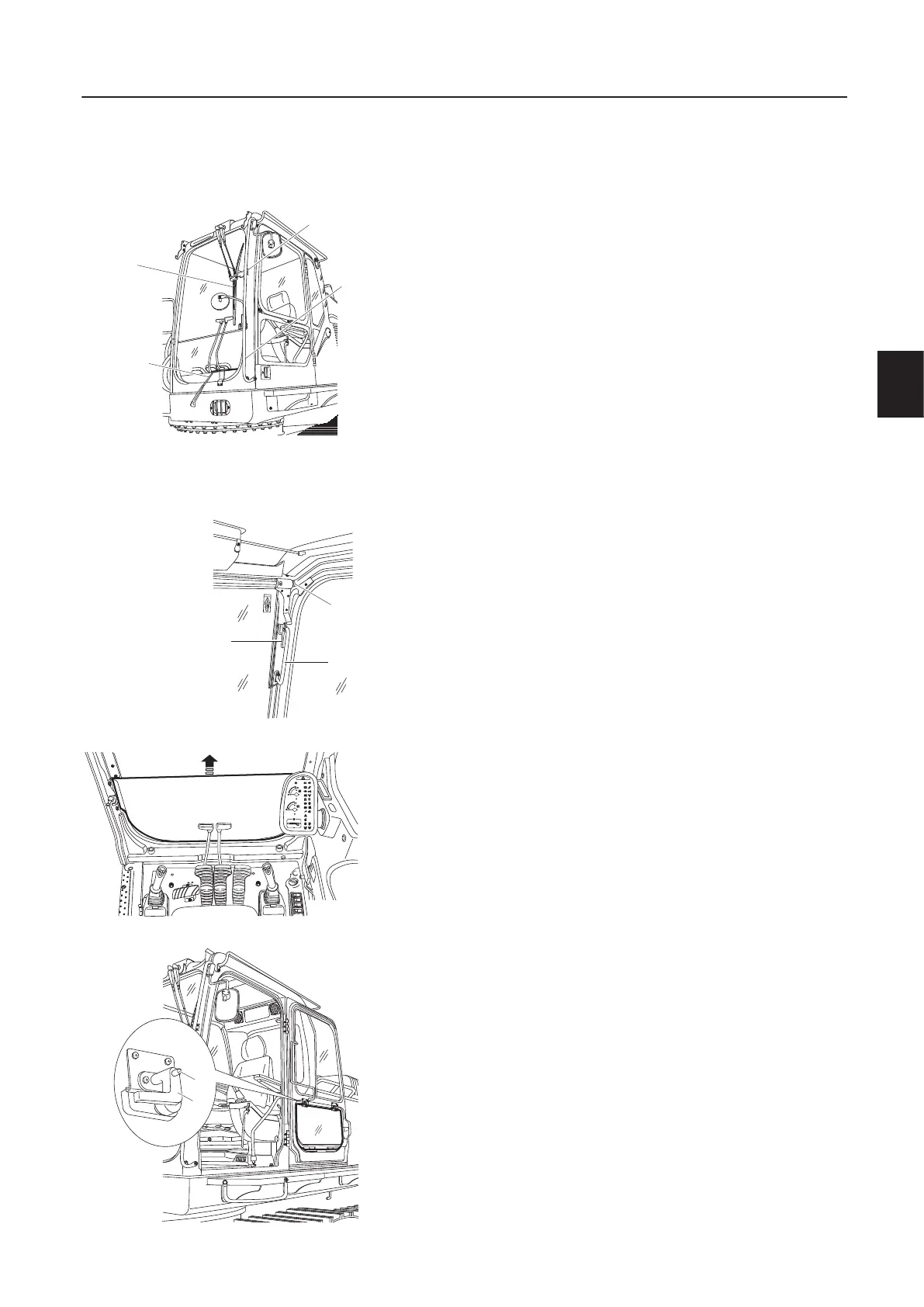

Open ing the window
1 Lower the attachment to the ground and stop the engine.
2 Pull both latches (E) while holding both grips (F) and move up-
ward in order to unlatch the window from lock (G).
NOTE :
Stop li fting as soon as the window is unlatched.
3 Hold both grips (F) only and pull the window upward and rear-
ward and fix it in the locked position.
NOTE :
Do not hold latches (E) while lifting the front window to
avoid possible injury to your hand.
Closing the upper window
1 Lower the attachment to the ground and stop the engine.
2 Pullbothlatches(E)withholdingbothgrips(F)tomovethe
window out of the lock position.
3 Grip handle (F) and pull the window downward slowly.
4 Fix the window securely and tighten with left lock (G).
Removing the lower window
1 Open the upper window
See Opening the window on page 61.
2 Grip the upper part with both hands, and pull it upward.
3 S tore the removed window at the right, inside of cab.
Ensure that the lower window is locked in the storing posi-
tion.
To release the lock, turn lock lever (A) to the right and simul-
taneously push button (B).
Be careful not to drop the window when releasing the lock.
