Instruments and controls

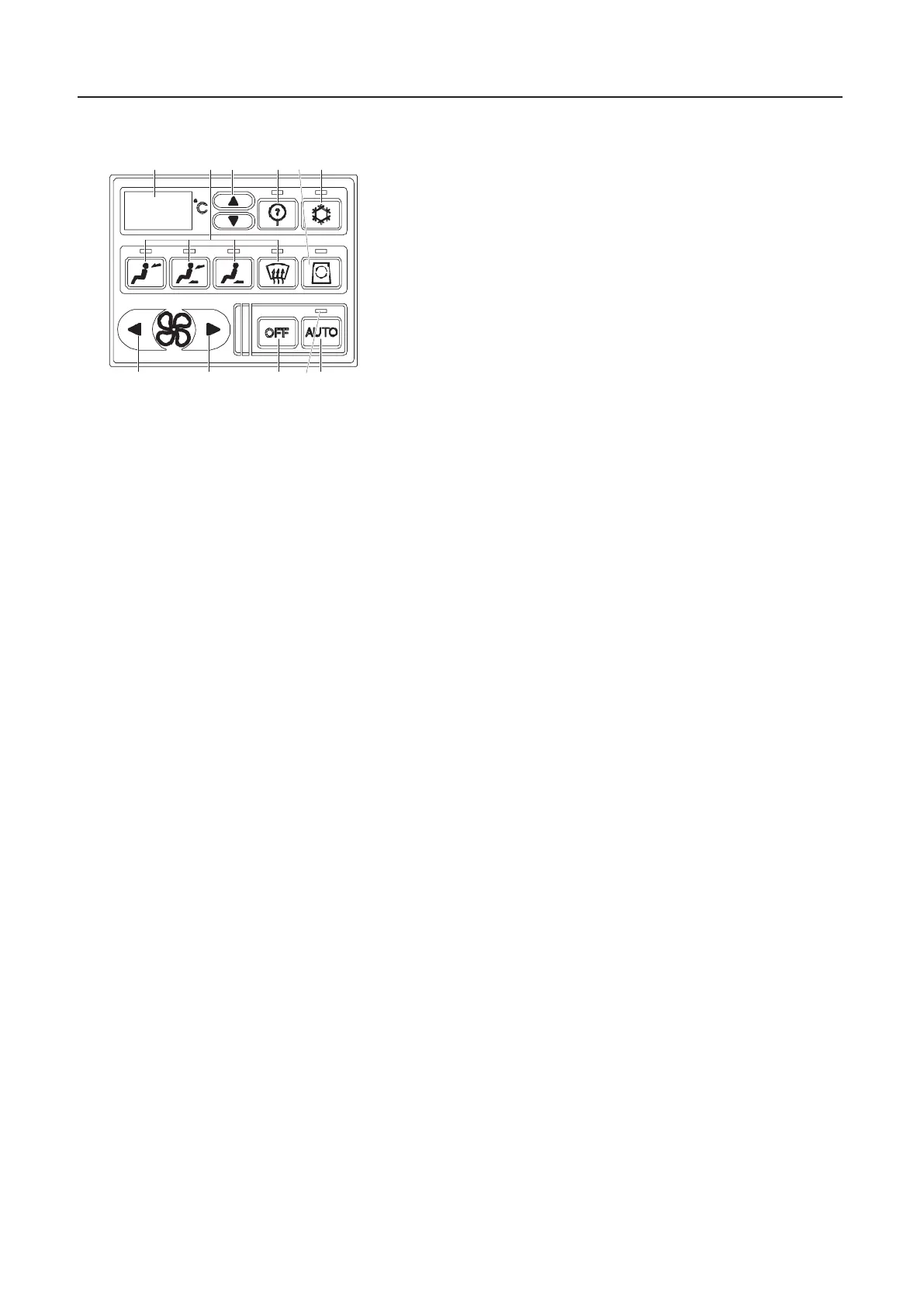

68 Air condition er/heater (option)
VOE 2134355130
6 Compressor ON/OFF switch
The cooling system operates only when fan speed control button
(9) is ON.
7 Air flo w selector button
Ventilation is available in four modes.
8 Recirculation button
To circulate inside air or to draw in outside air.
When the lamp is ON, it is to circulate inside air.
When the lamp is OFF, it is to draw outside air.
9 Fan speed selector button
When pressing the left or right end of the button to decrease or in-
crease the fan speed, the related lamp lights up and the fan speed
changes.
OFF → 1st step → 2nd step → 3rd step → 4th step
912
68
5
4
3
7
S82056
