14. Operating elements

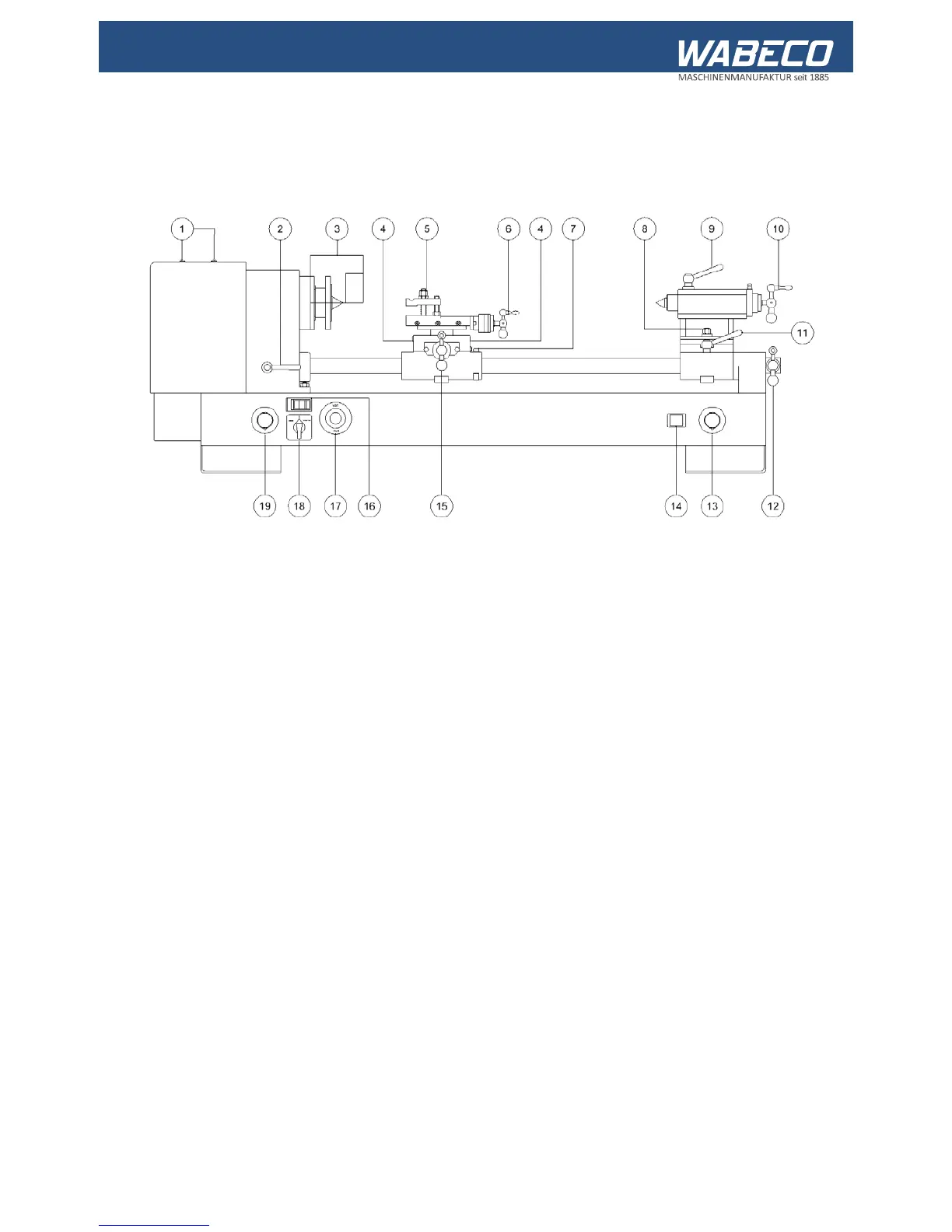

14.2 D3000 lathe
1. Safety screw for the drive protection hood
2. Switch lever for the automatic along feed
3. Chuck protection hood
4. Holding screw for longitudinal skid
5. Tensioning nut for tool clamping plate
6. Ball crank for adjusting the longitudinal skid
7. Clamping screw for clamping the tool skid
8. Tensioning nut for securing the lateral adjuster of the tailstock
9. Clamping lever for securing the tailstock sleeve
10. Ball crank for adjusting the tailstock sleeve
11. Lever for securing the tailstock to the guides
12. Ball crank for adjusting the tool skid
13. Potentiometer rotating knob for speed selection of infinitely variable along feed
14. Direction switch for the feed direction Right-Left
15. Ball crank for adjusting the transverse skid
16. ON/OFF switch with low voltage trigger
17. Emergency off switch
18. Turn switch for forwards-reverse - main spindle
19. Potentiometer rotating knob for speed selection of the electrical drive motor
