70
17. Shavings tank with spray protection wall (optional)
17.2 Mounting the shavings tank with spray protection wall on the tool
cabinet (optional)

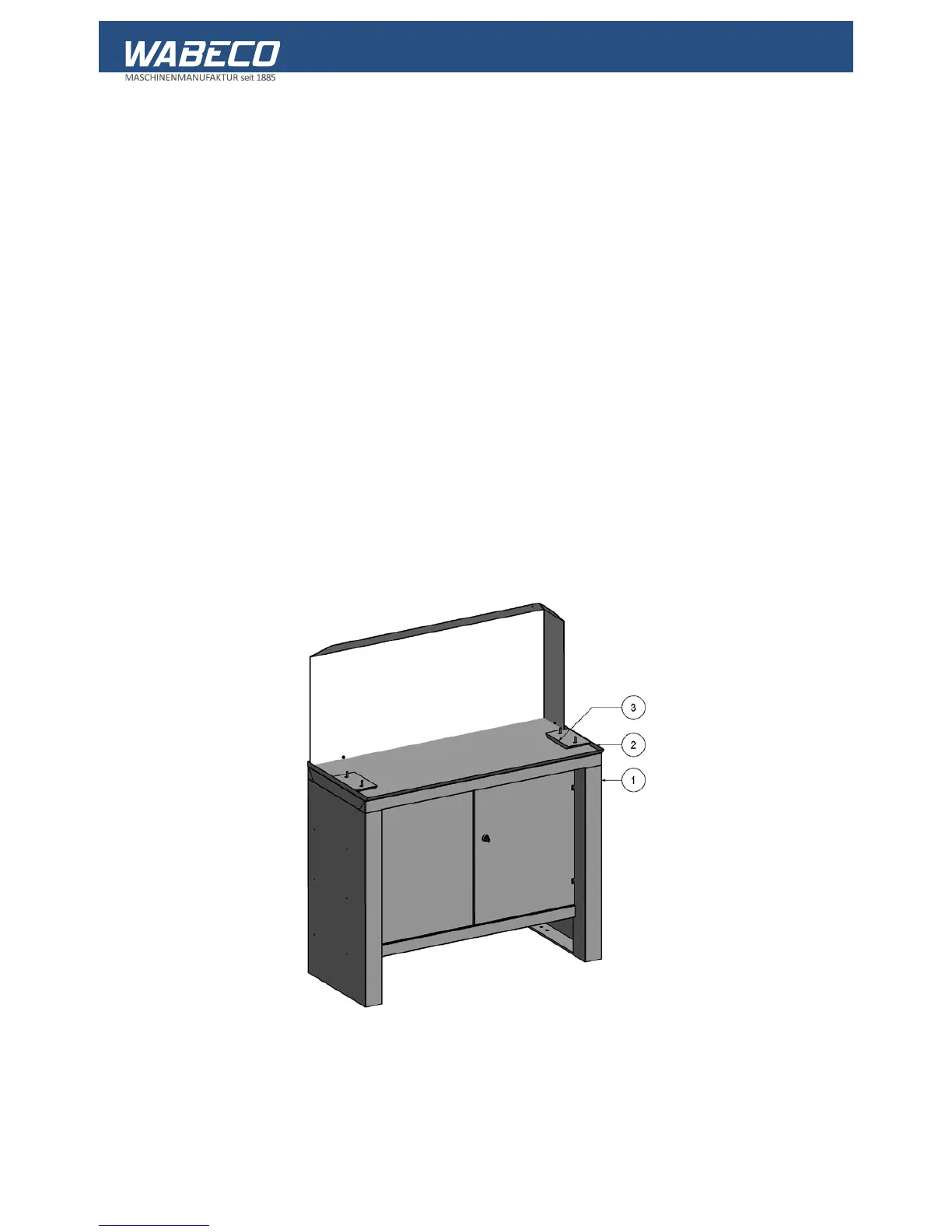

■ The shavings tank with spray protection wall (2) is positioned, as shown, on the tool cabinet (1).
The two spacer feet’s (3) are not relevant in this stage.
■ The screws and washers required for assembly are included in the scope of delivery.
To screw the shavings tank with spray protection wall to the tool cabinet
proceed as follows:
1. Position both spacer feet’s as shown upon the shavings tank with spray protection wall and align
along the fixing holes of the shavings tank.
2. Place the lathe carefully onto the shavings tank with spray protection wall and align the fixing holes.
3. Combine each screw with a washer.
4. Open the doors of the tool cabinet.
5. Push the screws from below, through the fixing holes in the tool cabinet, into the shavings tank with
spray protection wall and into the fixture thread on the bed of the lathe and tighten using a size 13
combination wrench.
