18. Coolant system (optional)
18.1 Setting up the coolant system
When mounting the coolant system to a WABECO tool cabinet, the appropriate bores are already
present. The tool cabinet ensures a safe base for the lathe or coolant system.
If the coolant system is secured to another suitable surface, the four through holes must be bored into

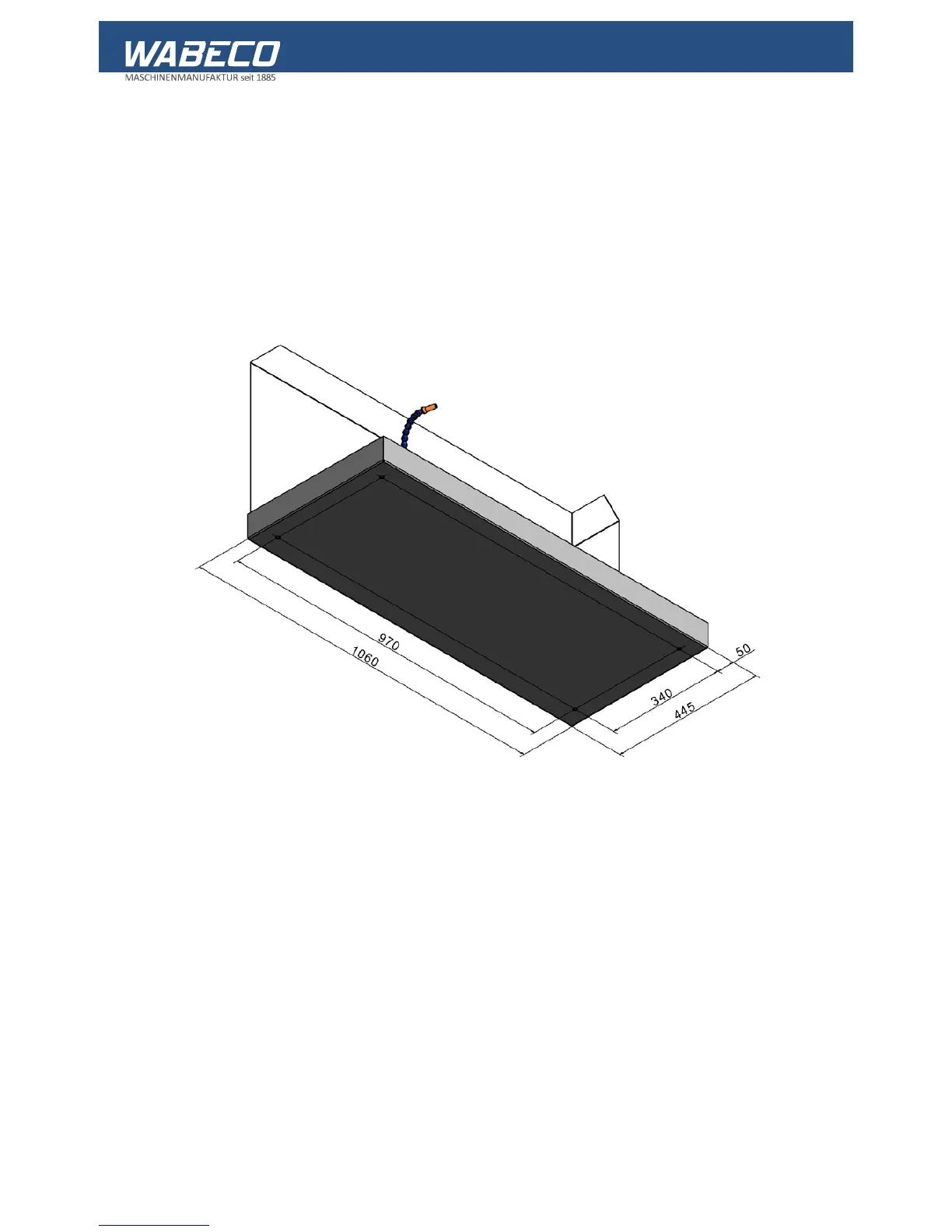

the surface by the client. For the positions of the four fixtures threaded sockets (thread M8) of the
coolant system, see diagram. The diameter of the through holes in the surface must be at least 9 mm.
