21. Tensioning bracket with milling machine table (optional)

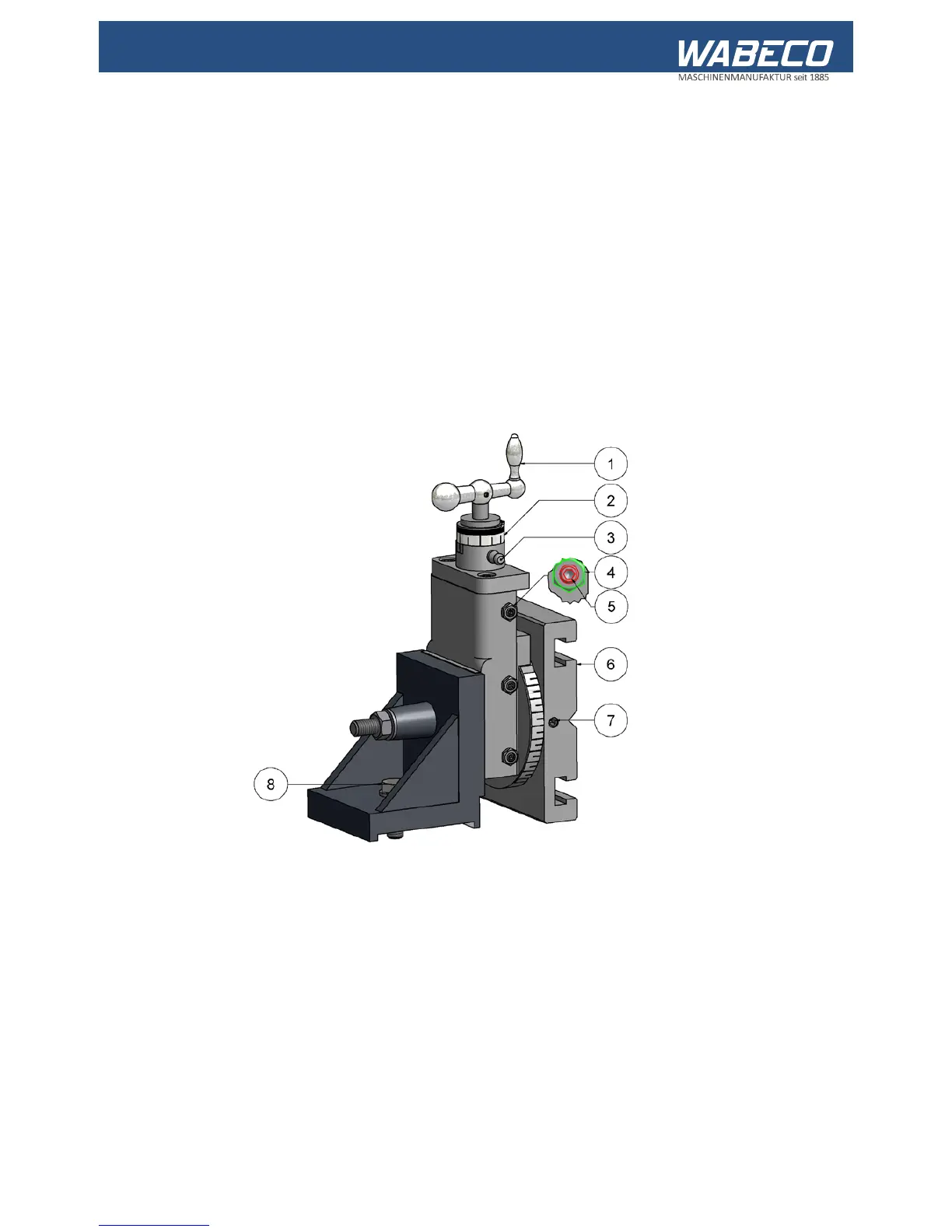

21.2. Operating elements
1. Crank for adjustment of the milling machine table in the y axis
2. Scale ring for reading off the travel distance of the y axis
3. Lubrication nipple for greasing the spindle bearing
4. Counter nut for securing the threaded pins (5)
5. Threaded pins for setting the guide play
6. Milling machine table for tensioning work pieces or vices
7. Screws for clamping the milling machine table
8. Screw for connecting the tensioning bracket with the transverse skid
21.3 Feed motion of the milling machine table
■ Use the crank (1) to move the milling machine table in the y axis (vertical).
■ Use the scale ring (2) to read off the distance of travel.
■ One interval on the scale represents a distance of 0.05 mm. One full turn of the hand wheel is the
same as a skid distance of 1 mm
■ The distance of travel of the milling machine table in the x axis (horizontal) is carried out by
adjusting the transverse skid.
