17. Shavings tank with spray protection wall (optional)

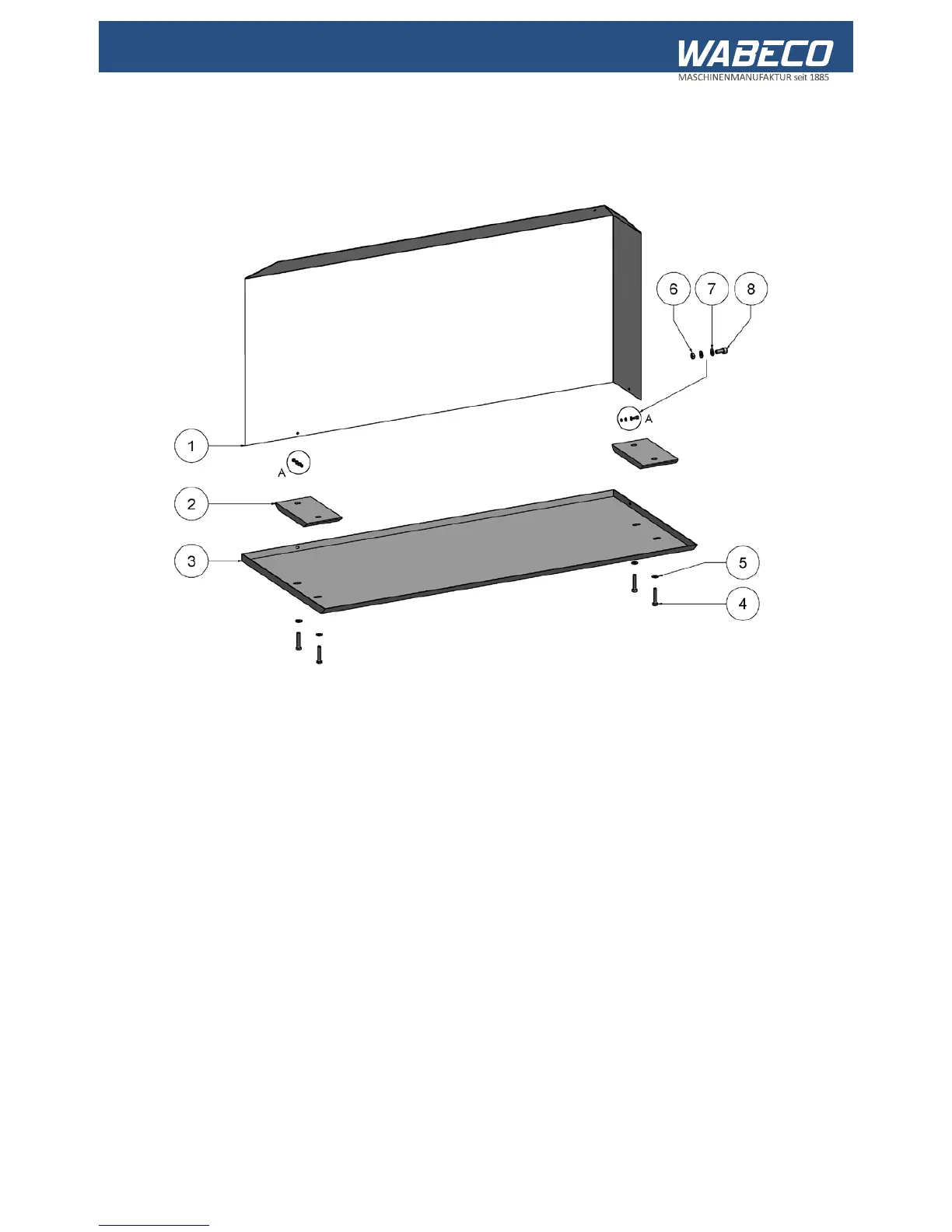

17.3 Drawing and legend

Part No. Items Order No. Description

1 1 51400235-0001 Spray protection wall

2 2 51002115-0001 Spacer feet

3 1 51400484-0001 Shavings tank

4 4 16193300008040 Screw

5 4 16112500008001 Washer

6 2 16193400004000 Nut

7 4 16112500004000 Washer

8 2 16191200004010 Screw
