17. Shavings tank with spray protection wall (optional)
17.1 Setting up the shavings tank with spray protection wall
When mounting the shavings tank with spray protection wall to a WABECO tool cabinet, the
appropriate bores are already present. The tool cabinet ensures a safe base for the lathe or shavings
tank with spray protection wall.

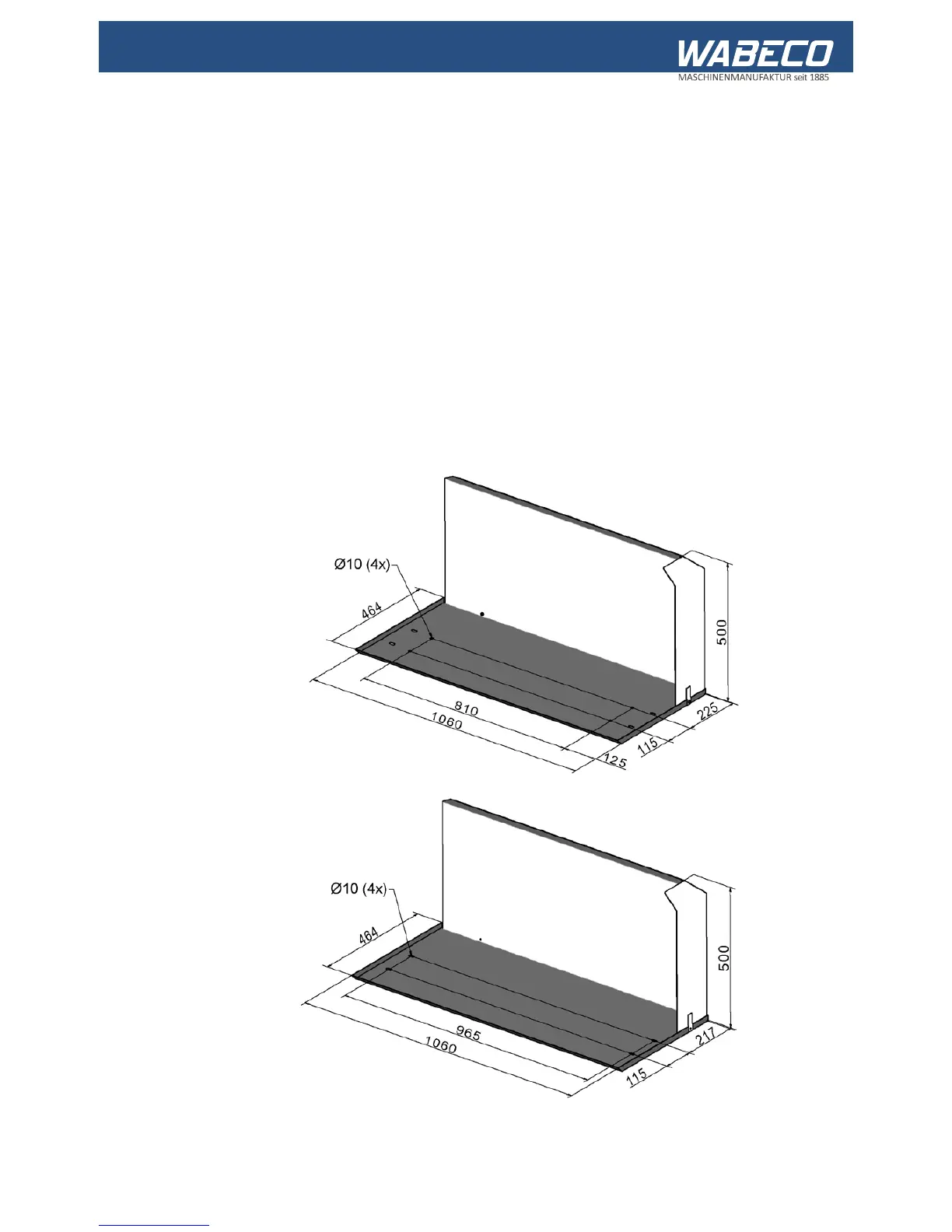

If the shavings tank with spray protection wall is secured to another suitable surface, the four through
holes must be bored into the surface by the client. For the positions of the four drilled holes for the
lathe or shavings tank with spray protection wall, see the diagram. The diameter of the through holes in
the surface must be at least 9 mm.
The supplied fixture screws are designed for the installation on a WABECO tool cabinet. If the
shavings tank with spray protection wall is attached to another, suitable surface, screws suitable for the
thickness of the surface must be used.
D2000
D2400 und D3000
