WABECO D2000 - Drawing and Legend

77
18. Coolant system (optional)

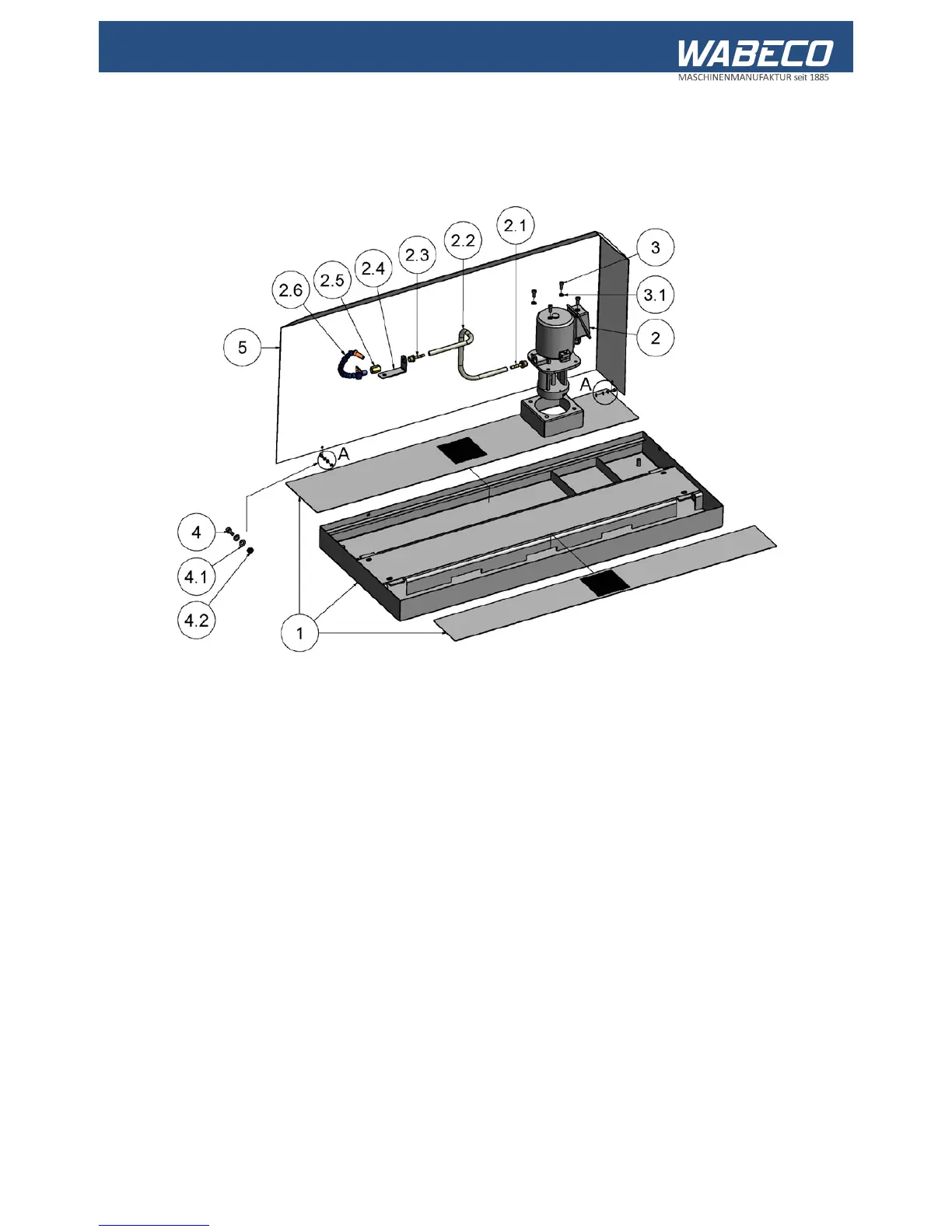

18.8 Drawing and legend
Part No. Items Order No. Description
1 1 51401163-0001
Coolant system (tank and two shelf inserts)
2 1 51500119
Coolant pump
2.1 1 51504320
Screw-fitted hose bush
2.2 1 51504218
PVC fabric hose
2.3 1 51504318
Screw-fitted hose bush
2.4 1 51400400-0001
Bracket
2.5 1 51504349
Collar
2.6 1 51502507
Coolant hose with shut-off valve
3 4 16191200006016
Screw
3.1 4 16112500006001
Washer
4 2 16191200004010
Screw
4.1
4
16112500004000
Washer
4.2 2 16193400004000
Nut
5 1 51400235-0001
Spray protection wall
