18. Coolant system (optional)

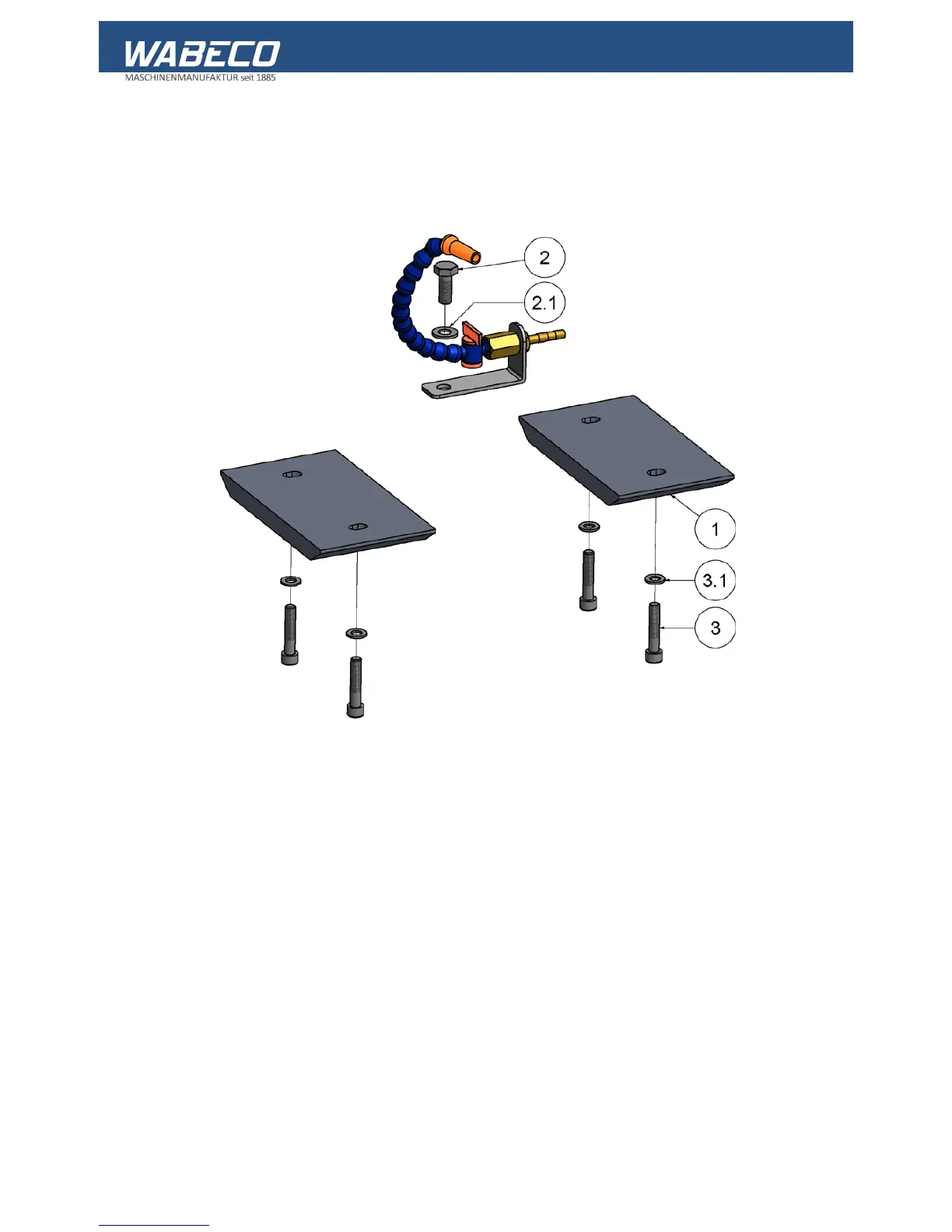

18.8 Drawing and legend

Screws for securing the lathe to the coolant system and for securing the segmented coolant hose

Part No. Items Order No. Description

1 2 51002115-0001 Spacer feet

16193300010025

Screw

2.1 1 16112500010000 Washer

3 4 16191200008040 Screw

3.1 4 16112500008001 Washer
