Operation
3.33 Door
Injury hazard due to open door or window!
Can cause serious injury or death.
• Close the door and windows before starting machine travel
Opening the door from the outside:
☞ Press door lock A
Locking the door:
☞ Turn the key in door lock A to the left (L)
☞ The door is locked
Unlocking the door:
☞ Turn the key in door lock A to the right (R)
☞ The door is unlocked
Opening the door from the inside:
☞ Press the lever on the inside left on door lock B down
Securing an open door:
☞ Press the door against bracket C of arrester D with an audible click

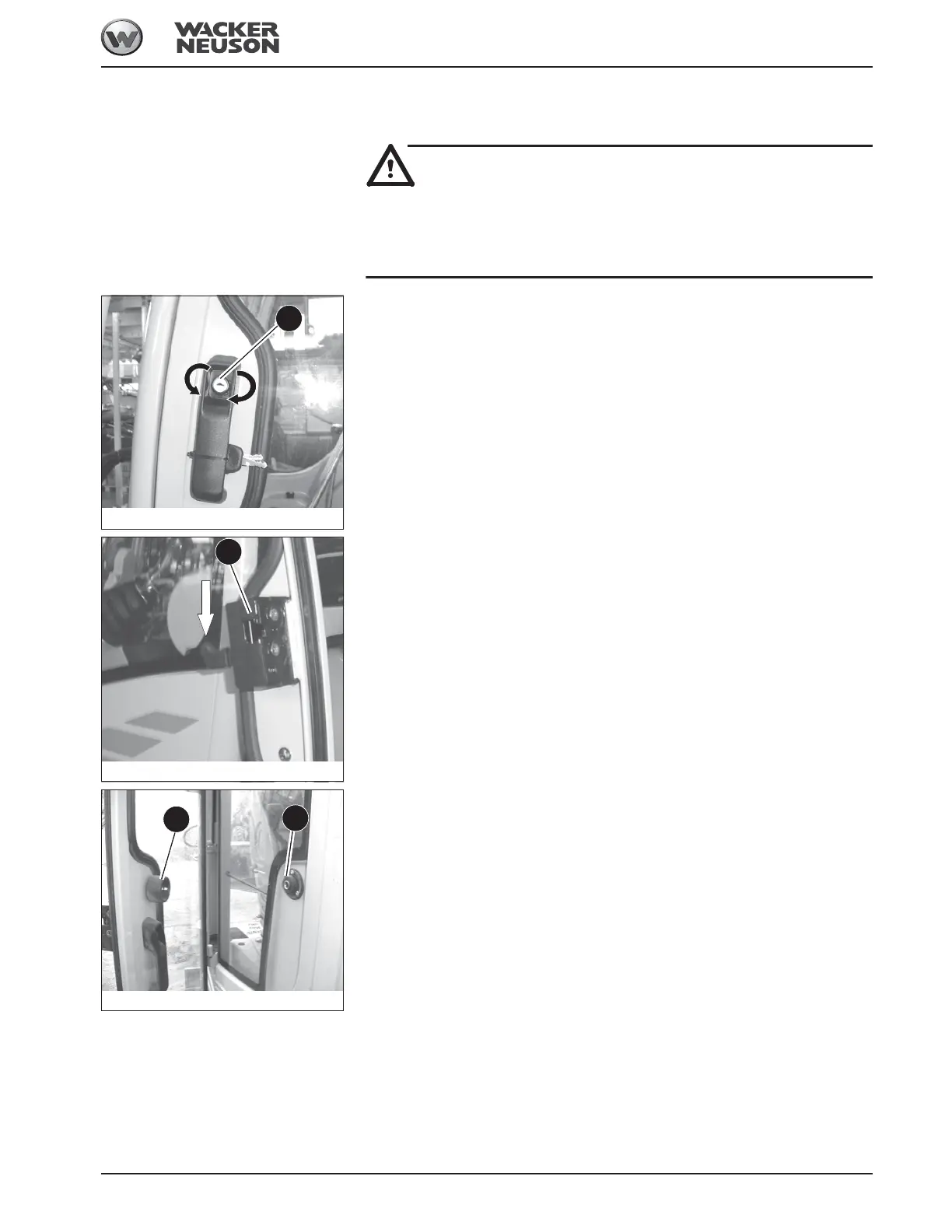

Fig. 140: Outside door opener and lock
A
R
L
Fig. 141: Inside door opener
B
Fig. 142: Door arrester
C
D
