OM 25-3503 us – Edition 4.1 * 2503_3503b530.fm 5-29
Maintenance
Lubrication points on the stabilizer blade
Lubricate lubrication points A once a day.
Additional lubrication points on slewing stabilizer blade (option 3503)
z Apply grease to lubrication points A every 50 o/h or once a week.
Lubricating the teeth of the live ring
Crushing hazard! Do not tilt or rotate the upper carriage dur-
ing lubrication.
Can cause serious injury or death.
• Do not rotate the upper carriage.
• Do not tilt the upper carriage if the machine is equipped with the VDS
option.
• – see chapter 3.23 Parking the machine on page 3-34
Lubricate only over a pit.

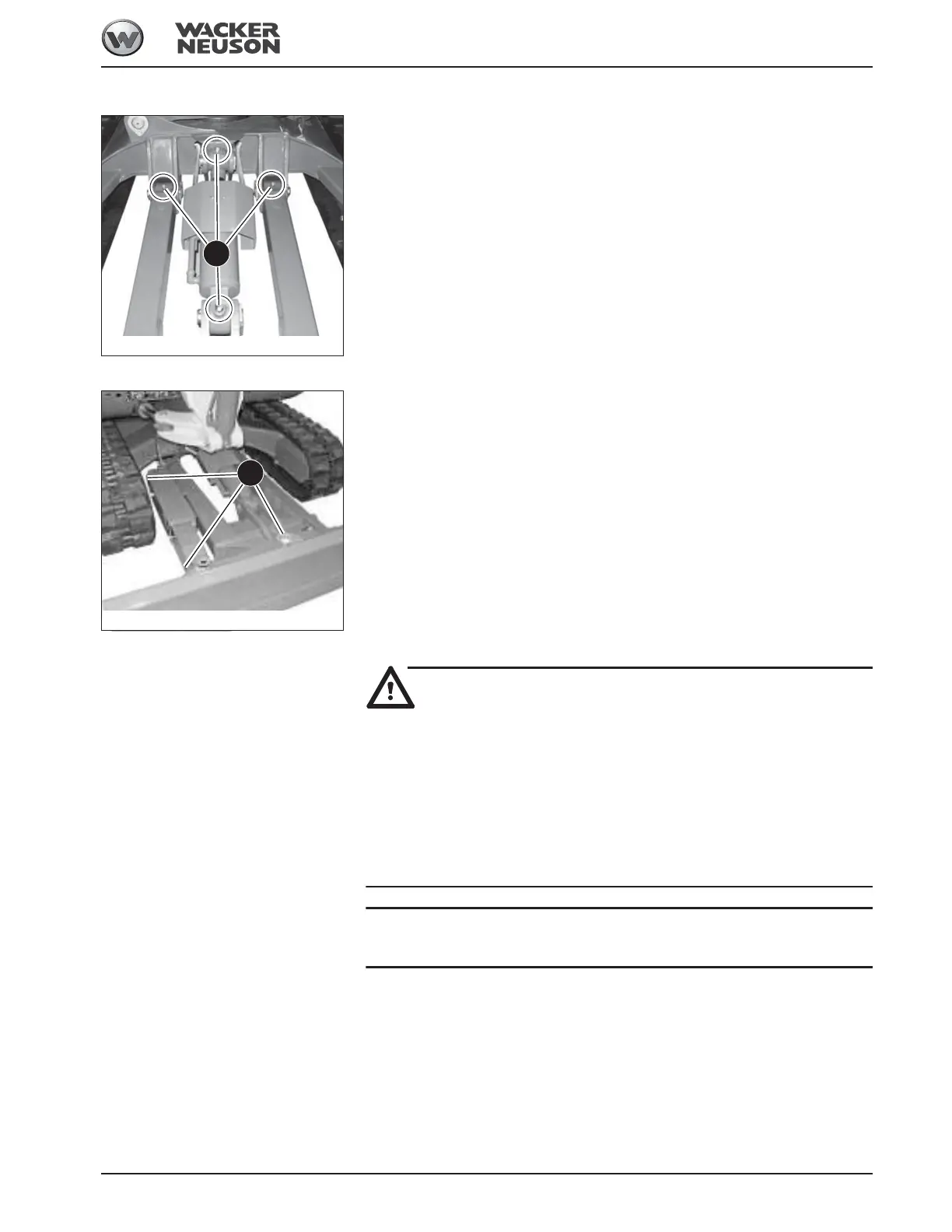

Fig. 293: Lubrication points on the stabilizer blade
A
Fig. 294: Lubrication points on slewing stabilizer blade
A
