3-66 OM 25-3503 us – Edition 4.1 * * 2503_3503b330.fm
Operation

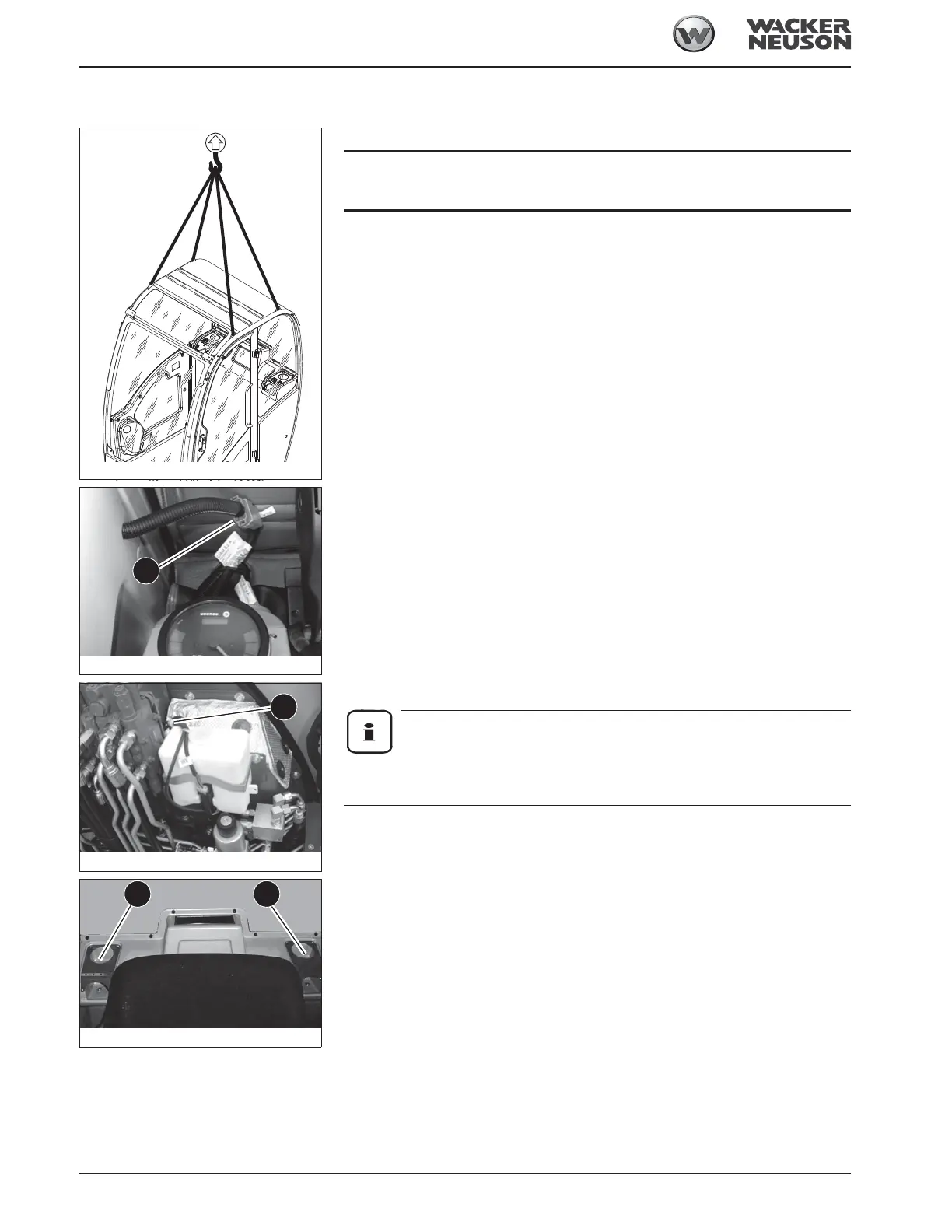

3.42 Installing the cabin/canopy
☞ Install the cabin carefully
Inspect the cabin for damage as you install it.
☞ Connect central plug B (X28) with the cabin wiring.
☞ Connect the hose of the washer fluid tank with non-return valve C.
Information!
Installing non-return valve C is not necessary if the machine is equipped with a
canopy.
☞ Tighten both screws E to 87 Nm (64 ft.lbs).
Fig. 163: Central plug
B
Fig. 164: Washer fluid tank hose
C
B
C
Fig. 165: Cabin attachment
E E
