3-100 OM 25-3503 us – Edition 4.1 * * 2503_3503b340.fm
Operation
Operation
Information!
The Powertilt function is enabled once the machine is started. The auxiliary
hydraulics and boom swivel are disabled.
Control lever on the left (Powertilt)
The Powertilt functions are operated with the control lever on the left.
Control lever on the right (if equipped with auxiliary hydraulics and proportional controls)
The Powertilt functions are operated with the control lever on the right.
Information!
The auxiliary hydraulics pedal is locked. The auxiliary hydraulics is operated
via the control lever on the left – see chapter Control lever on the left on
page 3-81.
3.55 Connections for auxiliary hydraulics

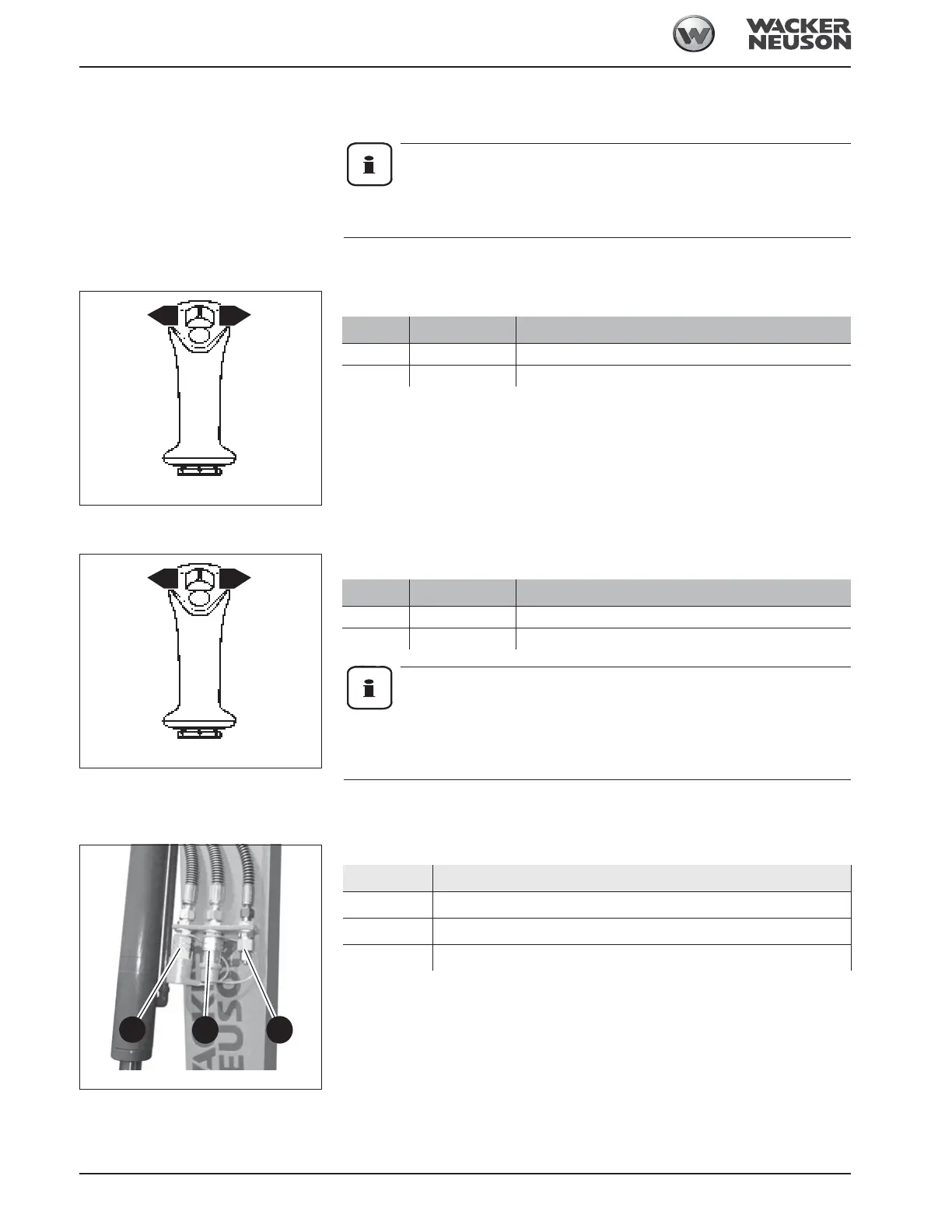

Fig. 233: Control lever on the left
A
B
Position Lever Function
•A ☞ To the left
➥ Powertilt turns to the left
•B ☞ To the right
➥ Powertilt turns to the right
Fig. 234: Control lever on the right
A
B
Position Lever Function
•A ☞ To the left
➥ Powertilt turns to the left
•B ☞ To the right
➥ Powertilt turns to the right
Fig. 235: Connections on the left
C
BA
Connection Stick (left/right)
A Grab (option)
B Auxiliary hydraulics (option)
C 3rd control circuit (option)
