Wacker Neuson 2503 - Operation; Control lever on the left (SAE controls); Control lever on the right (SAE controls)

OM 25-3503 us – Edition 4.1 * 2503_3503b340.fm 3-77
Operation
3.46 Changeover valve for SAE/ISO controls (option)
Warning!WARNING
Accident hazard due to modified control lever operation!
Can cause serious injury or death.
• Check the control mode that has been selected before starting work
• Always secure wing nut J on the changeover lever of the directional valve
Control lever on the left
SAE controls
Control lever on the right
SAE controls

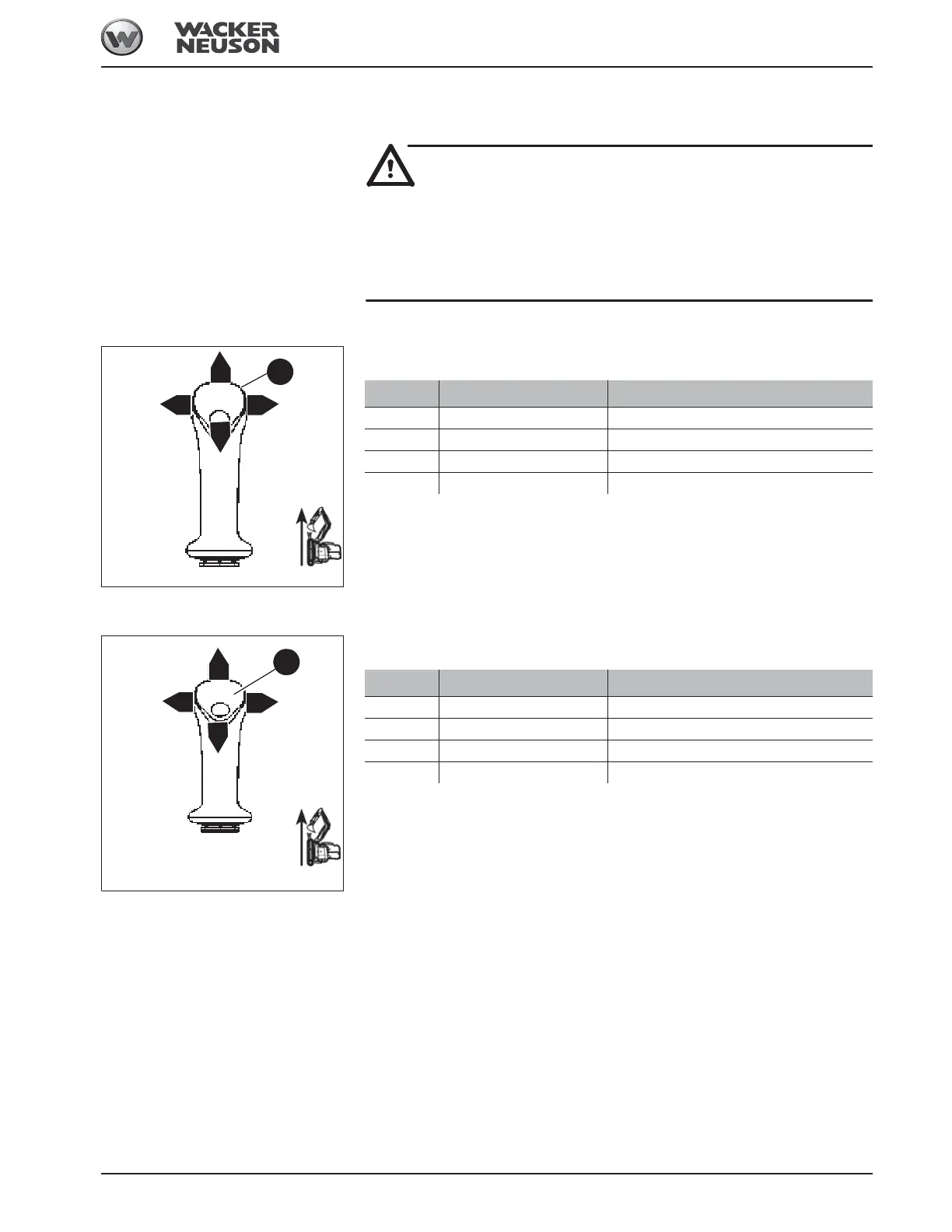

Fig. 184: Control lever on the left (SAE controls)
D
C
A
B
1
Position Lever Function
•A ☞ Forward
➥ Boom is lowered
•B ☞ To the right
➥ Upper carriage rotates to the right
•C ☞ Backward
➥ Boom is raised
•D ☞ To the left
➥ Upper carriage rotates to the left
Fig. 185: Control lever on the right (SAE controls)
H
G
E
F
2
Position Lever Function
•E ☞ Forward
➥ Stick is extended
•F ☞ To the right
➥ Bucket is tilted out
•G ☞ Backward
➥ Stick is retracted
•H ☞ To the left
➥ Tilt in the bucket
