Wacker Neuson 2503

3-58 OM 25-3503 us – Edition 4.1 * * 2503_3503b330.fm
Operation
3.35 Engine cover
Canopy
Opening:
☞ Unlock the lock with starting key B
☞ Pull out the lower handle A
☞ Open the engine cover upward
Closing:
☞ Firmly press down the engine cover until the lock engages with an audible click
Cabin (option)
Opening:
☞ Pull out the lower handle A
☞ Open the engine cover upward
Closing:
☞ Firmly press down the engine cover until the lock engages with an audible click
3.36 Valve compartment cover
Canopy
Opening:
☞ Unlock the lock with starting key B
☞ Pull out handle C
☞ Open the valve compartment cover upward
Closing:
☞ Firmly close the valve compartment cover until the lock engages with an audible click
Cabin (option)
Opening:
☞ Pull out handle C
☞ Open the valve compartment cover upward
Closing:
☞ Firmly close the valve compartment cover until the lock engages with an audible click

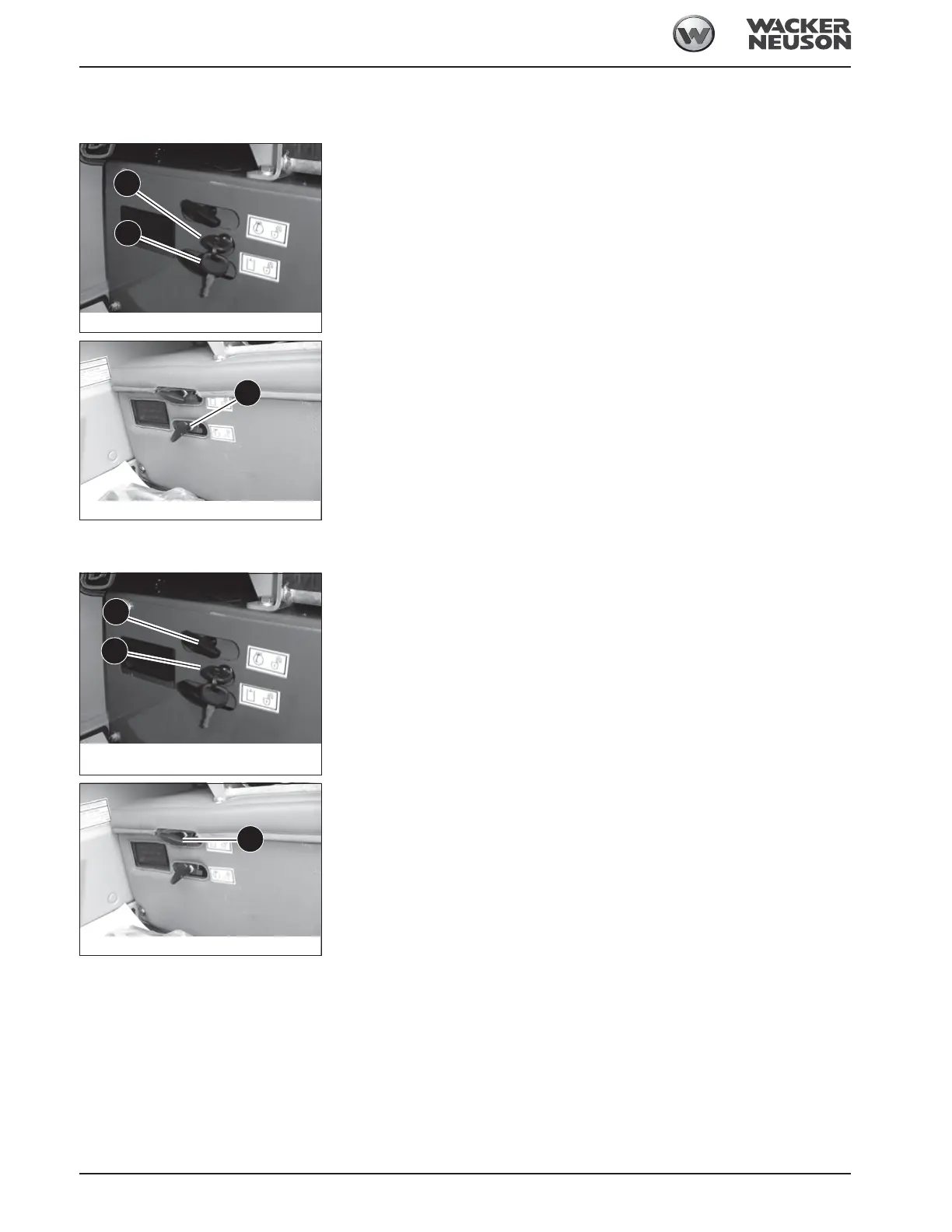

Fig. 147: Engine cover lock (on machine equipped with canopy)
B
A
Fig. 148: Engine cover lock (on machine equipped with cabin)
A
Fig. 149: Valve compartment cover lock (on machine equipped
with canopy)
B
C
Fig. 150: Valve compartment cover lock
L
C
