3-96 OM 25-3503 us – Edition 4.1 * * 2503_3503b340.fm
Operation
5 Release the stabilizer-blade lever and foot-operated push button E.
➥ The quickhitch closes.
➥ Check pin F must be fully retracted.
6 Press switch D to position 2.
The quickhitch is disabled and the buzzer does not sound any longer.
Shovel bucket operation
With some restrictions, Wacker Neuson backhoe buckets can also be used for shovel
bucket operation.
NOTICE
Do not tilt the bucket fully back in shovel bucket operation (see Fig. 226),
otherwise the bucket base can touch and damage the stick.

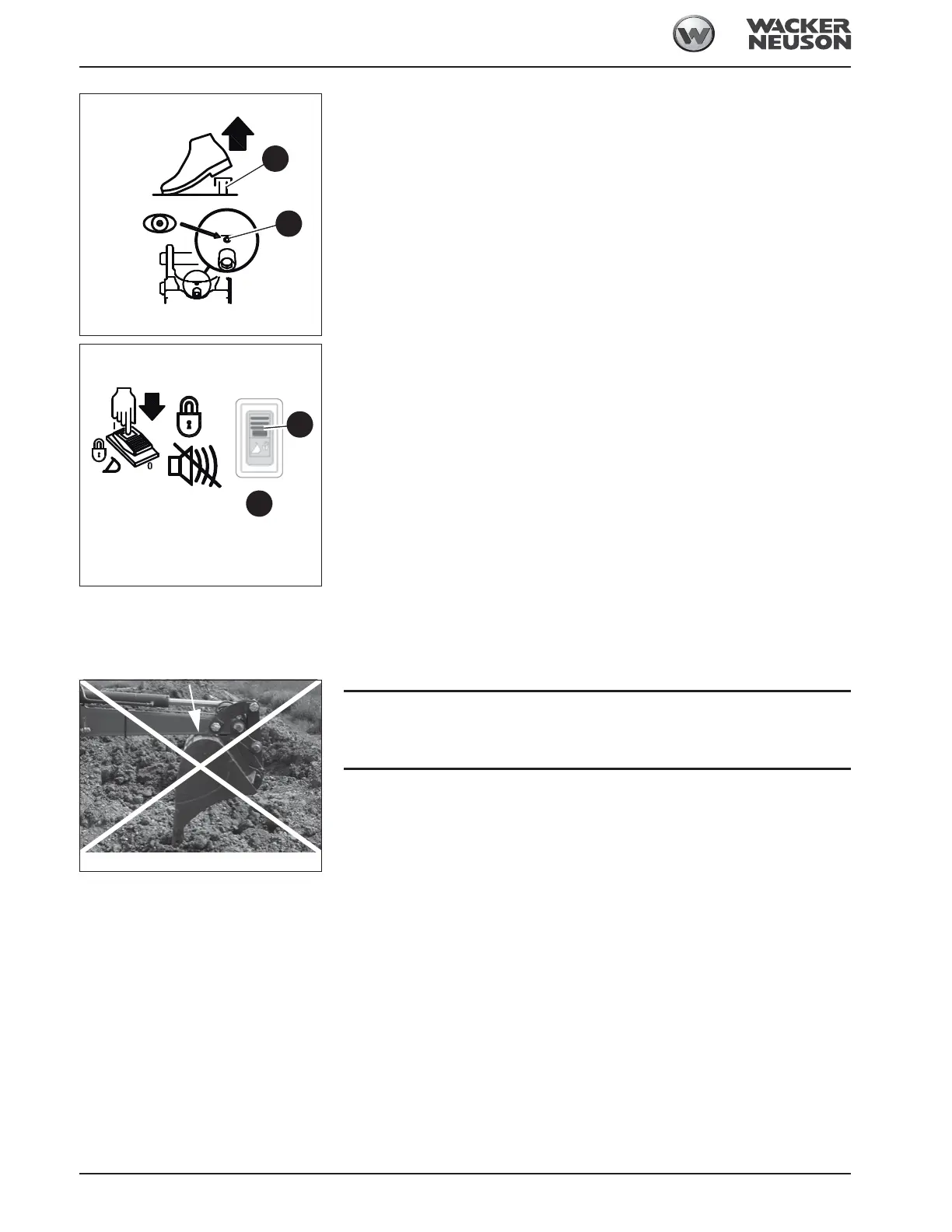

Fig. 224:
E
F
Fig. 225:
D
2
Fig. 226: Possible damage
