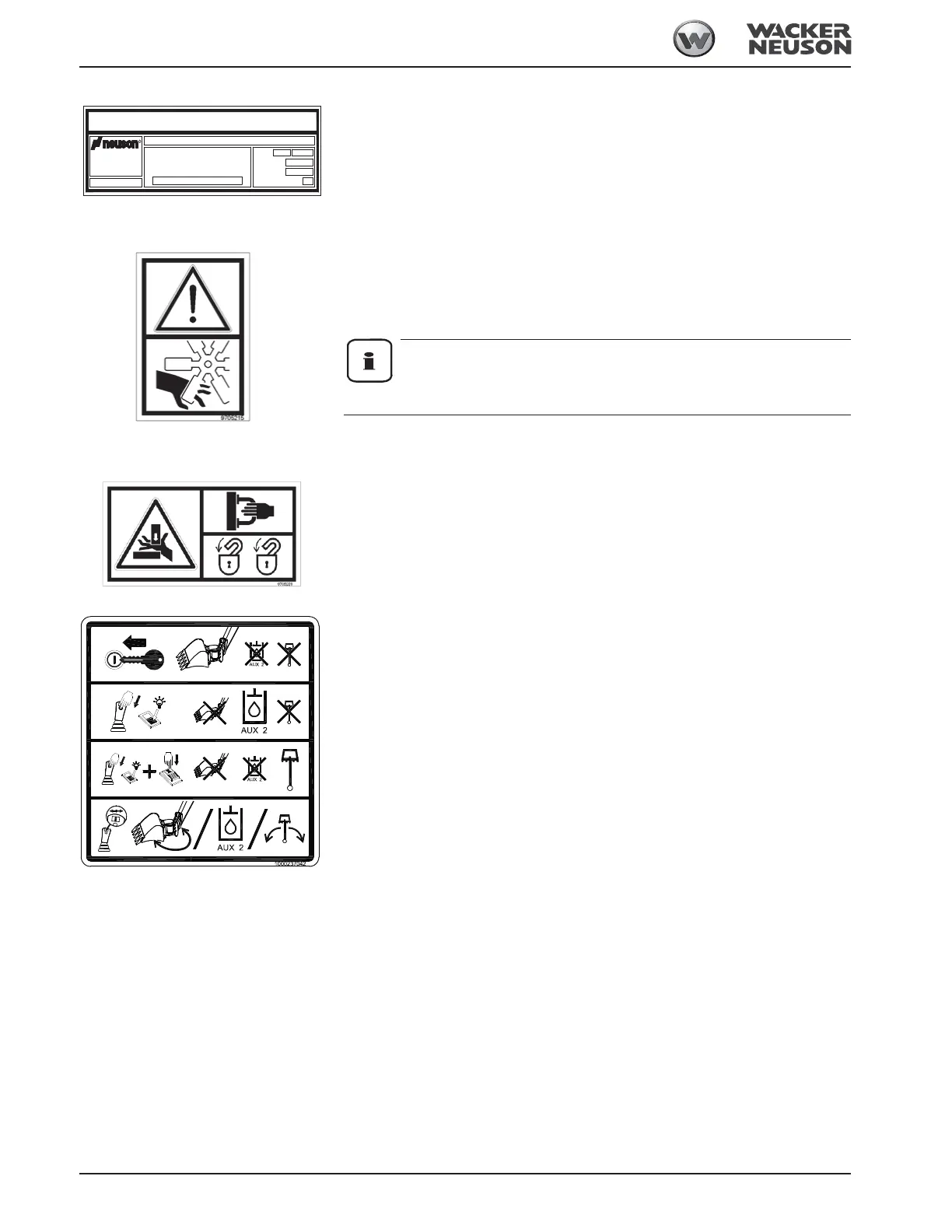

1-16 OM 25-3503 us – Edition 4.1 * * 2503_3503b110.fm
Introduction
Meaning
Provides information on the directives this cabin complies with.
Cabin no longer complies with these directives if it is modified
Location
Inside the cabin.
Meaning
1. CAUTION, rotating fan!
2. Stop the engine before opening the engine cover!
3. Stay clear of the engine compartment if the fan is still running!
Information!
ALWAYS follow the instructions on the safety label!
Location
On the engine cover and in the engine compartment
Meaning
1. CAUTION, danger of being caught up!
2. Always use the handles to open and close the front window.
3. Always lock the front window with both locks!
Location
On the front window.
Meaning (option 3503)
• The Powertilt function is enabled once the excavator is started.
• Not assigned.
• Not assigned.
• The unit is operated with the slide switch on the control lever on the left (control lever on
the right with auxiliary hydraulics and proportional controls).
Location
On the headliner
– see chapter 3.54 Powertilt (option 3503) on page 3-97
WARNING: The operator protection provided by a ROPS/FOPS/TOPS is reduced if it altered, subjected to an
upset or has structural damage, and it must be replaced. Any alternations or repairs without the written consent of
the manufacturer will void the warranty and certification of the structure.
ROLLOVER PROTECTIVE STRUCTURE
MADE IN AUSTRIA
BAUMASCHINEN GmbH
Haidfeldstraße 37
4060 Linz-Leonding
R
At the time of installation, when properly installed in
accordance with the manufacturer's instructions on a
machine that has not been altered to exceed the
certification test weight, this structure meets criteria:
ISO 3449 - ISO 3471 - ISO 12117
9705503
2503 - 3003
3503 - 3703
TEST WEIGHT (kg):
LK - 88
MODEL:
FOR USE ON:
8800AR50
4020
Fig. 27: ROPS/FOPS/TOPS label (symbolic representa-
tion)
Fig. 29: Front window label
Fig. 30: Powertilt
