OM 25-3503 us – Edition 4.1 * 2503_3503b110.fm 1-21
Introduction
Description
This label describes the functions of the pedals and control levers (Operating Pattern A –
ISO controls (Europe) and Operating Pattern A).
Check before starting the machine the operating pattern that has been chosen.
– see chapter 3.46 Changeover valve for SAE/ISO controls (option) on page 3-77
Location
On the headliner.
Description
This label describes the functions of the pedals and control levers (Operating Pattern A –
ISO controls (Europe) and Operating Pattern A).
Check before starting the machine the operating pattern that has been chosen.
– see chapter 3.46 Changeover valve for SAE/ISO controls (option) on page 3-77
Location
On the headliner.
Description
Explains the joystick functions (operating pattern “B”/SAE).
Check before starting the machine the operating pattern that has been chosen!
– see chapter 3.46 Changeover valve for SAE/ISO controls (option) on page 3-77
Position (option)
On the headliner.

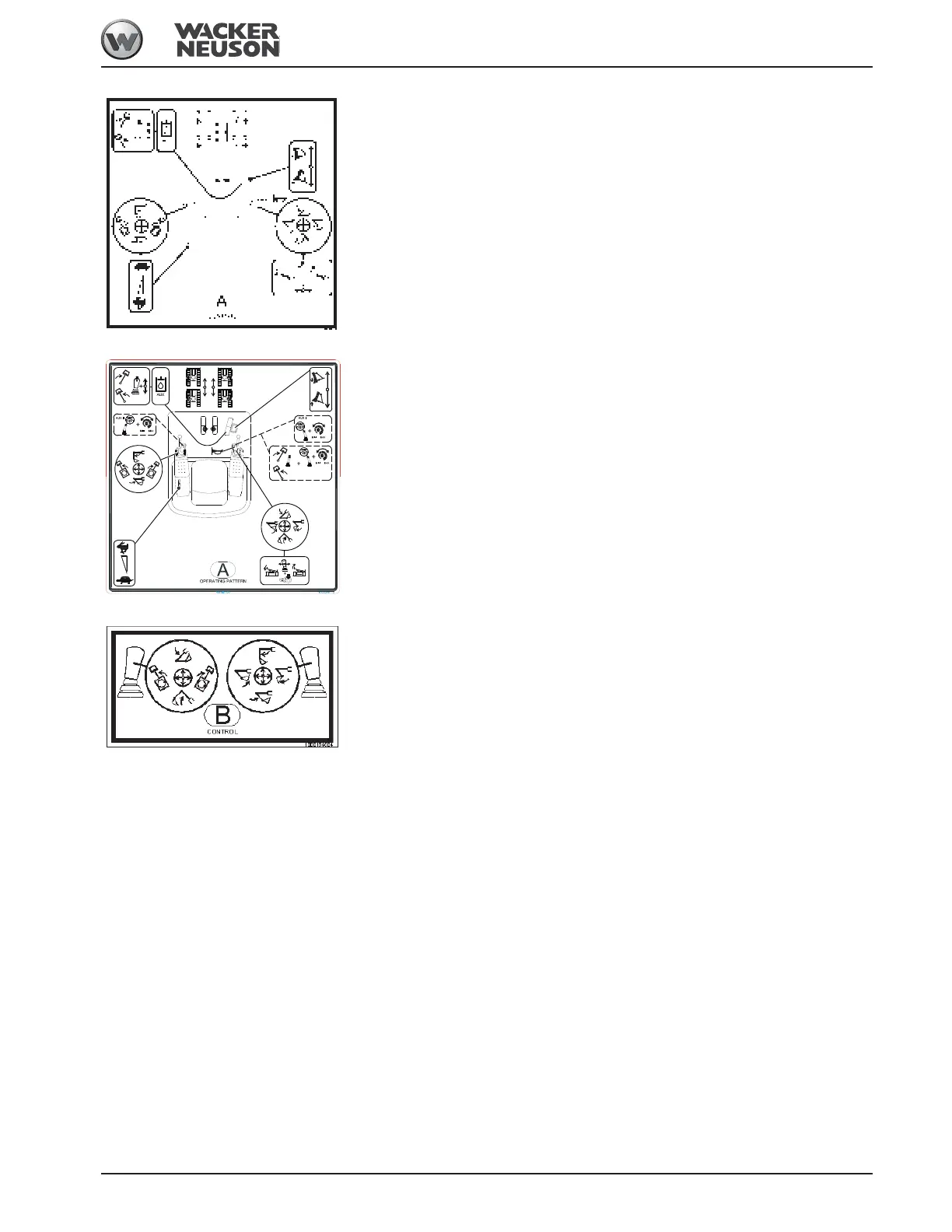

Fig. 45: A/ISO operating pattern functions Tier IV
Fig. 46: A/ISO operating pattern functions Tier III
Fig. 47: Operating pattern B/SAE (option)
