1-26 OM 25-3503 us – Edition 4.1 * * 2503_3503b110.fm
Introduction
Meaning (option 3503)
• The Powertilt function is enabled once the excavator is started.
• Not assigned.
• Not assigned.
• The unit is operated with the slide switch on the control lever on the left (control lever on
the right with auxiliary hydraulics and proportional controls).
Location
On the headliner
– see chapter 3.54 Powertilt (option 3503) on page 3-97
Meaning
Bear in mind the permissible (pay)load according to the table.
– see chapter 6.13 Lift capacity table 2503 on page 6-14
– see chapter 6.14 Lift capacity table 3503 on page 6-15
– see chapter 6.16 Lift capacity table 3503 VDS on page 6-17
Location
On the headliner
Meaning (option)
This label describes the functions of the hydraulic quickhitch.
Location
On the headliner
– see chapter 3.53 Hydraulic quickhitch (option) on page 3-92
Meaning (option)
This label describes the control lever functions for machines equipped with proportional
controls.
Location
On the headliner
– see chapter 3.47 Control lever with proportional controls (option): overview on page 3-79

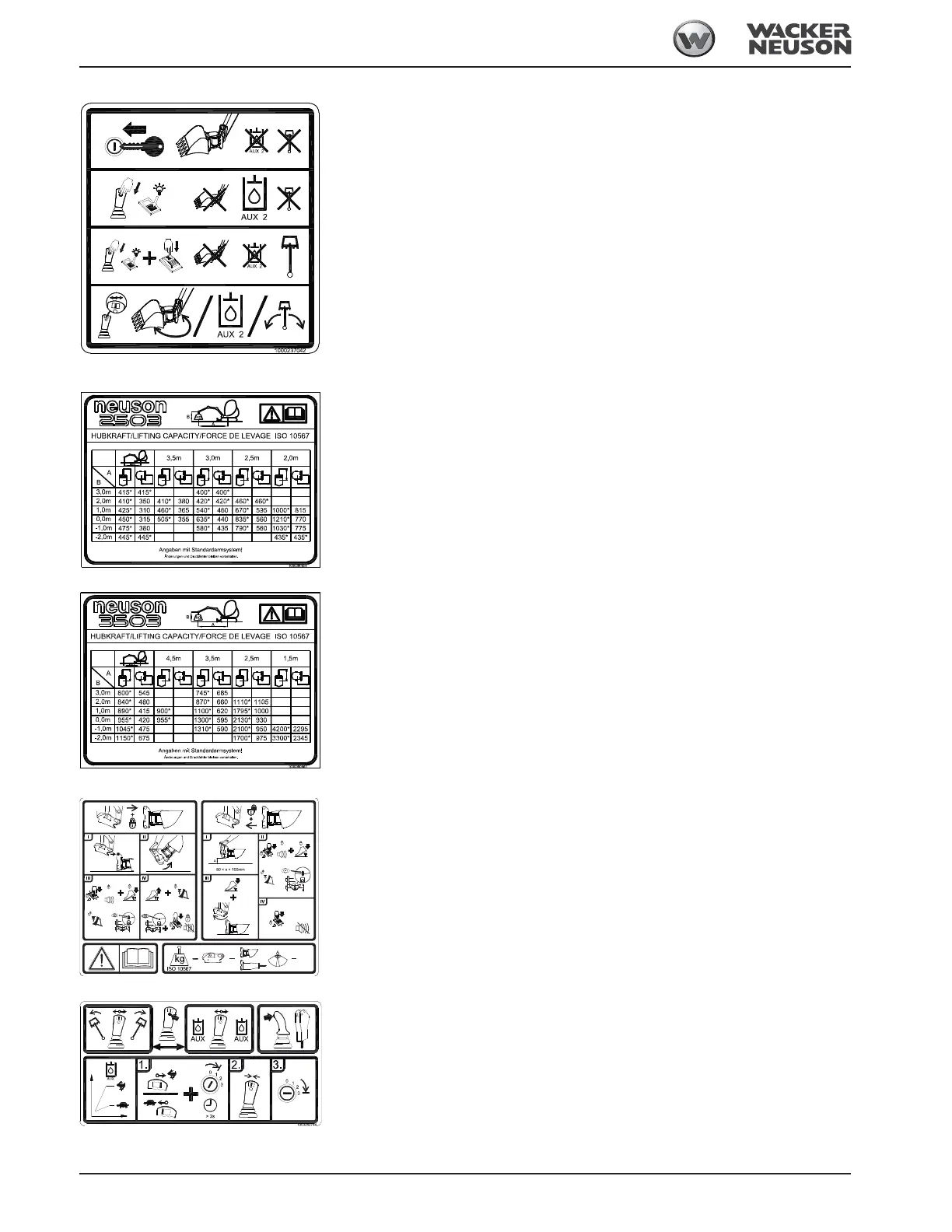

Fig. 66: Powertilt
Fig. 67: Lift capacity table 3503
Fig. 67: Lift capacity table 2503
Fig. 68: Hydraulic quickhitch
Fig. 69: Control lever functions (proportional controls)
