Wacker Neuson 2503 User Manual

OM 25-3503 us – Edition 4.1 * 2503_3503b320.fm 3-15
Operation

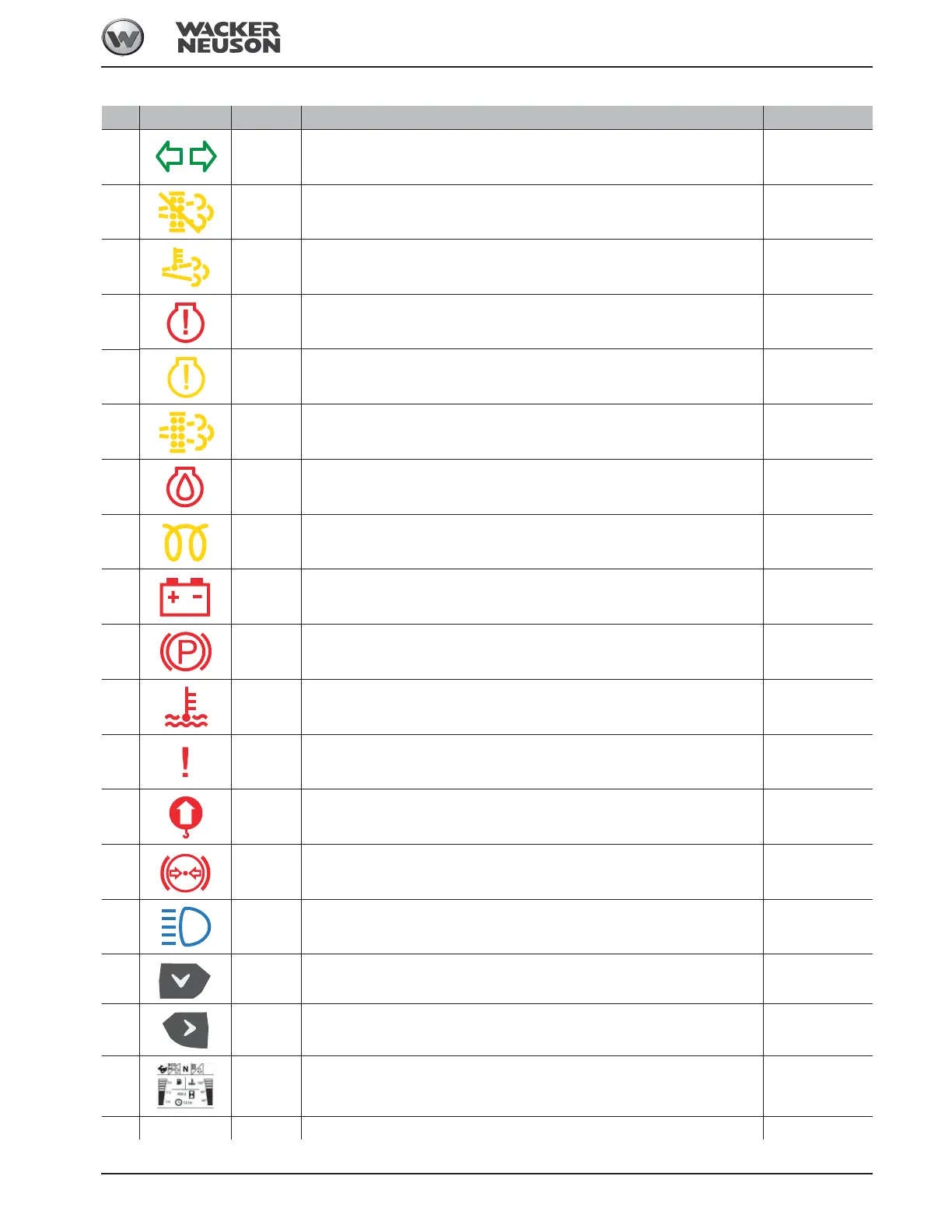

No. Symbol Color Designation See
1
Green (not assigned) -
2
Yellow PMC regeneration disabled/interrupted 3-112; 3-111
3
Yellow High exhaust-gas temperatures 3-109; 3-111
4
Red Engine stop 4-4; 3-111
5
Yellow Engine warning 4-4; 3-111
6
Yellow PMC regeneration 3-109; 3-111
7
Red Engine oil pressure 4-4
8
Yellow Preheating 3-22
9
Red Charge indicator light 3-22, 4-5
10
Red (not assigned) --
11
Red Coolant temperature 4-5
12
Red General malfunction 4-5
13
Red Safe load indicator light --
14
Red (not assigned) --
15
Blue (not assigned) --
16
--- Selector button (multifunctional display) --
17
--- To next menu page/set (multifunctional display) --
18
--- Multifunctional display --
19
--- VDS switch (option) 3-87
