Downhill
When driving downhill, the front window of the cabin must face downhill.
Set the stabilizer blade downhill.
Raise the boom 20 – 30 cm (8 – 12 in) off the ground and position it straight ahead at the
center of the machine.
Do not exceed a maximum sloping angle of 15°.
Lateral angle of inclination
Do not exceed a maximum lateral angle of inclination of 10°.
On lateral inclinations over 10°, pile up material to create a level surface that can be used
as a platform for the machine.

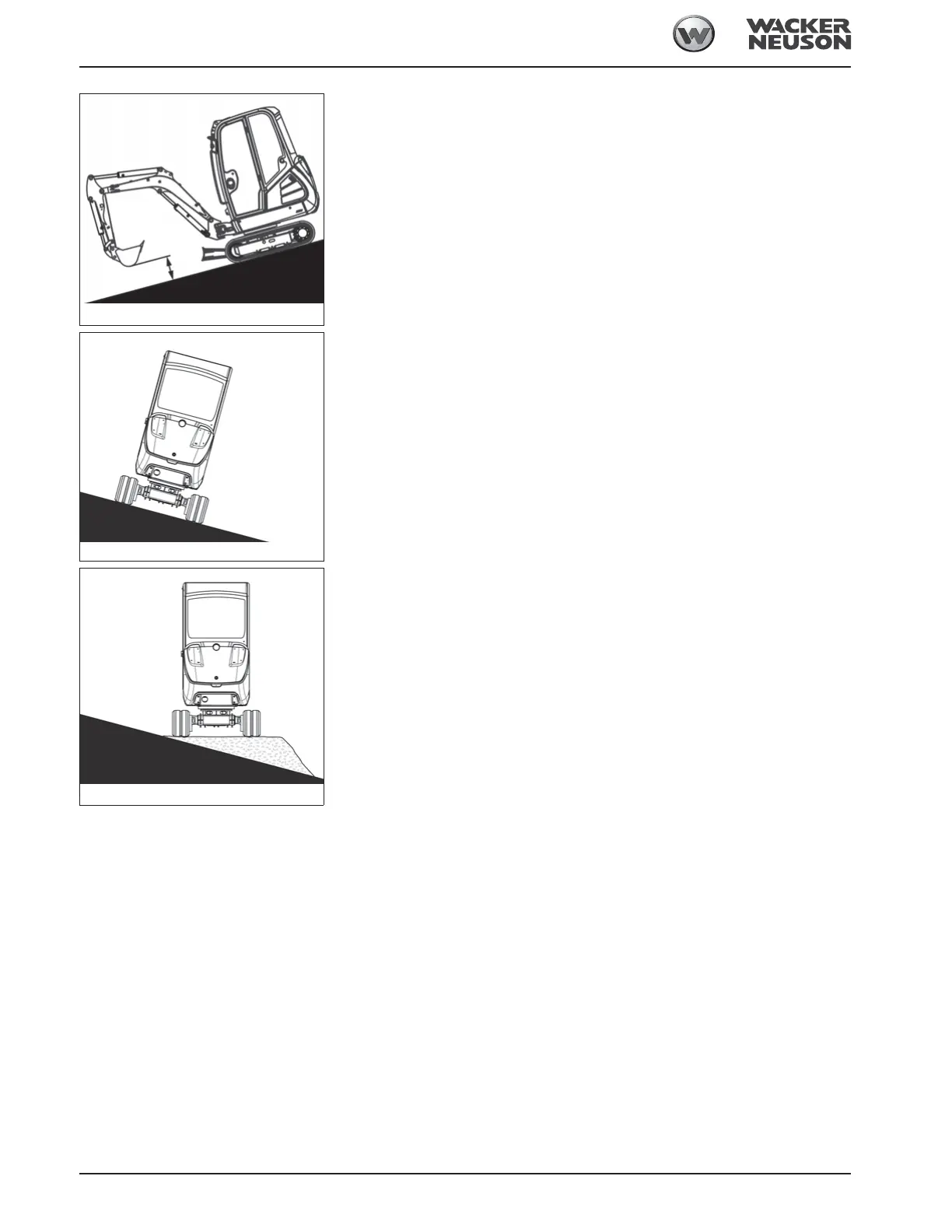

Fig. 103: Driving downhill (symbolic representation)
< 15°
(
8
–
1
2
i
n
)
2
0
–
3
0
c
m
Fig. 104: Driving downhill (symbolic representation)
< 10°
Fig. 105: Driving downhill (symbolic representation)
> 10°
