Operation G 150 / 180 / 240
wc_tx000867gb.fm 36

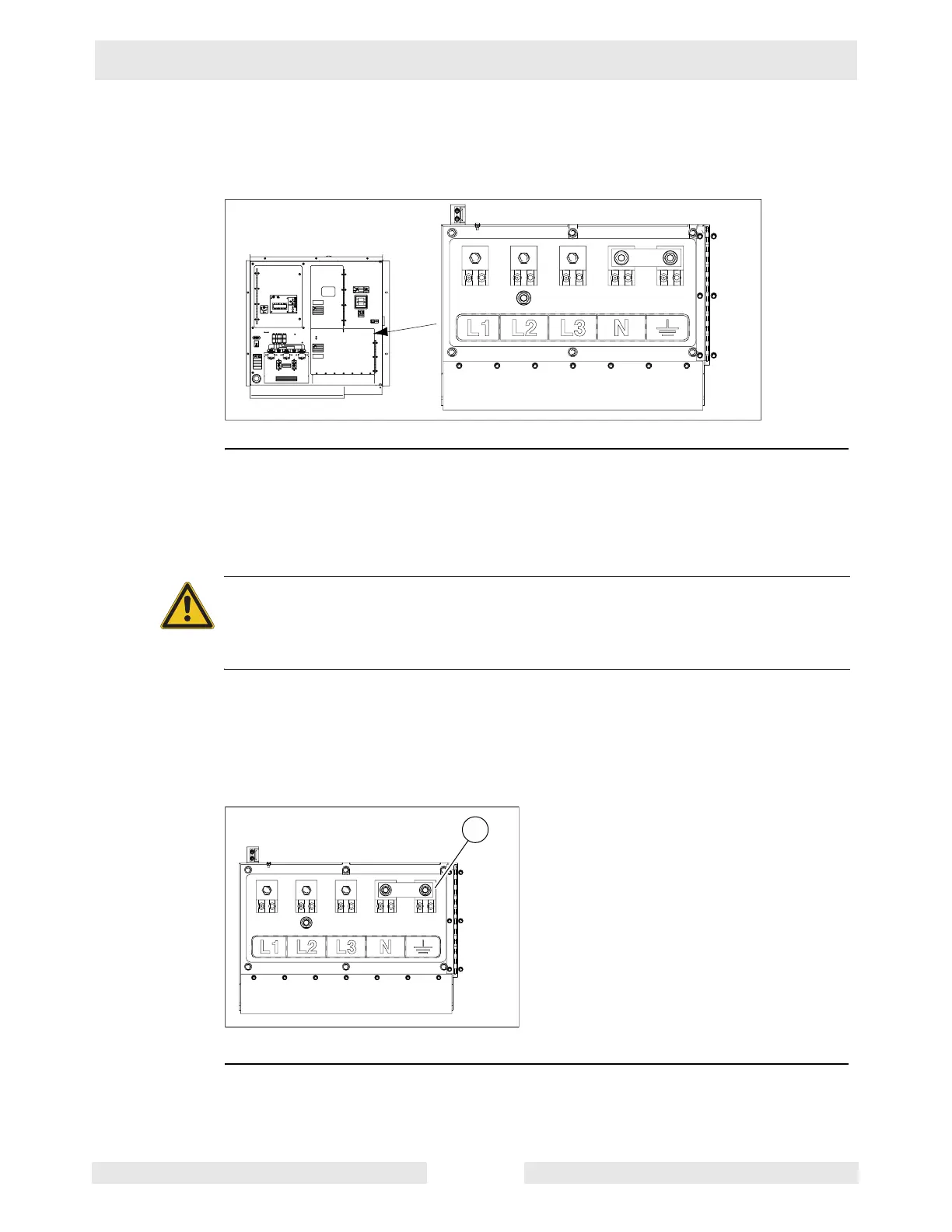

2.14 Connection Lugs
Location and
description
The customer connection lugs are located on the lower right side of the control box
behind a hinged terminal door. The lugs provide connection points for attachment
of outside loads.
Connecting to
the lugs
Make connections to the lugs by running the power cables up through the slots
in the bottom of the panel and into the lug.
Use a 5/16-inch or 8 mm Allen wrench to tighten the cable connections in
place.
2.15 Ground connection
Location
The ground connection (r) is located next to the connection lugs.
Connection
Connect the ground lug to a good earthen ground for proper operating safety in
compliance with NEC and local standards.
wc_gr005273
WARNING
Electrocution hazard! High voltage is present inside the hinged terminal door when
the generator is operating.
f Do not open the hinged terminal door unless the engine is stopped.
r
wc_gr005280
