Maintenance G 150 / 180 / 240
wc_tx000868gb.fm 54
3.5 Replacing the Racor® Filter Element
When
Replace the filter element after every 750 hours of operation, or whenever the red
filter service indicator appears.
Prerequisites
Engine is stopped
Replacement filter element and O-rings are available
Shop towels are available to wipe up spills
Procedure
Follow the procedure below to replace the filter element.

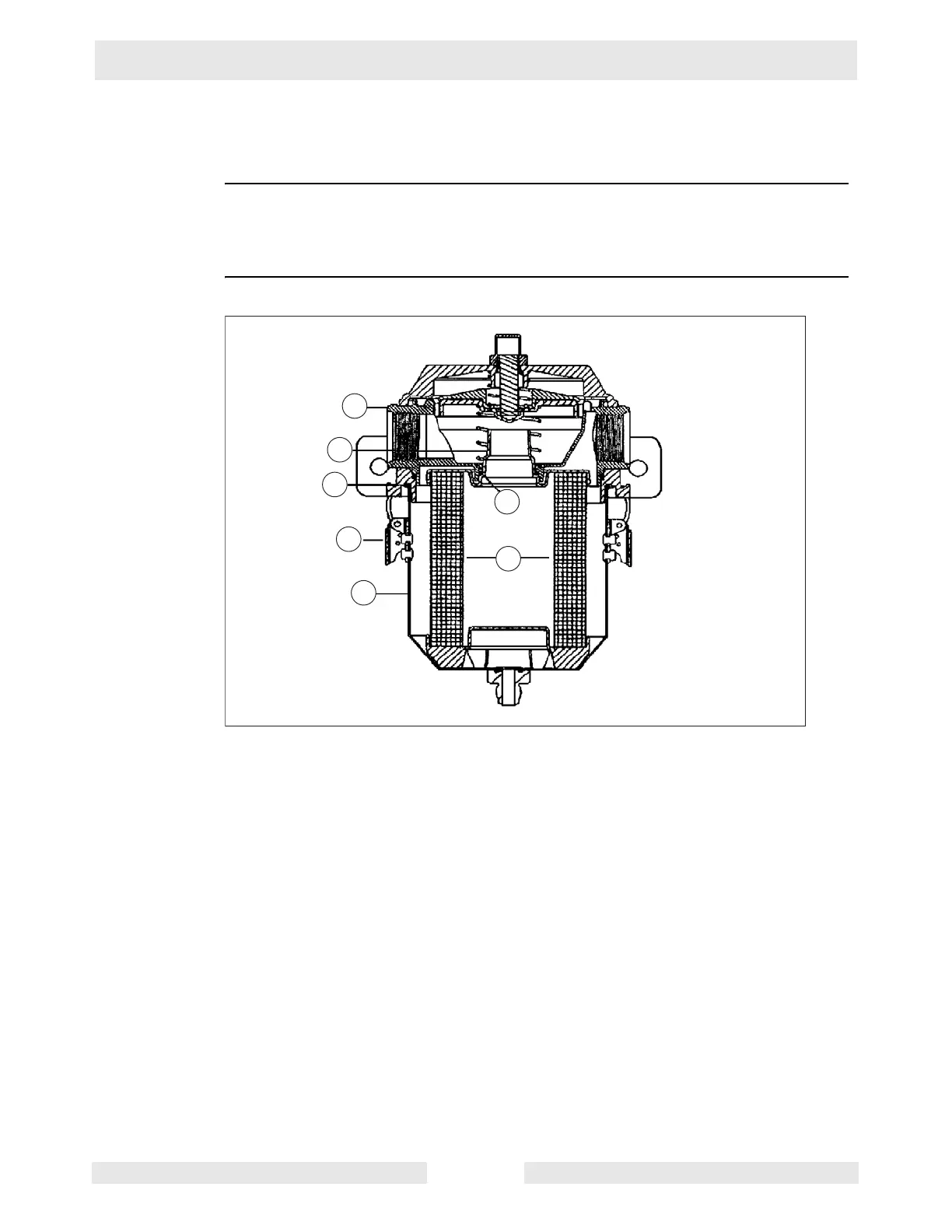

1. Release the latches (1) holding the canister (3) to the filter head assembly (2).
2. Drop the canister to expose the filter element (4). A small amount of oil may be
present inside the canister, so use caution to avoid spills.
3. Pull the filter element down to remove it.
4. Remove the O-ring (5) from the top of the filter element end cap (7). Also,
remove the O-ring (6) from the bottom of the filter head assembly.
Note: Dispose of the used filter element and O-rings in accordance with local envi-
ronmental protection regulations.
5. Install a new O-ring on the bottom of the filter head assembly. Also, verify that a
new O-ring is on the top end cap of the replacement filter element.
6. Push the filter element end cap into the hole in the bottom center of the filter
head assembly.
7. Replace the canister and align the latches on the canister with the boss on the
filter head assembly.
8. Clamp the latches and snap them closed.
wc_gr006384
3
1
6
7
2
5
4
