2.16 Convenience receptacles
Description
The generator is equipped with :
three 120V/240V twist-lock receptacles (m) rated at 50A
two 120V duplex receptacles (n) with ground fault interrupts (GFI)
Receptacles do not connect through the main line circuit breaker. Each receptacle
is protected by its own circuit breaker (k,l).
Power to the receptacles is available anytime the generator is running, even with
the main line circuit breaker open.
Operating
notes
When the voltage selector switch is in the 480V / 3Ø position, voltage at the
duplex receptacles is 139V, and voltage at the 30/50A receptacles is 139/240V.
When the voltage selector switch is in the 208V / 3Ø position, voltage at the
30/50A receptacles is 120/208V.
When the voltage selector switch is in the 208V / 3Ø position, the voltage can
be adjusted with the voltage adjustment rheostat (f) to 240V / 3Ø. The voltage
at the duplex receptacles is 139V, and voltage at the 30/50A receptacles is
139/240V.

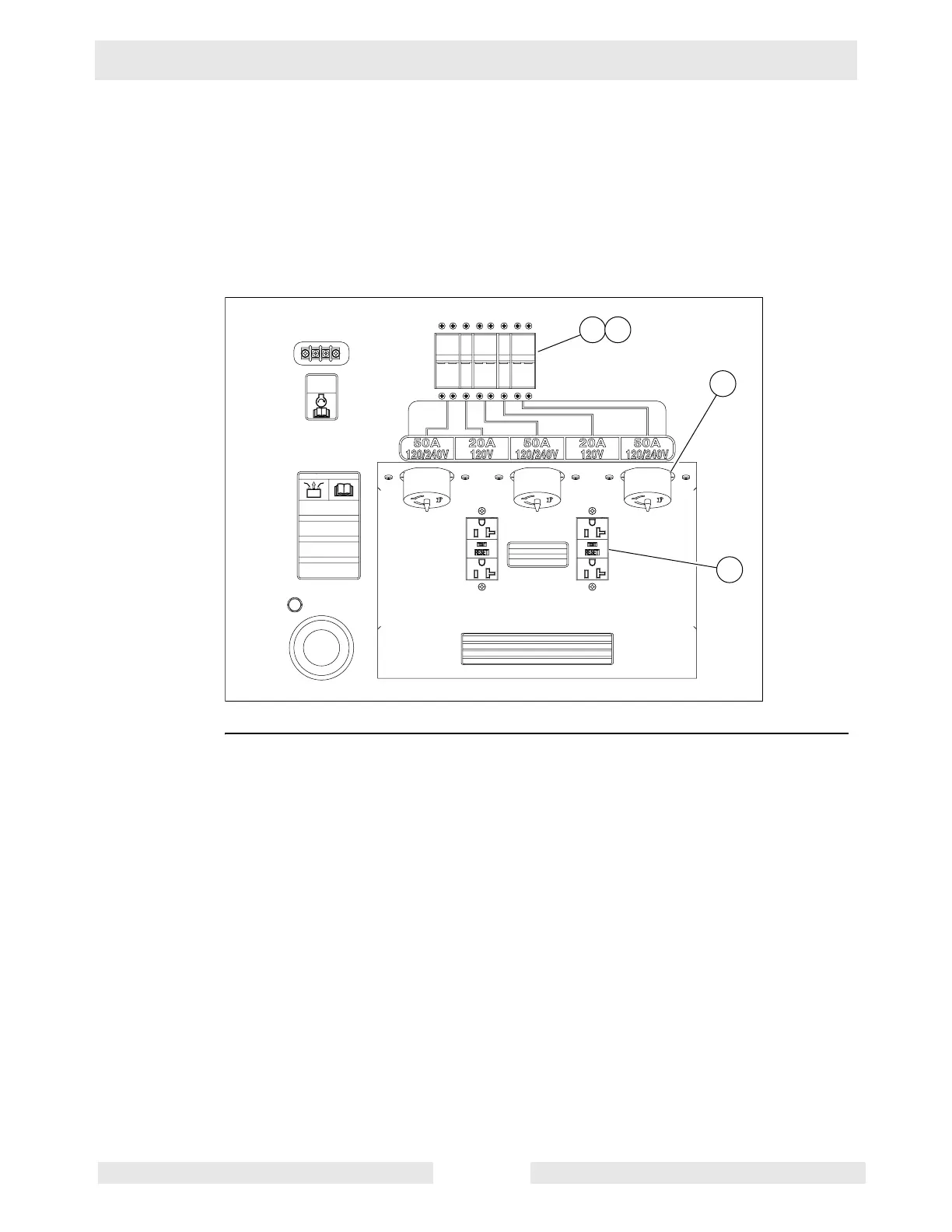

wc_gr005193
m
k l
n
