2.4 Generator monitoring
Generator information is displayed on the top line of the LCD panel and is scrolled
continuously while the generator is operating, to show the voltage, amperage and
frequency of each phase.
Note: To prevent the display from scrolling, press the ENG HRS switch down.
Volts “V”—Displays the AC output voltage being produced by the generator.
Phase “Ø”—Indicates which phase is currently being displayed.
Amps “A”—Displays the AC output amperage produced by the generator. If the
generator is operating at no-load, output amperage will display a 0.
Hertz “Hz”—Displays output frequency.

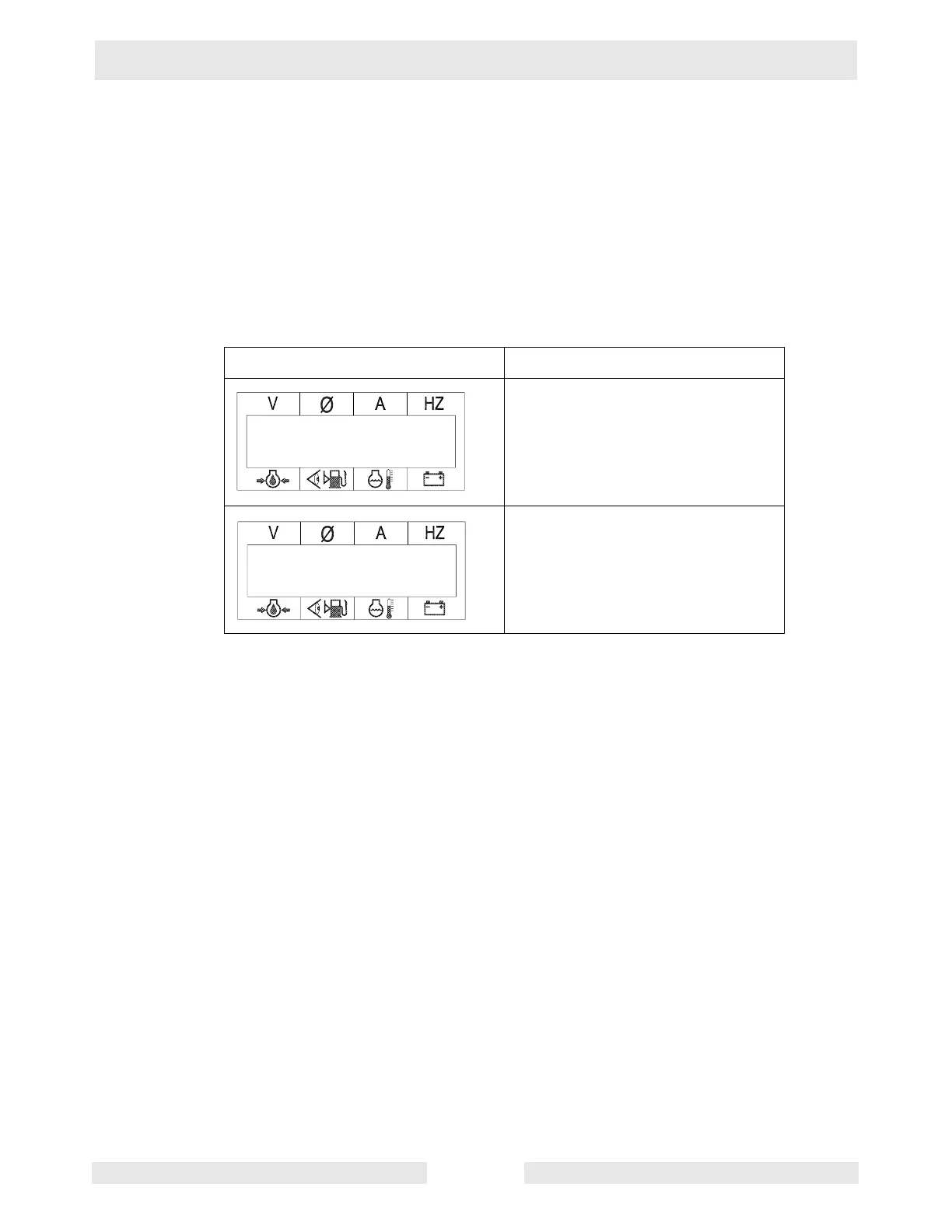

ECM Display Description
Sample display with engine running.
Sample display in “Auto” mode.
208 1 24 60
78 85% 175 14.3
UNIT IN AUTO
Ø 100% 85 13.2
